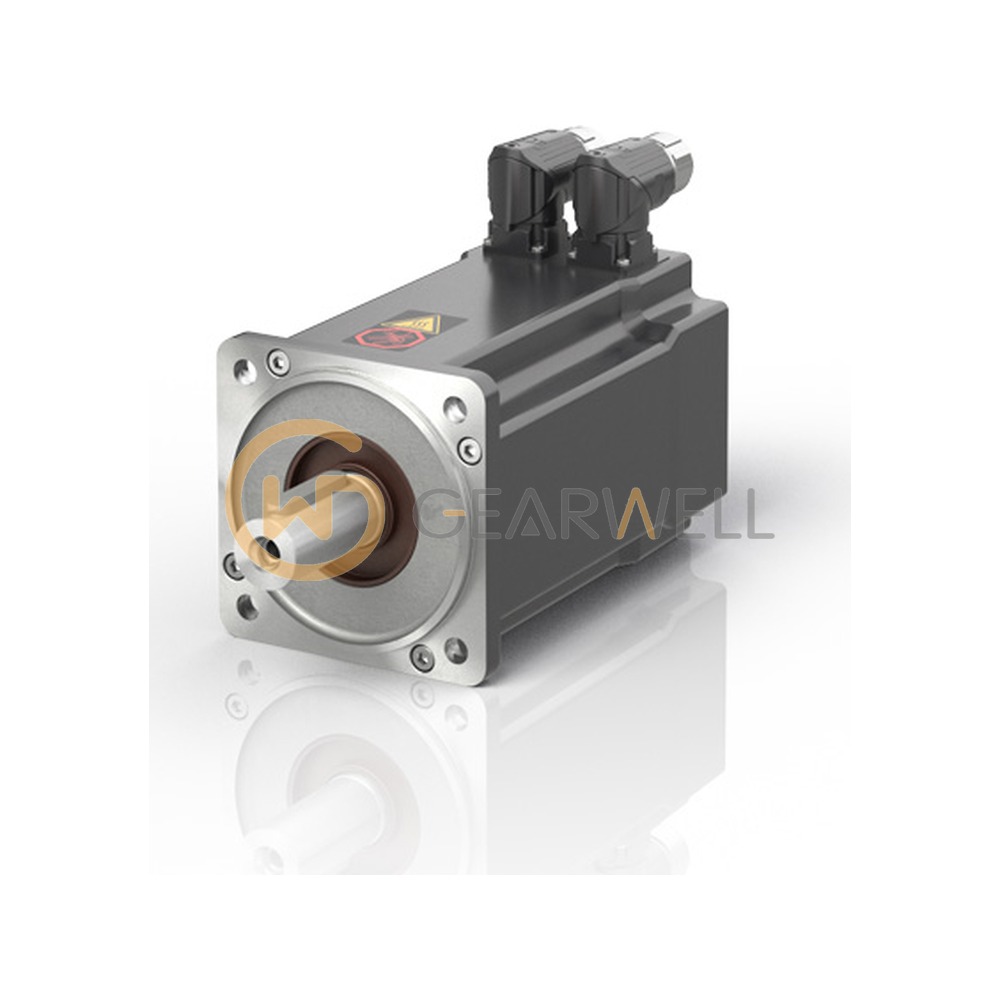

BECKHOFF AM8051-0G00-9000 AM8000 Synchronous Servomotor
- Brand
- BECKHOFF
- Model
- AM8051-0G00-9000
- GEARWELL SKU
- GWP-000011717
- Category
- Servo Systems
Key specifications
- Version
- 9 = flange and shaft dimensions as AM3x5x (AM805x)
- Flange size
- 5 = 104 mm (F5)
- Rated speed
- 5000 min-1
- Holding brake
- 0 = without holding brake
- Shaft version
- 0 = smooth shaft
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff AM8051-0G00-9000 is an AM8000 series synchronous servomotor of size AM8051 with a standstill torque of 6.30 Nm (M0) and flange size F5 (104 mm). Beckhoff shows the AM805x motors with One Cable Technology (OCT), with or without a fan. The suffix 0G00-9000 encodes the motor options, so please confirm the full order number and option code with us when you request a quote.
Technical reference
| Product name | BECKHOFF AM8051-0G00-9000 AM8000 Synchronous Servomotor |
|---|---|
| Brand | BECKHOFF |
| Model | AM8051-0G00-9000 |
| Category | Servo Systems |
| Version | 9 = flange and shaft dimensions as AM3x5x (AM805x) |
| Flange size | 5 = 104 mm (F5) |
| Rated speed | 5000 min-1 |
| Holding brake | 0 = without holding brake |
| Shaft version | 0 = smooth shaft |
| Voltage range | 100...480 V AC |
| Feedback system | 0 = resolver, two-pole |
| Standstill current | 4.75 A |
| Standstill torque (winding G) | 4.90 Nm |
