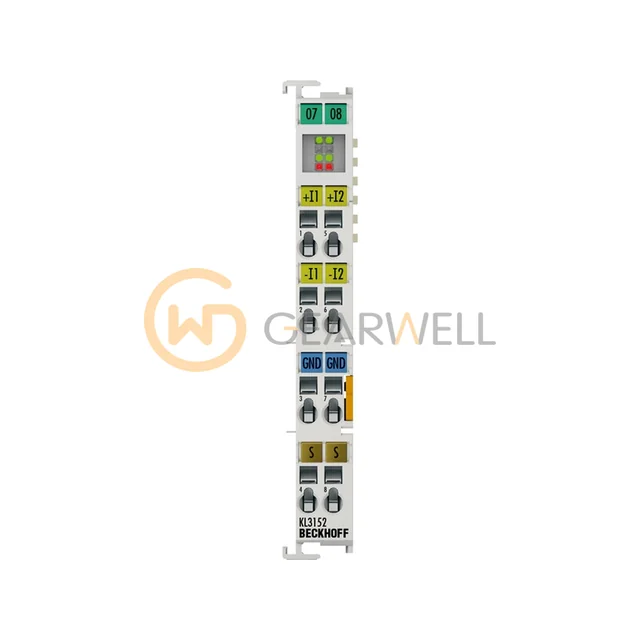

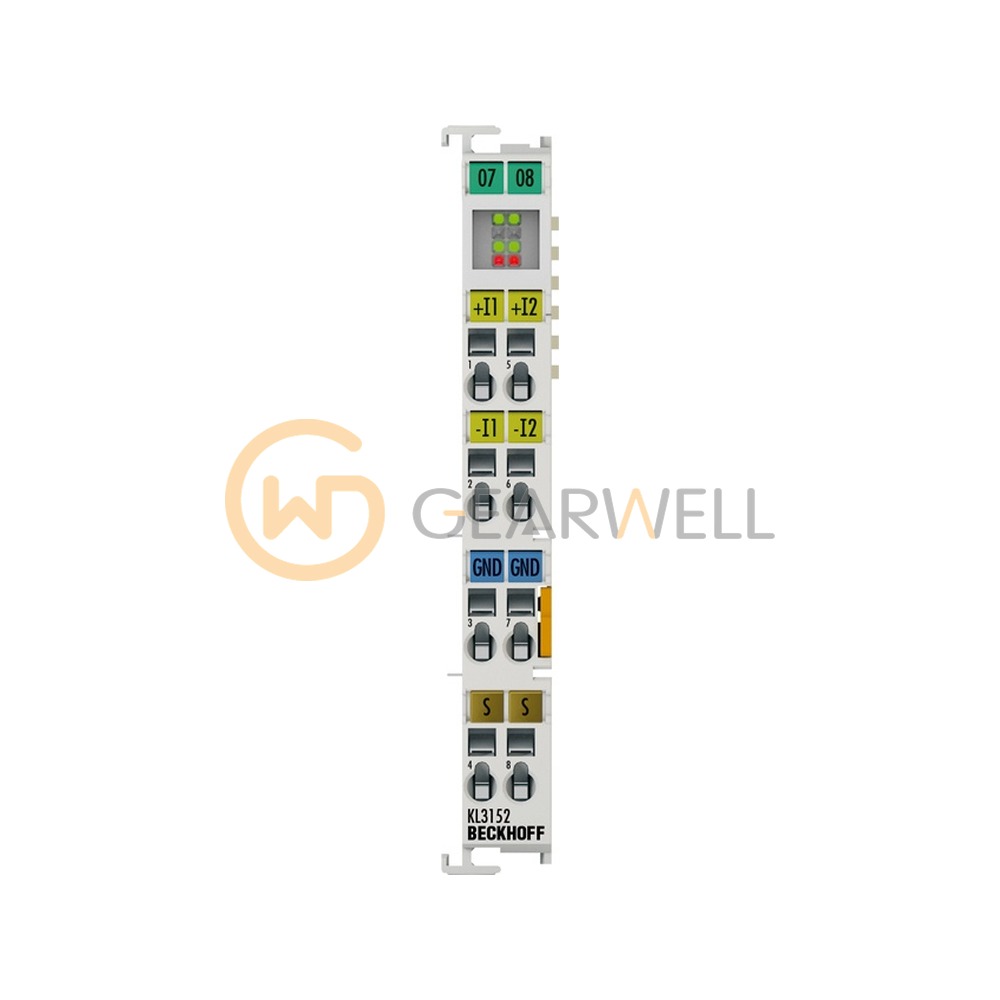

BECKHOFF KL3152 2-Channel Analog Input Bus Terminal
- Brand
- BECKHOFF
- Model
- KL3152
- GEARWELL SKU
- GWP-000007155
- Category
- PLCs & I/O
Key specifications
- Filter
- 50 Hz, configurable
- Technology
- differential input
- Power supply
- via the K-bus
- Signal current
- 4…20 mA
- Conversion time
- 140 ms, configurable
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL3152 is a 2-channel analog input Bus Terminal (K-bus) for 4 to 20 mA differential signals, with 16-bit resolution and an error below ±0.05 % of full scale. It is a high-precision terminal with a 50 Hz filter and a default conversion time of 140 ms. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL3152 2-Channel Analog Input Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL3152 |
| Category | PLCs & I/O |
| Filter | 50 Hz, configurable |
| Technology | differential input |
| Power supply | via the K-bus |
| Signal current | 4…20 mA |
| Conversion time | 140 ms, configurable |
| Number of inputs | 2 |
| Internal resistance | typ. 100 Ω shunt |
| Common mode voltage U CM | max. ±10 V |
