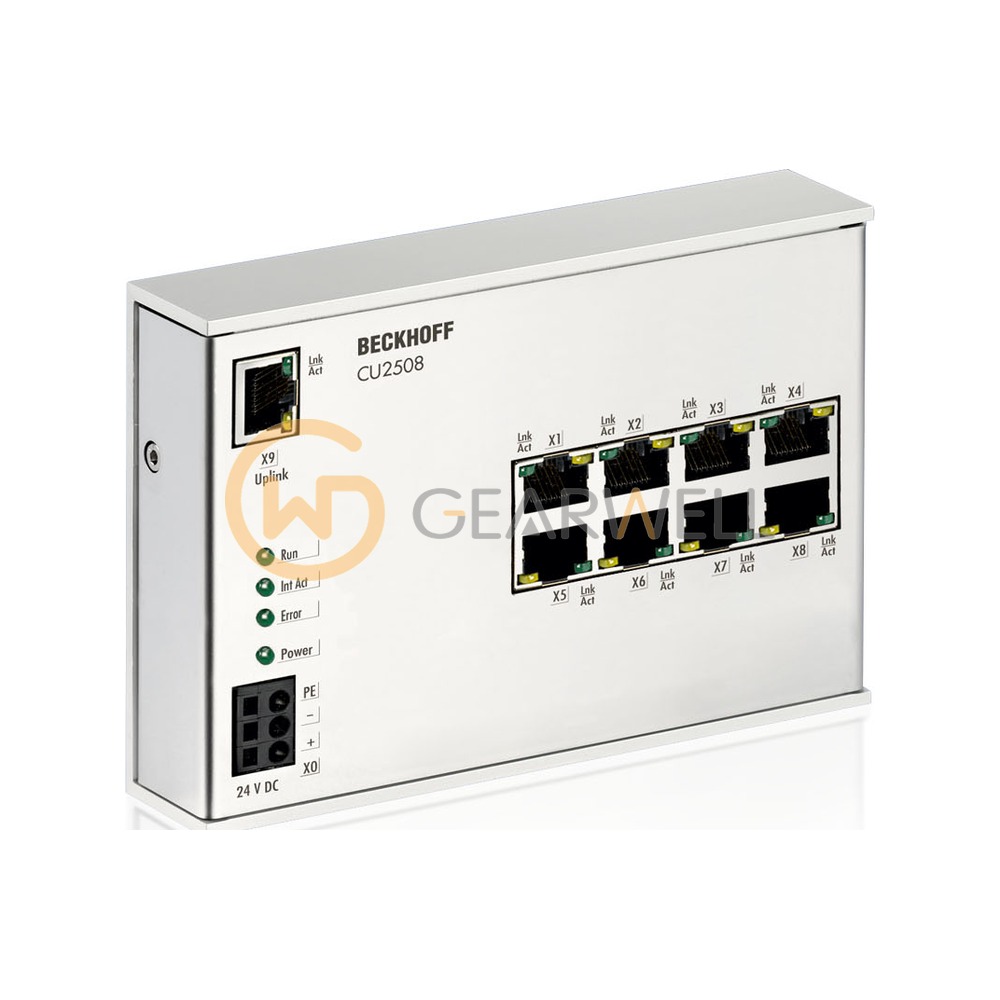

BECKHOFF CU2508 8-Port Ethernet Port Multiplier
- Brand
- BECKHOFF
- Model
- CU2508
- GEARWELL SKU
- GWP-000011719
- Category
- Industrial Communication
Key specifications
- Protocol
- Ethernet TCP/IP; real-time protocols EtherCAT, PROFINET and others (driver dependent)
- Interface
- RJ45
- Power supply
- 24 (18...30) V DC, 250 mA
- Transmission rate
- 100BASE-TX and 1 Gbit/s
- Dimensions (W x H x D)
- approx. 146 x 100 x 30 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff CU2508 is an 8-port Ethernet port multiplier with RJ45 ports at 100 Mbit/s and 1 Gbit/s, connected to the control PC via a Gigabit uplink, so the PC can serve up to eight Ethernet networks, including real-time protocols such as EtherCAT or PROFINET (depending on driver). It runs on 24 V DC (18 to 30 V). Check the full order number, including any suffix, on the unit when requesting a quote.
Technical reference
| Product name | BECKHOFF CU2508 8-Port Ethernet Port Multiplier |
|---|---|
| Brand | BECKHOFF |
| Model | CU2508 |
| Category | Industrial Communication |
| Protocol | Ethernet TCP/IP; real-time protocols EtherCAT, PROFINET and others (driver dependent) |
| Interface | RJ45 |
| Power supply | 24 (18...30) V DC, 250 mA |
| Transmission rate | 100BASE-TX and 1 Gbit/s |
| Dimensions (W x H x D) | approx. 146 x 100 x 30 mm |
| Operating temperature | -25...+55 °C |
