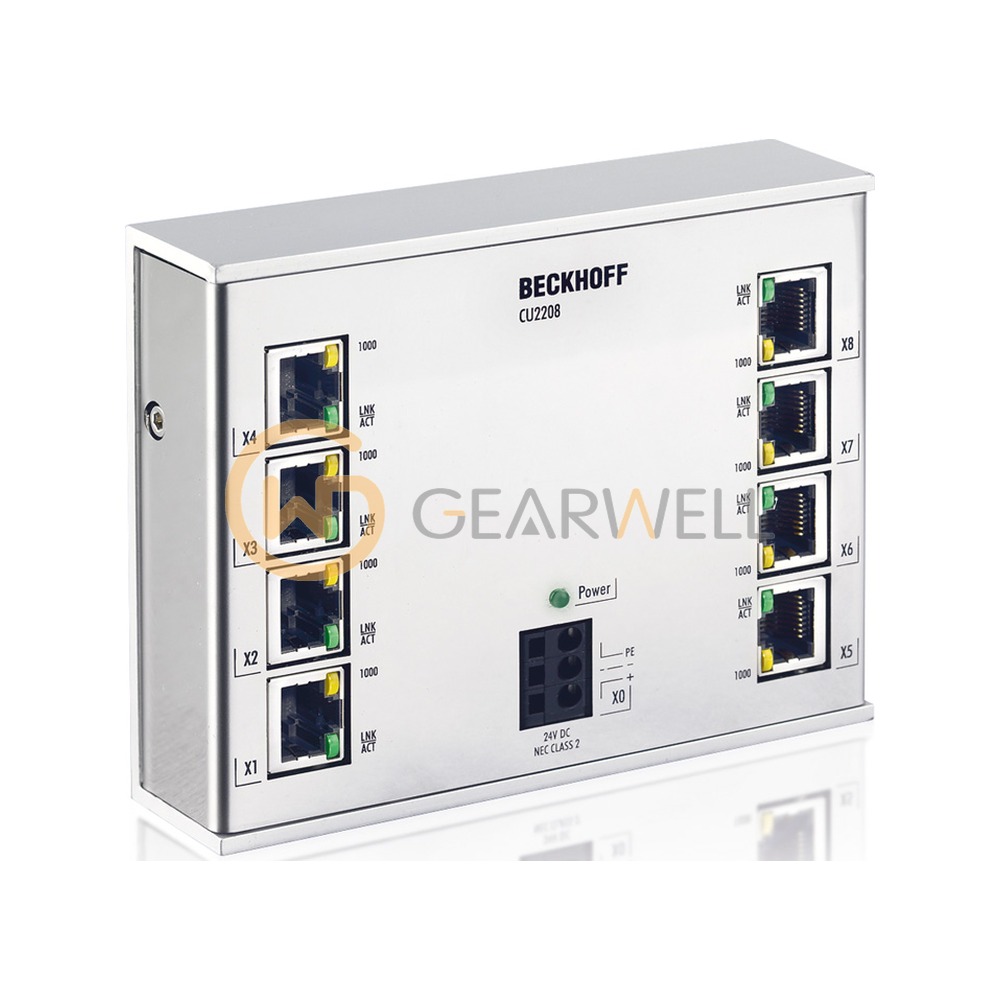

BECKHOFF CU2208 CU22xx 8-Port Gigabit Ethernet Switch
- Brand
- BECKHOFF
- Model
- CU2208
- GEARWELL SKU
- GWP-000011718
- Category
- Industrial Communication
Key specifications
- Ports
- 8 x RJ45, 10BASE-T/100BASE-TX/1000BASE-T
- Switching
- store and forward, unmanaged
- Power supply
- 24 (18...30) V DC
- Protection rating
- IP20
- Current consumption
- typ. 180 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff CU2208 is an unmanaged 8-port Gigabit Ethernet switch for 10/100/1,000 Mbit/s with RJ45 ports and store-and-forward switching. It runs on 24 V DC (18 to 30 V) at typically 180 mA. Check the full order number, including any suffix, on the unit when requesting a quote.
Technical reference
| Product name | BECKHOFF CU2208 CU22xx 8-Port Gigabit Ethernet Switch |
|---|---|
| Brand | BECKHOFF |
| Model | CU2208 |
| Category | Industrial Communication |
| Ports | 8 x RJ45, 10BASE-T/100BASE-TX/1000BASE-T |
| Switching | store and forward, unmanaged |
| Power supply | 24 (18...30) V DC |
| Protection rating | IP20 |
| Current consumption | typ. 180 mA |
| Dimensions (W x H x D) | 122 x 100 x 30 mm |
| Operating temperature | 0...55 °C |
