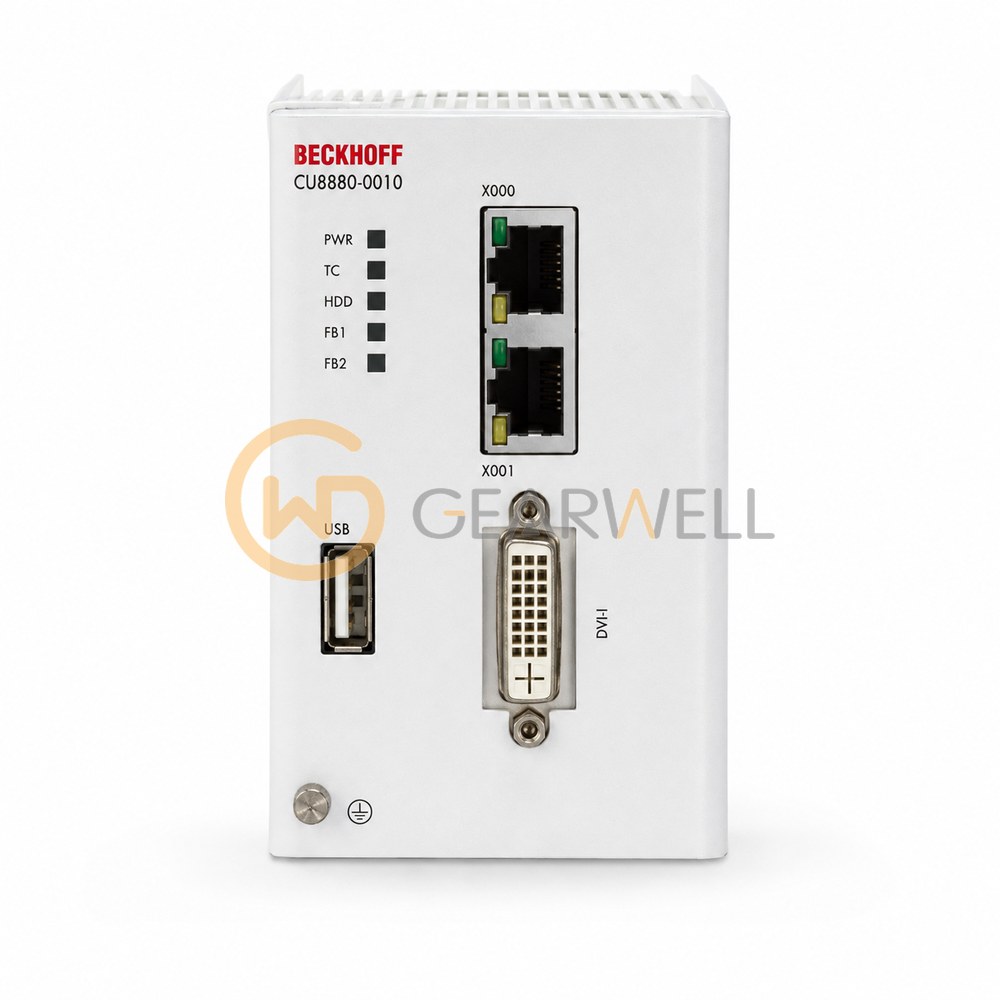

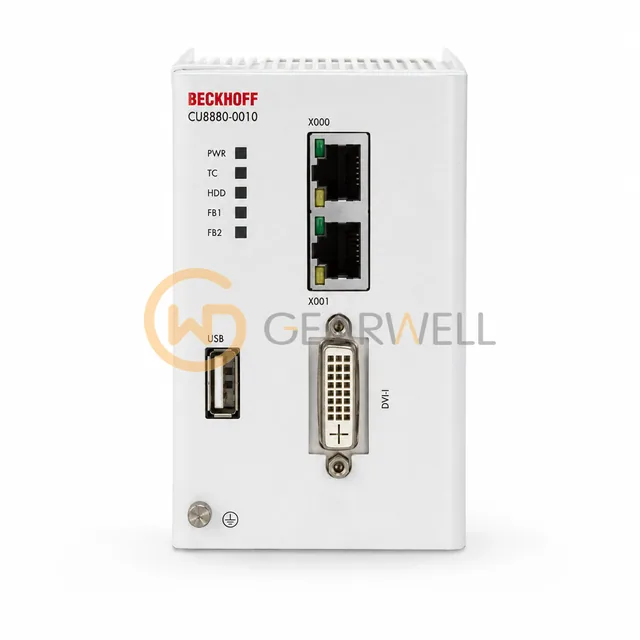

BECKHOFF CU8880-0010 Ethernet controller with USB input
- Brand
- BECKHOFF
- Model
- CU8880-0010
- GEARWELL SKU
- GWP-000004206
- Category
- Industrial Automation Parts
Key specifications
- Mounting
- DIN rail
- Dimensions
- 34 × 98 × 77 mm
- Interfaces
- USB 2.0 Type-B input; 10/100BASE-T RJ45 Ethernet
- Power supply
- Via USB
- Product type
- Ethernet controller with USB input
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff CU8880-0010 is an Ethernet controller with a USB input in a plastic housing for DIN rail mounting, with one USB 2.0 input (USB-B socket) and one 10/100BASE-T Ethernet port (RJ45). It is powered over USB and comes with a 1 m USB-A to USB-B cable; drivers are available for Windows XP Professional, Windows Embedded Standard 2009, Windows CE 6, Windows Embedded Compact 7, Windows 7/10 and TwinCAT/BSD. Beckhoff notes that it is not suitable for real-time Ethernet or EtherCAT. The housing measures 34 x 98 x 77 mm and is rated IP20 for 0 to 55 °C. Check the full order number, including any suffix, on the device when requesting a quote.
Technical reference
| Product name | BECKHOFF CU8880-0010 Ethernet controller with USB input |
|---|---|
| Brand | BECKHOFF |
| Model | CU8880-0010 |
| Category | Industrial Automation Parts |
| Mounting | DIN rail |
| Dimensions | 34 × 98 × 77 mm |
| Interfaces | USB 2.0 Type-B input; 10/100BASE-T RJ45 Ethernet |
| Power supply | Via USB |
| Product type | Ethernet controller with USB input |
| Connector cable | 1 m USB 2.0 Type-A to Type-B |
| Protection rating | IP20 |
| Operating temperature | 0–55 °C |
