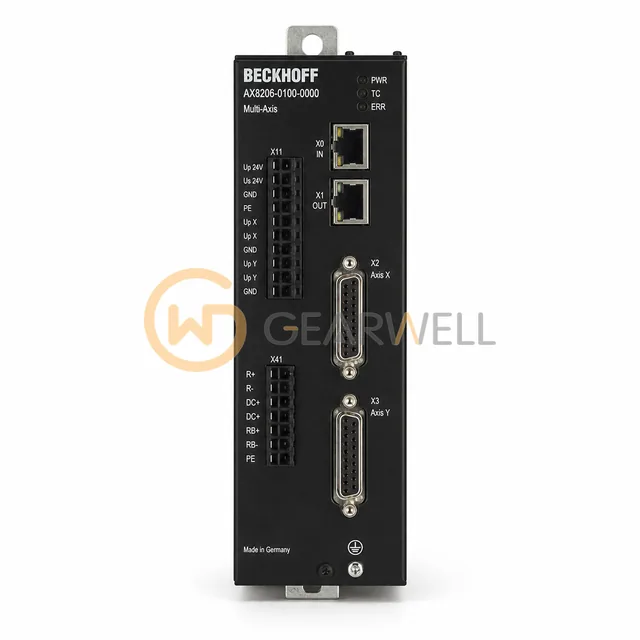

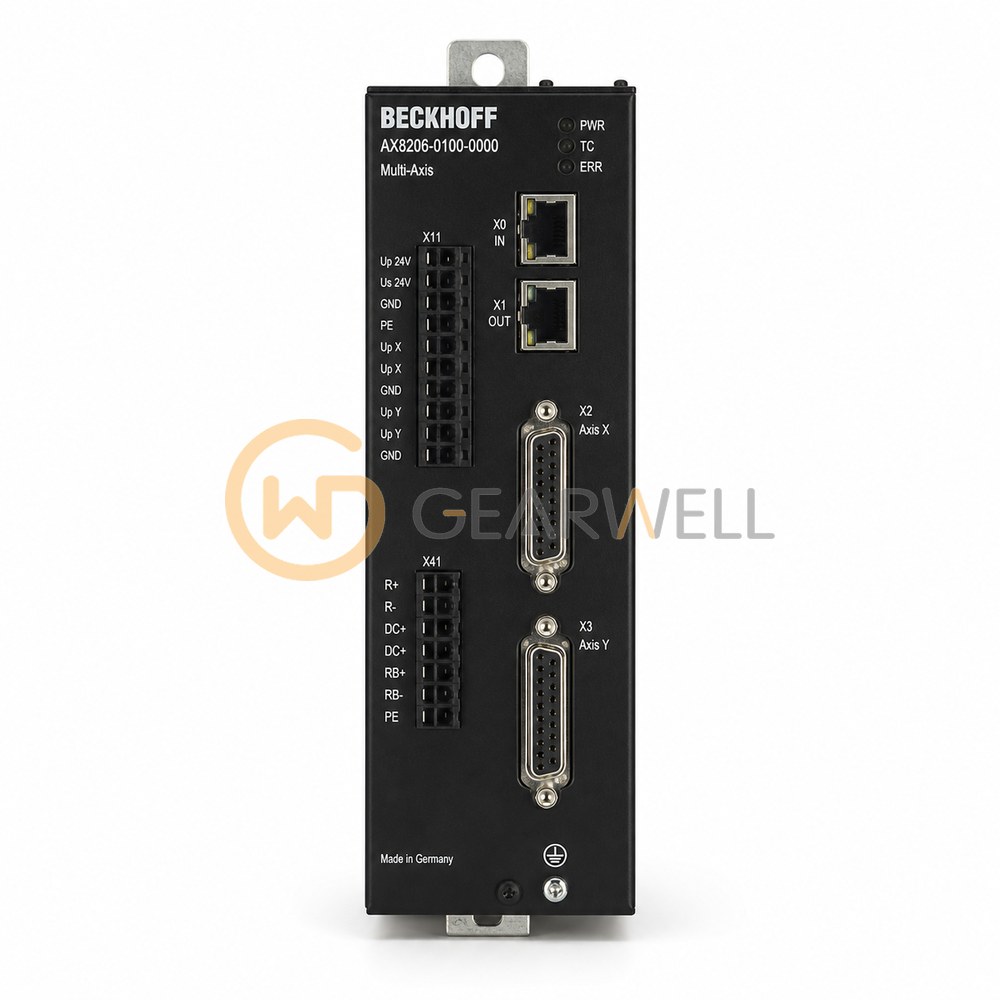

BECKHOFF AX8206-0100-0000 Dual-axis module

Product overview

Beckhoff AX8206-0100-0000 is a dual-axis module with TwinSAFE Logic for the AX8000 multi-axis servo system, for a DC link voltage of up to 848 V DC, with a rated output current of 6 A and a peak output current of 20 A per channel. It supports OCT and EnDat 3 feedback, communicates over EtherCAT with the CiA402 drive profile, and provides Safe Torque Off (STO) and Safe Stop 1 (SS1) via local TwinSAFE Logic, FSoE or hard-wired safe inputs, rated to EN ISO 13849-1 Cat 4, PL e, EN 61508 SIL 3 and EN 62061 SIL CL3. The integrated AX-Bridge connects DC link, 24 V DC control voltage and EtherCAT to the neighbouring modules without tools. It is 60 mm wide, 230 mm high and 192 mm deep, rated IP20, for 0 to 40 °C (up to 55 °C with power reduction). Check the full order number, including any suffix, on the device when requesting a quote.
