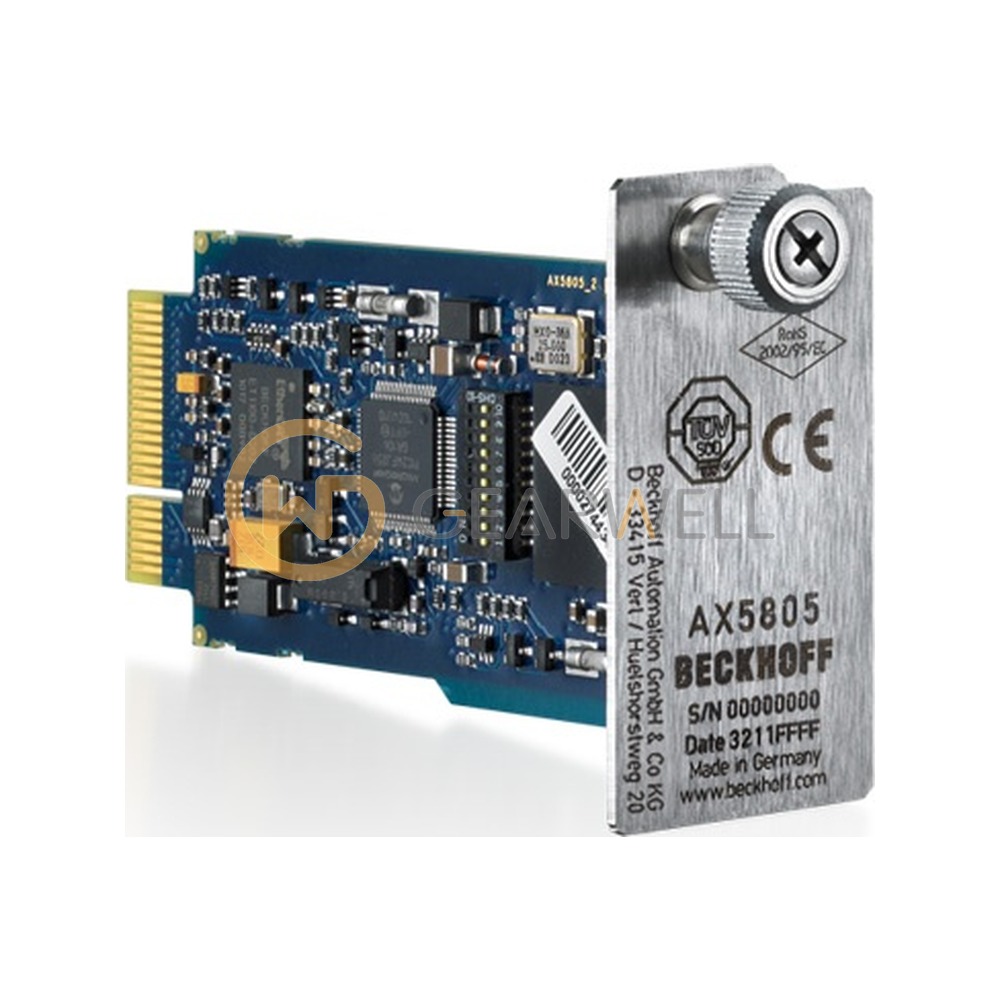

BECKHOFF AX5805 TwinSAFE Drive Option Card
- Brand
- BECKHOFF
- Model
- AX5805
- GEARWELL SKU
- GWP-000007117
- Category
- Servo Systems
Key specifications
- Function
- TwinSAFE option card
- Drive profile
- FSoE
- Realization STO
- via FSoE
- Safety standard
- EN ISO 13849-1:2015 (Cat. 4, PL e) and IEC 61508:2010 (SIL 3)
- Safe position functions
- Safely Limited Position (SLP), Safe CAM (SCA), Safely Limited Increment (SLI)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff AX5805 is a TwinSAFE option card for AX5000 servo drives, providing safe drive functions via Safety over EtherCAT (FSoE), including STO, SS1, SS2, SOS, safe speed, position and direction functions. It is certified to EN ISO 13849-1 Cat. 4/PL e and IEC 61508 SIL 3. Check the full order number and the drive's TwinSAFE configuration when requesting a quote.
Technical reference
| Product name | BECKHOFF AX5805 TwinSAFE Drive Option Card |
|---|---|
| Brand | BECKHOFF |
| Model | AX5805 |
| Category | Servo Systems |
| Function | TwinSAFE option card |
| Drive profile | FSoE |
| Realization STO | via FSoE |
| Safety standard | EN ISO 13849-1:2015 (Cat. 4, PL e) and IEC 61508:2010 (SIL 3) |
| Safe position functions | Safely Limited Position (SLP), Safe CAM (SCA), Safely Limited Increment (SLI) |
| Safe acceleration functions | Safe Maximum Acceleration (SMA), Safe Acceleration Range (SAR) |
| Ambient temperature (operation) | 0…50 °C |
| Safe rotating direction functions | Safe Direction positive (SDIp), Safe Direction negative (SDIn) |
