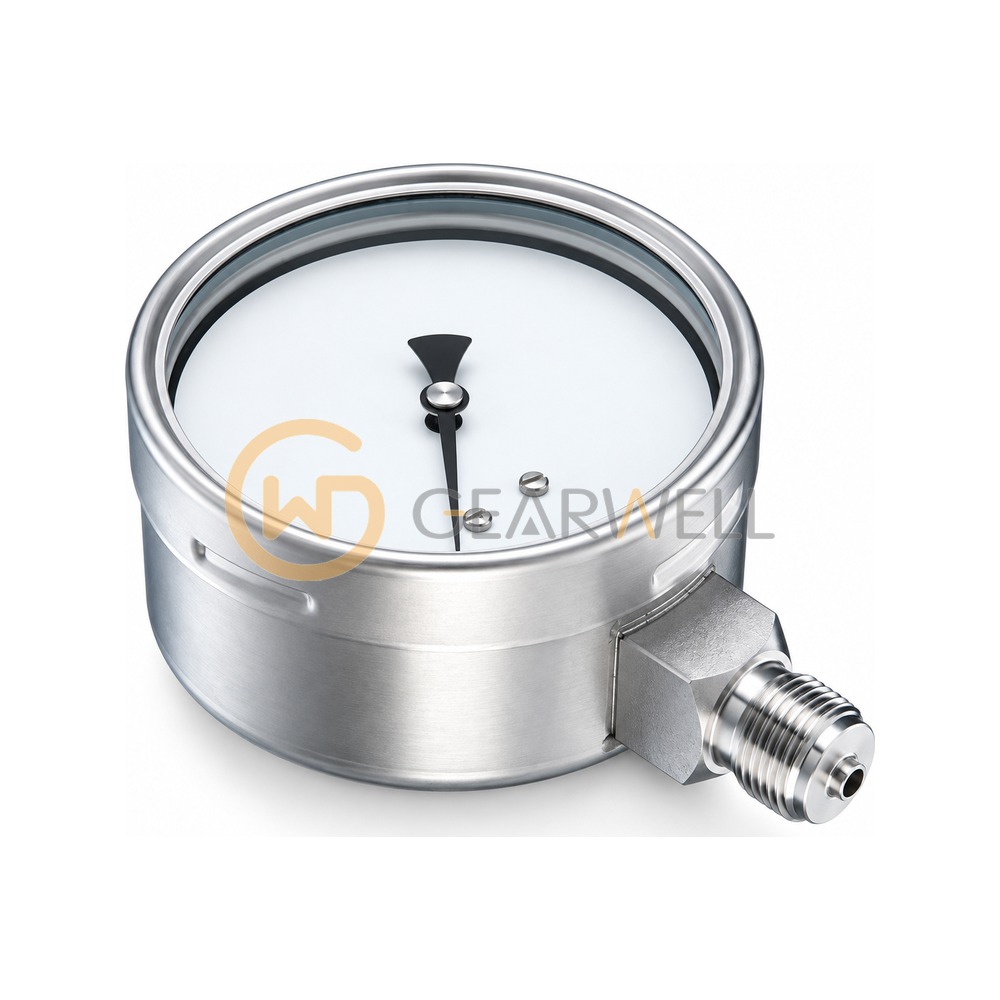

BAUMER MEX5-D30.D12 MEX5 Stainless Steel Pressure Gauge, 0-60 kPa
- Brand
- BAUMER
- Model
- MEX5-D30.D12
- GEARWELL SKU
- GWP-000015171
- Category
- Pressure, Flow & Temperature
Key specifications
- Case
- Stainless steel 1.4301 (AISI 304)
- Accuracy
- Class 1 (EN 837-1)
- Nominal size
- 100 mm
- Wetted parts
- Stainless steel 1.4404 (AISI 316L)
- Liquid filling
- Dry (0)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BAUMER MEX5-D30.D12 MEX5 Stainless Steel Pressure Gauge, 0-60 kPa |
|---|---|
| Brand | BAUMER |
| Model | MEX5-D30.D12 |
| Category | Pressure, Flow & Temperature |
| Case | Stainless steel 1.4301 (AISI 304) |
| Accuracy | Class 1 (EN 837-1) |
| Nominal size | 100 mm |
| Wetted parts | Stainless steel 1.4404 (AISI 316L) |
| Liquid filling | Dry (0) |
| Measuring range | 0 ... 60 kPa |
| Type designation | MEX5-D30.D12 |
| Type of mounting | Bottom connection (D) |
| Protection rating | IP 65 |
| Process connection | G 1/2 |
