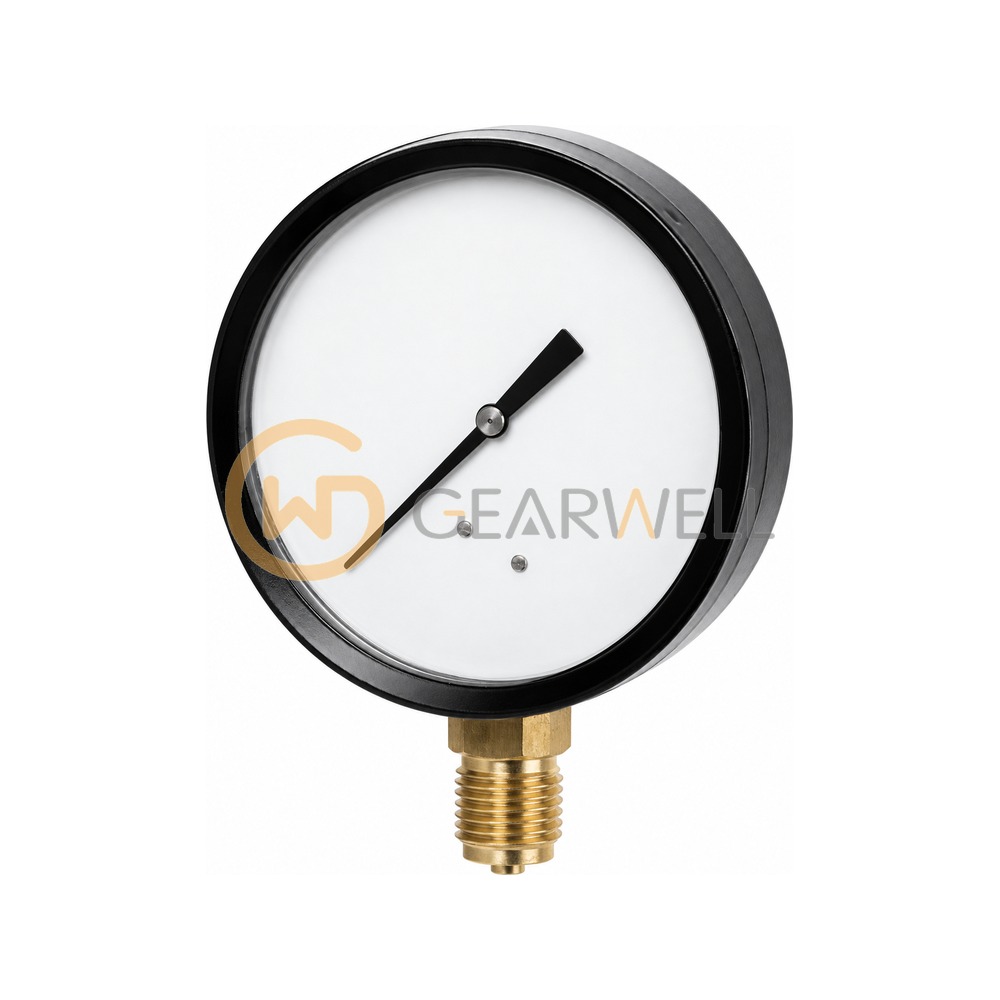

BAUMER MAT3D20B22 MAT Pressure Gauge, 63 mm, 0 ... 10 bar
- Brand
- BAUMER
- Model
- MAT3D20B22
- GEARWELL SKU
- GWP-000015170
- Category
- Pressure, Flow & Temperature
Key specifications
- Case
- Black painted steel
- Accuracy
- ± 2.5 % of full scale
- Nominal size
- 63 mm
- Product line
- Bourdon pressure gauges (Baumer group)
- Damping fluid
- Without damping fluid
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BAUMER MAT3D20B22 MAT Pressure Gauge, 63 mm, 0 ... 10 bar |
|---|---|
| Brand | BAUMER |
| Model | MAT3D20B22 |
| Category | Pressure, Flow & Temperature |
| Case | Black painted steel |
| Accuracy | ± 2.5 % of full scale |
| Nominal size | 63 mm |
| Product line | Bourdon pressure gauges (Baumer group) |
| Damping fluid | Without damping fluid |
| Measuring range | 0 ... 10 bar |
| Sensing element | Cupreous metal Bourdon tube |
| Type designation | MAT3D20B22 |
| Type of mounting | Bottom connection (D) |
| Process connection | G 1/4 |
| Degree of protection | IP 32 |
