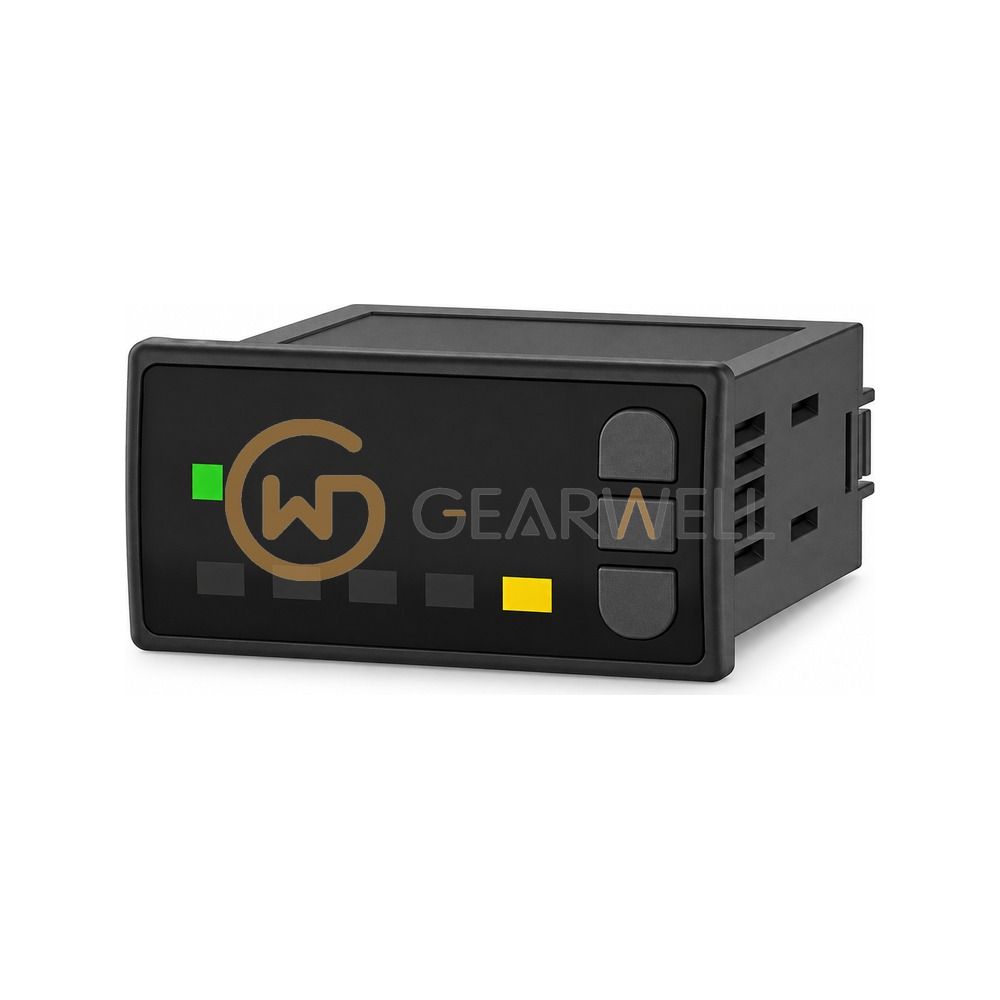

AUTONICS TC3YF-34R TC Series Refrigeration Temperature Controller
- Brand
- AUTONICS
- Model
- TC3YF-34R
- GEARWELL SKU
- GWP-000016480
- Category
- Pressure, Flow & Temperature
Key specifications
- Input range
- -40.0 to 99.9℃ (-40.0 to 212℉)
- Power voltage
- 100-240VAC~ 50/60Hz
- Control method
- Cooling
- Control output
- Compressor, defrost, evaporator-fan: relay (250VAC~ 5A)
- Display method
- 3-digit 7-segment LED
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | AUTONICS TC3YF-34R TC Series Refrigeration Temperature Controller |
|---|---|
| Brand | AUTONICS |
| Model | TC3YF-34R |
| Category | Pressure, Flow & Temperature |
| Input range | -40.0 to 99.9℃ (-40.0 to 212℉) |
| Power voltage | 100-240VAC~ 50/60Hz |
| Control method | Cooling |
| Control output | Compressor, defrost, evaporator-fan: relay (250VAC~ 5A) |
| Display method | 3-digit 7-segment LED |
| Sampling cycle | 500ms |
| Input specification | Thermistor (NTC) 5kΩ |
| Protection structure | IP65 (front panel) |
