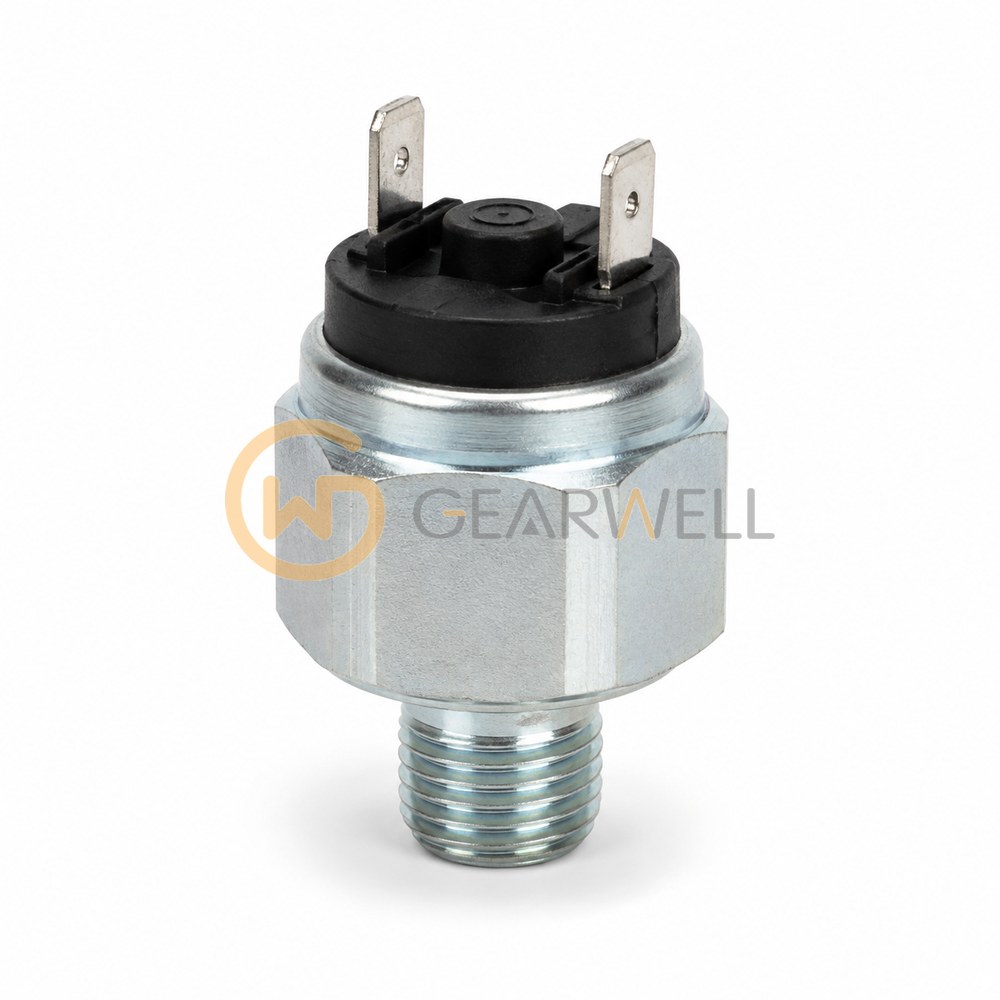

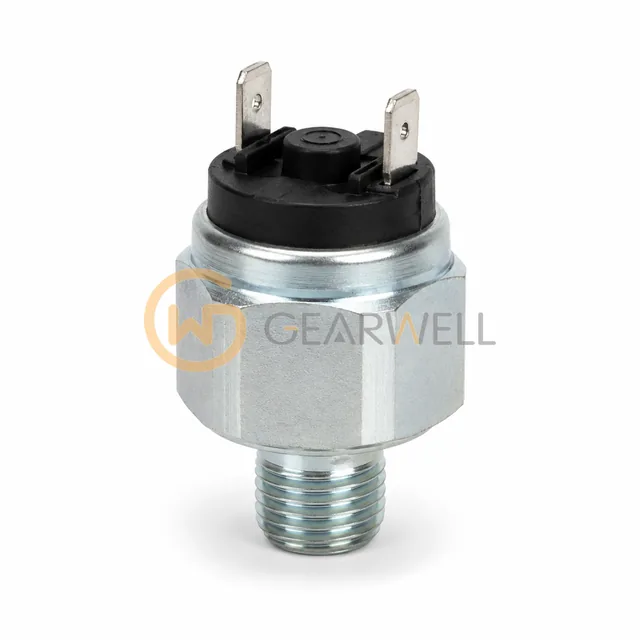

SUCO 0166-40803-1-031 NC Pressure Switch, 1–10 bar, G1/4, NBR
- Brand
- SUCO
- Model
- 0166-40803-1-031
- GEARWELL SKU
- GWP-000001848
- Category
- Industrial Automation Parts
Key specifications
- Product type
- Mechanical diaphragm pressure switch
- Resistive-load current and switching power
- 10 mA–4 A (DC12/AC12); switching power limited to 100 W / 100 VA
- Rated working voltage
- 10–42 V AC/DC
- Diaphragm seal material
- NBR
- Switching-pressure adjustment range
- 1–10 bar (±0.5 bar at room temperature)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SUCO 0166-40803-1-031 NC Pressure Switch, 1–10 bar, G1/4, NBR |
|---|---|
| Brand | SUCO |
| Model | 0166-40803-1-031 |
| Category | Industrial Automation Parts |
| Product type | Mechanical diaphragm pressure switch |
| Resistive-load current and switching power | 10 mA–4 A (DC12/AC12); switching power limited to 100 W / 100 VA |
| Rated working voltage | 10–42 V AC/DC |
| Diaphragm seal material | NBR |
| Switching-pressure adjustment range | 1–10 bar (±0.5 bar at room temperature) |
| Contact function | Normally closed (NC) |
| Housing material | Zinc-plated steel (CrVI-free) |
| Static overpressure safety | Up to 300 bar static; dynamic value 30–50% lower. Hydraulic/pneumatic section only; not a continuous working-pressure rating. |
| Protection rating | IP65 with socket device; exposed terminals IP00 |
| Process connection | G1/4 male |
| Manufacturer | SUCO |
| Electrical connection | Galvanically tin-plated AMP 6.3 × 0.8 mm spade terminals |
| NBR diaphragm seal temperature resistance | -40 to +100 °C |
