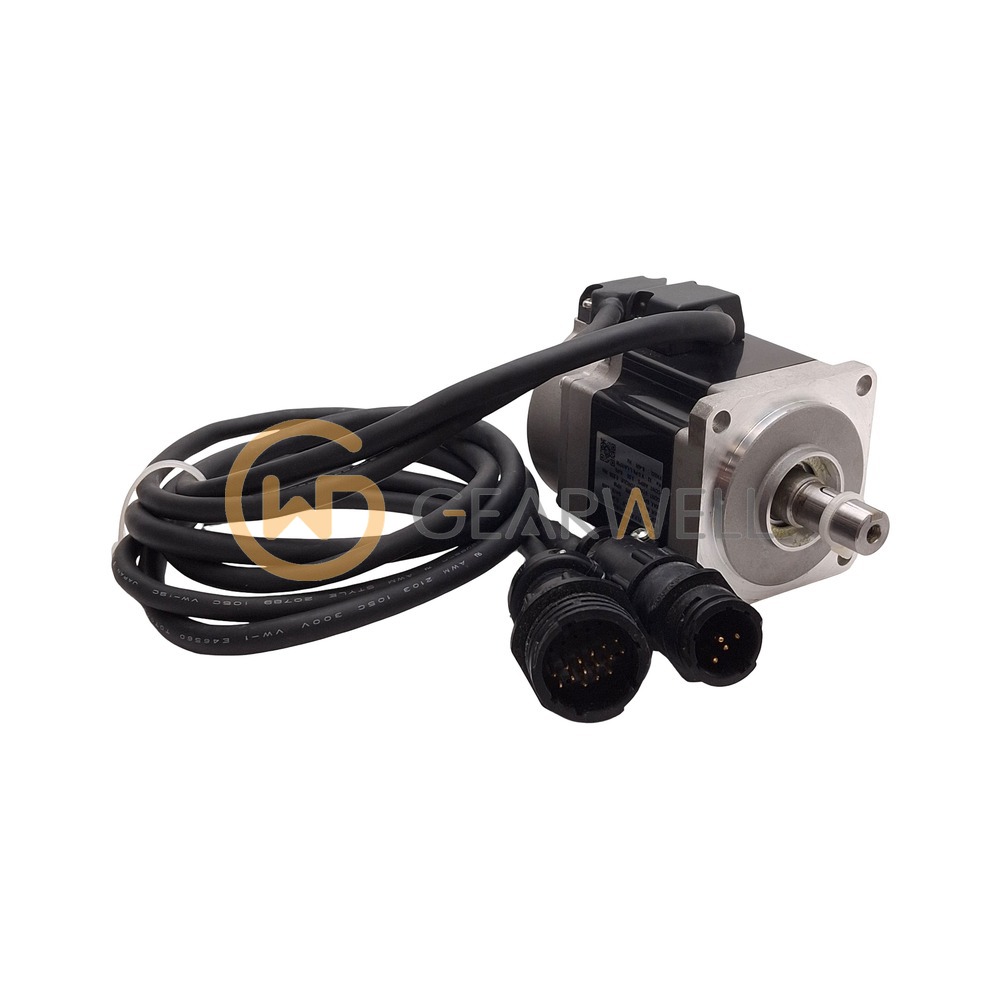

Allen-Bradley TLY-A220T-HJ62AA Rotary Servo Motor
- Brand
- Allen-Bradley
- Model
- TLY-A220T-HJ62AA
- GEARWELL SKU
- GWP-000002954
- Category
- Servo Systems
Key specifications
- Speed
- 6000 rpm
- Feedback
- Incremental encoder (2000 lines/revolution)
- Frame size
- 70 mm
- Holding brake
- None
- Voltage rating
- 230 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley TLY-A220T-HJ62AA is a Kinetix TLY compact servo motor (TLY-A220) for the 200V class with a 70 mm frame, IP65 housing, shaft key and metric flange. Rated speed is 5000 rpm and maximum speed 6000 rpm; continuous stall torque is 0.836 N·m, peak stall torque 1.48 N·m and rated output 0.35 kW. It has a 2000-line incremental encoder, circular connectors on 1 m cables and no brake.
Technical reference
| Product name | Allen-Bradley TLY-A220T-HJ62AA Rotary Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | TLY-A220T-HJ62AA |
| Category | Servo Systems |
| Speed | 6000 rpm |
| Feedback | Incremental encoder (2000 lines/revolution) |
| Frame size | 70 mm |
| Holding brake | None |
| Voltage rating | 230 V AC |
