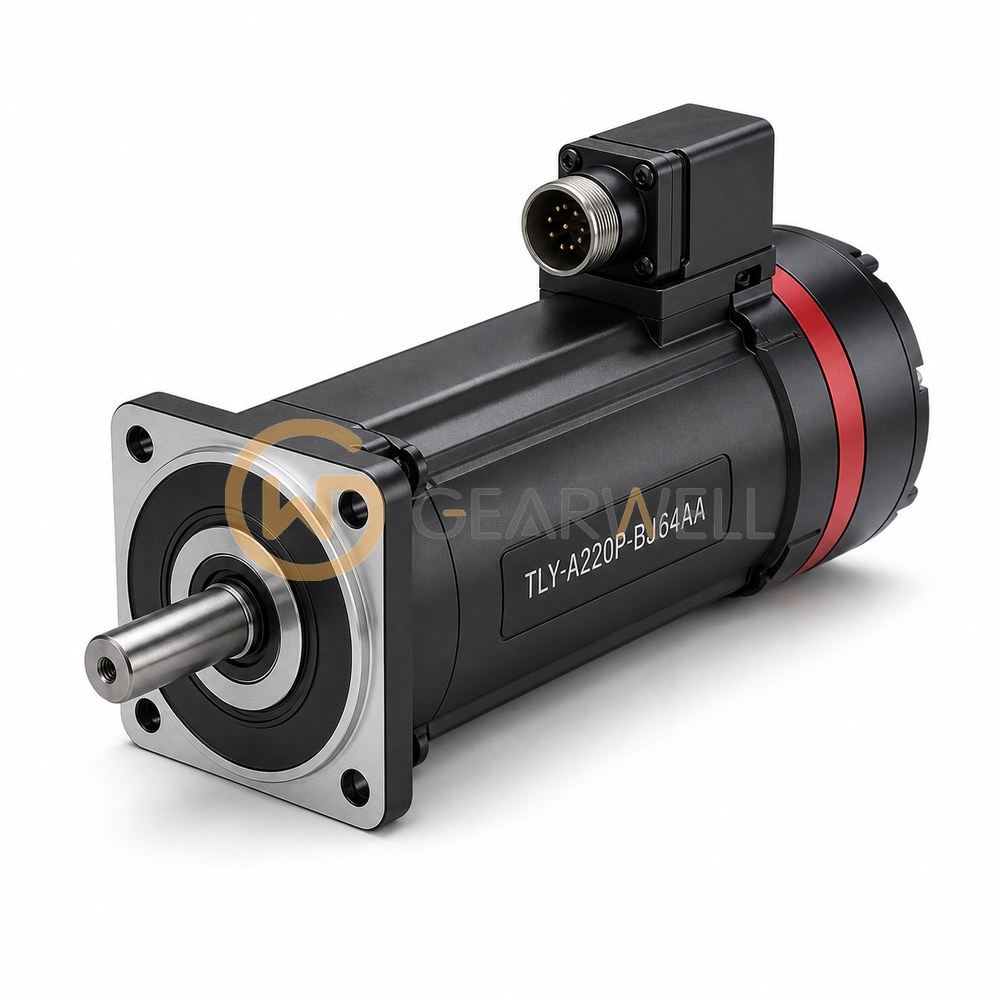

Allen-Bradley TLY-A220P-BJ64AA Servo Motor
- Brand
- Allen-Bradley
- Model
- TLY-A220P-BJ64AA
- GEARWELL SKU
- GWP-000002231
- Category
- Servo Systems
Key specifications
- Connectors
- Cables with circular
- Brake Option
- 24V DC Brake
- Torque Rating
- 0.757
- Factory Options
- Standard (Metric)
- Armature Voltage
- 230V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley TLY-A220P-BJ64AA is a Kinetix TLY compact servo motor (TLY-A220) for the 200V class with a 70 mm frame, IP65 housing, shaft key and metric flange. Rated speed is 5000 rpm; continuous stall torque is 0.757 N·m, peak stall torque 1.48 N·m and rated output 0.24 kW. It has a 17-bit multi-turn absolute encoder (battery-backed; single-turn without the battery), circular connectors on 1 m cables and a 24V DC holding brake.
Technical reference
| Product name | Allen-Bradley TLY-A220P-BJ64AA Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | TLY-A220P-BJ64AA |
| Category | Servo Systems |
| Connectors | Cables with circular |
| Brake Option | 24V DC Brake |
| Torque Rating | 0.757 |
| Factory Options | Standard (Metric) |
| Armature Voltage | 230V AC |
| Magnet Stack Length | 50.8mm (2.0in.) Magnet Stack |
