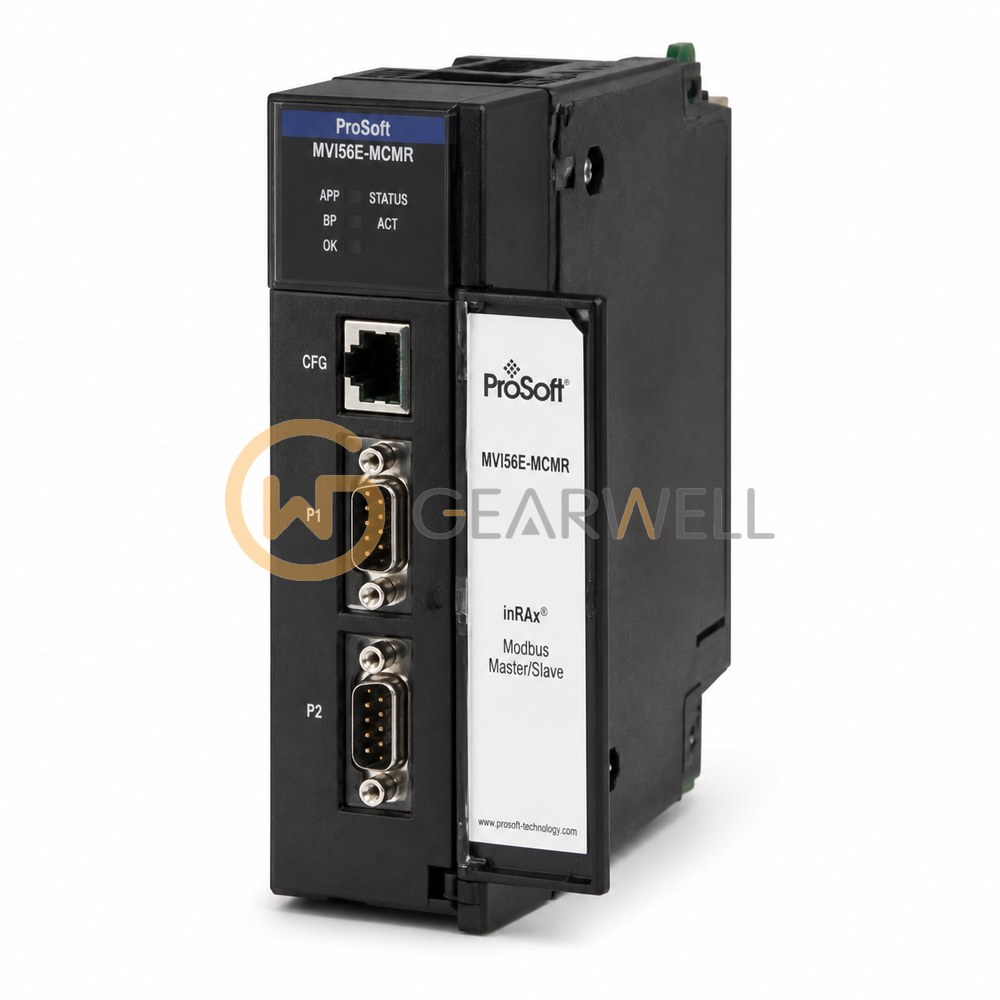

ProSoft Technology MVI56E-MCMR ControlLogix Modbus Communication Module
- Brand
- ProSoft Technology
- Model
- MVI56EMCMR
- GEARWELL SKU
- GWP-000003259
- Category
- PLCs & I/O
Key specifications
- Product type
- ControlLogix Modbus master/slave communication module with reduced I/O data block
- Serial application ports
- 2, independently configurable as Modbus master or slave
- Host platform
- Rockwell Automation 1756 ControlLogix; single-slot module
- User database
- Up to 5,000 16-bit registers
- Scheduled I/O data block
- 40 words
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | ProSoft Technology MVI56E-MCMR ControlLogix Modbus Communication Module |
|---|---|
| Brand | ProSoft Technology |
| Model | MVI56EMCMR |
| Category | PLCs & I/O |
| Product type | ControlLogix Modbus master/slave communication module with reduced I/O data block |
| Serial application ports | 2, independently configurable as Modbus master or slave |
| Host platform | Rockwell Automation 1756 ControlLogix; single-slot module |
| User database | Up to 5,000 16-bit registers |
| Scheduled I/O data block | 40 words |
| Manufacturer catalog number | MVI56E-MCMR |
| Serial baud rate | 110 baud–115.2 kbit/s |
| Serial protocols | Modbus RTU / ASCII |
| Backplane current load | 800 mA at 5 V DC; 3 mA at 24 V DC |
| Serial interfaces | RS-232, RS-422 or RS-485; jumper-selectable per port |
| Configuration Ethernet port | 10/100 Base-T, RJ45; configuration and diagnostics |
| Manufacturer | ProSoft Technology |
| Operating temperature | 0–60 °C |
