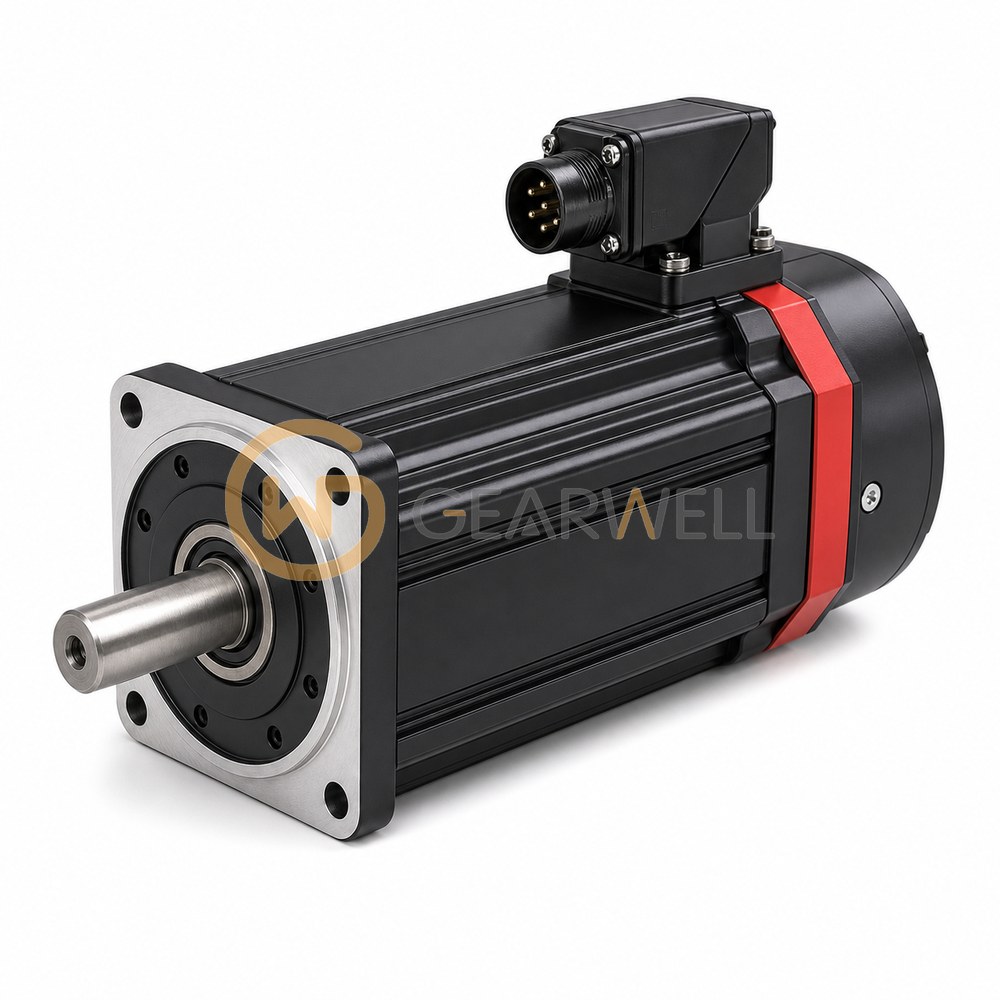

Allen-Bradley MPL-B540K-SK72AA Low-Inertia Servo Motor
- Brand
- Allen-Bradley
- Model
- MPL-B540K-SK72AA
- GEARWELL SKU
- GWP-000003064
- Category
- Servo Systems
Key specifications
- Type
- servo motor
- Holding brake
- No holding brake
- Shaft
- Keyless shaft extension; no shaft seal
- Voltage class
- 400 V class
- Feedback
- Single-turn absolute encoder, 1024 sin/cos, Hiperface
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley MPL-B540K-SK72AA is a Kinetix MPL low-inertia permanent magnet servo motor for 400 V-class drives in the 165 mm frame, rated 5.4 kW at 4000 rpm with 19.4 N·m continuous stall torque and 48.6 N·m peak stall torque. This version has a 1024 sin/cos absolute single-turn encoder (Hiperface), a plain shaft without key or shaft seal, a right-angle SpeedTec DIN connector that rotates through 180°, no holding brake and an IEC metric mounting flange. Rockwell designs the MPL range for high-performance motion systems such as packaging, converting, material handling and electronic assembly, with a high torque-to-size ratio and IP50 protection as standard without a shaft seal.
Technical reference
| Product name | Allen-Bradley MPL-B540K-SK72AA Low-Inertia Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-B540K-SK72AA |
| Category | Servo Systems |
| Type | servo motor |
| Holding brake | No holding brake |
| Shaft | Keyless shaft extension; no shaft seal |
| Voltage class | 400 V class |
| Feedback | Single-turn absolute encoder, 1024 sin/cos, Hiperface |
| Connectors | SpeedTec DIN right-angle connectors, 180-degree rotatable |
| Frame size | 165 mm |
| Mounting flange | IEC metric, free mounting holes (Type FF) |
| Motor voltage (catalog) | 460 V AC |
| Magnet Stack Length | 40 = 101.6 mm (4.0 in.) |
