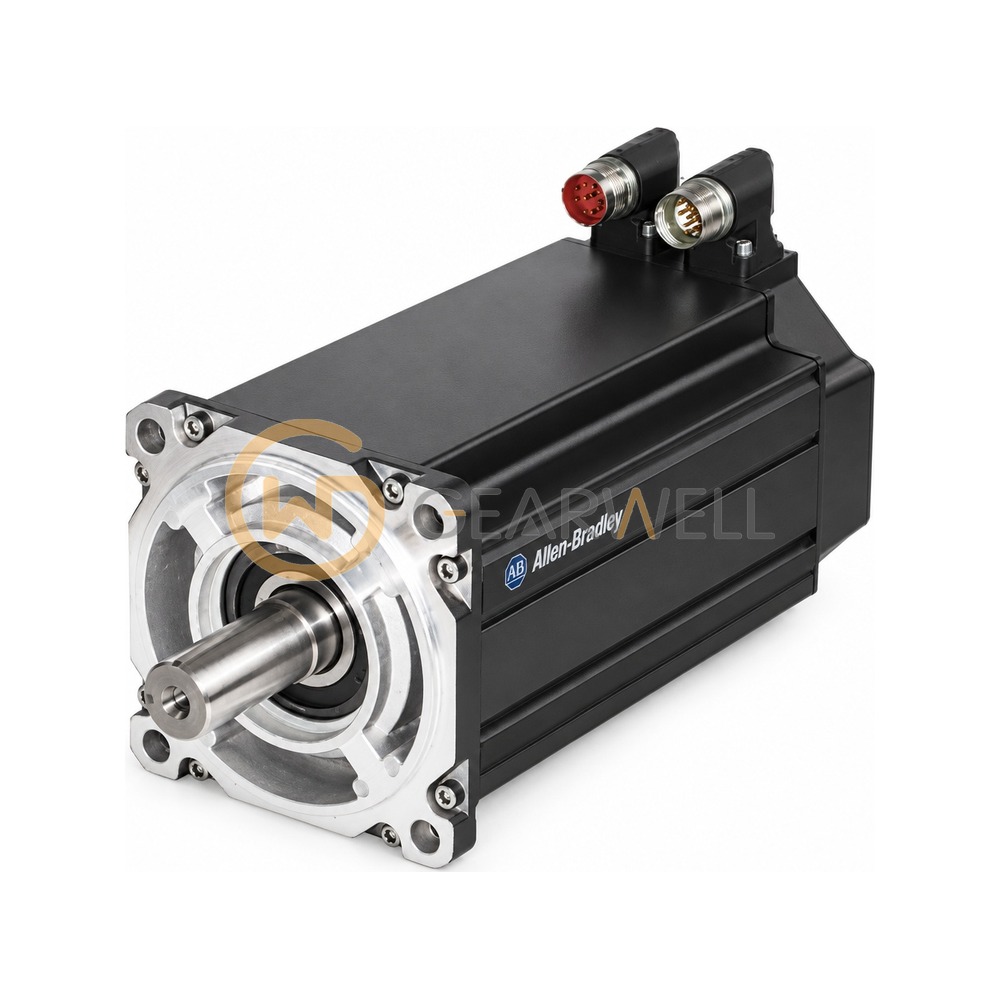

Allen-Bradley MPL-B540K-SJ24AA MP-Series Low-Inertia Servo Motor
- Brand
- Allen-Bradley
- Model
- MPL-B540K-SJ24AA
- GEARWELL SKU
- GWP-000033275
- Category
- Servo Systems
Key specifications
- Brake
- 24V DC brake (4)
- Shaft
- Shaft key, no shaft seal (J)
- Evidence
- Rockwell Automation MP-IN001F-EN-P catalog number explanation (hosted at configurator.rockwellautomation.com)
- Feedback
- Single-turn high-resolution encoder (S)
- Connectors
- Circular bayonet, facing shaft (2)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley MPL-B540K-SJ24AA MP-Series Low-Inertia Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-B540K-SJ24AA |
| Category | Servo Systems |
| Brake | 24V DC brake (4) |
| Shaft | Shaft key, no shaft seal (J) |
| Evidence | Rockwell Automation MP-IN001F-EN-P catalog number explanation (hosted at configurator.rockwellautomation.com) |
| Feedback | Single-turn high-resolution encoder (S) |
| Connectors | Circular bayonet, facing shaft (2) |
| Frame size | 165 mm (5) |
| Rated speed | 4000 rpm (K) |
| Catalog number | MPL-B540K-SJ24AA |
| Voltage rating | 460V AC (B) |
| Magnet stack length | 4.0 in. / 101.6 mm (40) |
