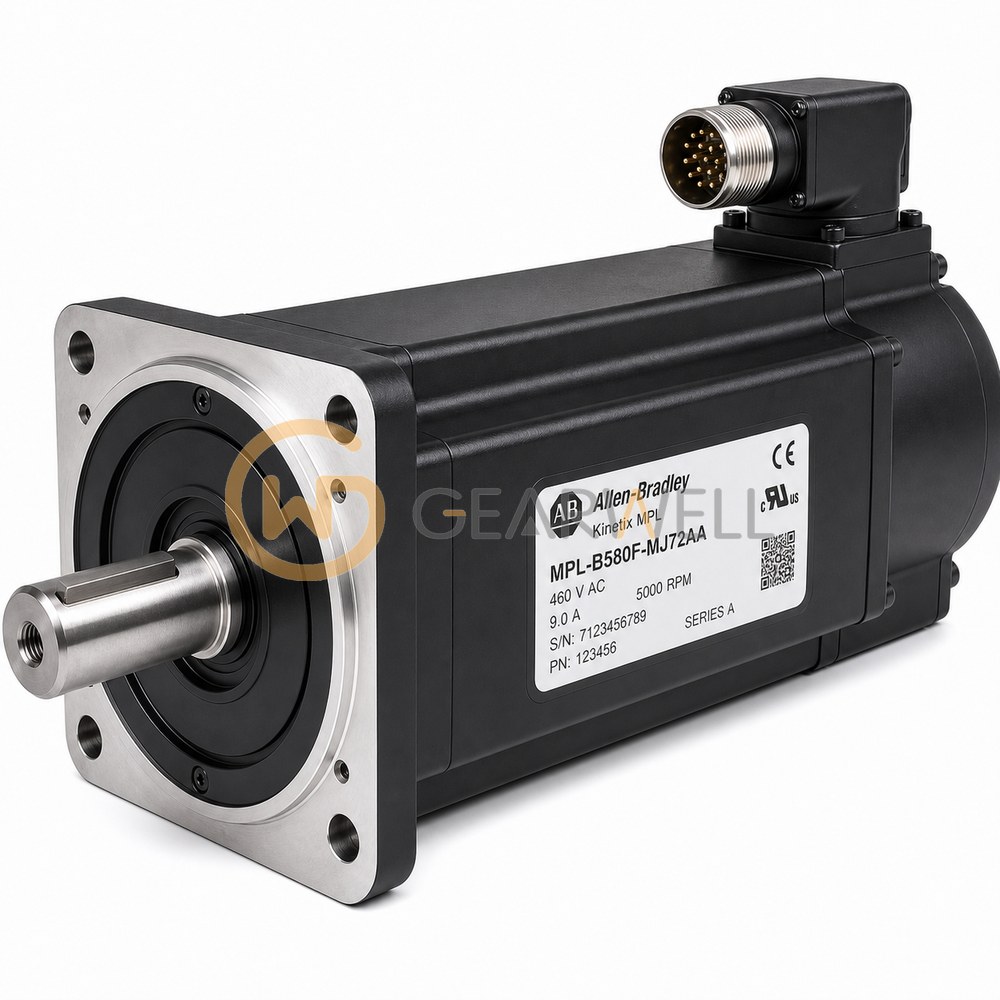

Allen-Bradley MPL-B580F-MJ72AA Low-Inertia Servo Motor
- Brand
- Allen-Bradley
- Model
- MPL-B580F-MJ72AA
- GEARWELL SKU
- GWP-000003924
- Category
- Servo Systems
Key specifications
- Rated speed
- 3000 rpm
- Shaft
- Keyed shaft extension; no shaft seal
- Motor voltage (catalog)
- 460 V AC
- Feedback
- Multi-turn absolute encoder, 1024 sin/cos, Hiperface
- Connectors
- SpeedTec DIN right-angle connectors, 180-degree rotatable
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley MPL-B580F-MJ72AA is a Kinetix MPL low-inertia permanent magnet servo motor for 400 V-class drives in the 165 mm frame, rated 7.1 kW at 3000 rpm with 34.0 N·m continuous stall torque and 87.0 N·m peak stall torque. This version has a 1024 sin/cos absolute multi-turn encoder (Hiperface), a keyed shaft without shaft seal, a right-angle SpeedTec DIN connector that rotates through 180°, no holding brake and an IEC metric mounting flange. Rockwell designs the MPL range for high-performance motion systems such as packaging, converting, material handling and electronic assembly, with a high torque-to-size ratio and IP50 protection as standard without a shaft seal.
Technical reference
| Product name | Allen-Bradley MPL-B580F-MJ72AA Low-Inertia Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-B580F-MJ72AA |
| Category | Servo Systems |
| Rated speed | 3000 rpm |
| Shaft | Keyed shaft extension; no shaft seal |
| Motor voltage (catalog) | 460 V AC |
| Feedback | Multi-turn absolute encoder, 1024 sin/cos, Hiperface |
| Connectors | SpeedTec DIN right-angle connectors, 180-degree rotatable |
| Frame size | 165 mm |
| Holding brake | No holding brake |
| Voltage class | 400 V class |
| Mounting flange | IEC metric, free mounting holes (Type FF) |
| Magnet Stack Length | 80 = 203.2 mm (8.0 in.) |
