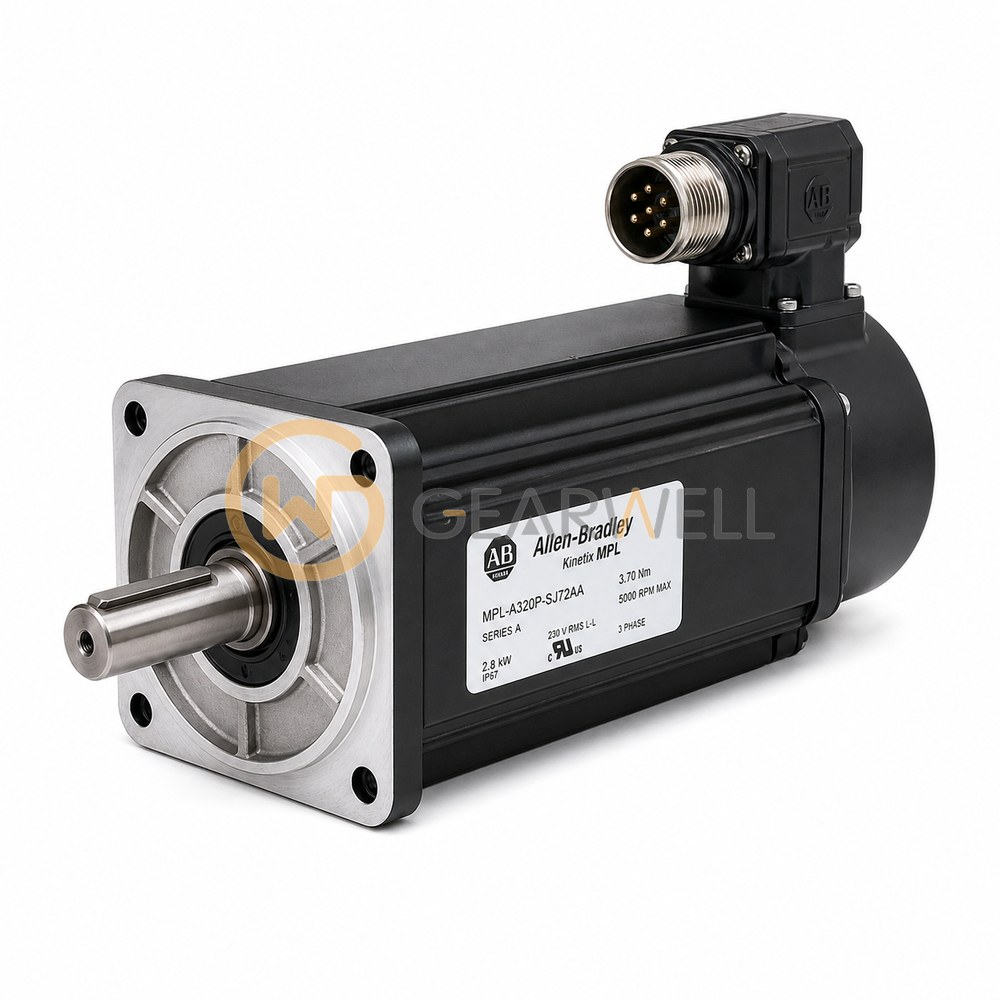

Allen-Bradley MPL-A320P-SJ72AA Low-Inertia Servo Motor
- Brand
- Allen-Bradley
- Model
- MPL-A320P-SJ72AA
- GEARWELL SKU
- GWP-000002651
- Category
- Servo Systems
Key specifications
- Type
- Servo Motor
- Shaft
- Keyed shaft extension; no shaft seal
- Feedback
- Single-turn absolute encoder, 1024 sin/cos, Hiperface
- Connectors
- SpeedTec DIN right-angle connectors, 180-degree rotatable
- Frame size
- 100 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley MPL-A320P-SJ72AA is a Kinetix MPL low-inertia permanent magnet servo motor for 200 V-class drives in the 100 mm frame, rated 1.3 kW at 4750 rpm with 3.05 N·m continuous stall torque and 7.91 N·m peak stall torque. This version has a 1024 sin/cos absolute single-turn encoder (Hiperface), a keyed shaft without shaft seal, a right-angle SpeedTec DIN connector that rotates through 180°, no holding brake and an IEC metric mounting flange. Rockwell designs the MPL range for high-performance motion systems such as packaging, converting, material handling and electronic assembly, with a high torque-to-size ratio and IP50 protection as standard without a shaft seal.
Technical reference
| Product name | Allen-Bradley MPL-A320P-SJ72AA Low-Inertia Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-A320P-SJ72AA |
| Category | Servo Systems |
| Type | Servo Motor |
| Shaft | Keyed shaft extension; no shaft seal |
| Feedback | Single-turn absolute encoder, 1024 sin/cos, Hiperface |
| Connectors | SpeedTec DIN right-angle connectors, 180-degree rotatable |
| Frame size | 100 mm |
| Holding brake | No holding brake |
| Voltage class | 200 V class |
| Mounting flange | IEC metric, free mounting holes (Type FF) |
| Motor voltage (catalog) | 230 V AC |
| Magnet Stack Length | 20 = 50.8 mm (2.0 in.) |
