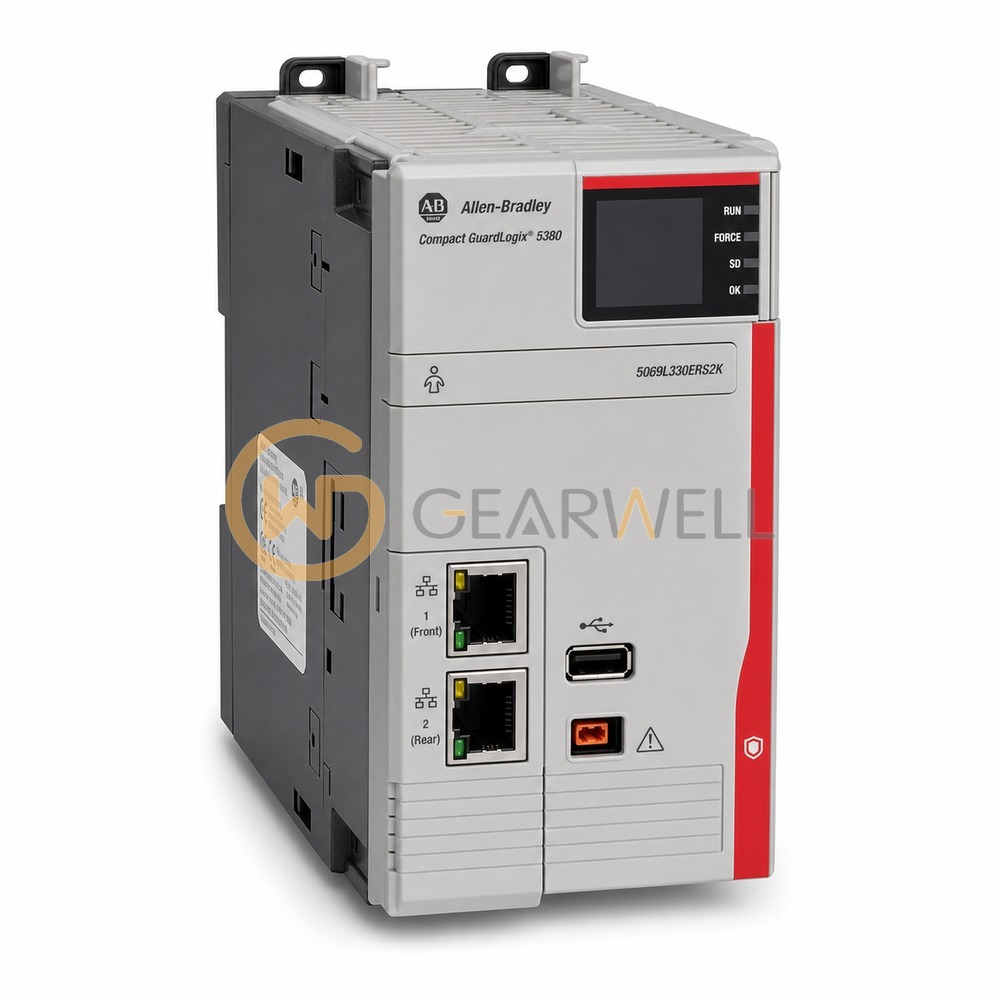

Allen-Bradley 5069L330ERS2K Compact GuardLogix 5380 Safety Controller
- Brand
- Allen-Bradley
- Model
- 5069L330ERS2K
- GEARWELL SKU
- GWP-000002033
- Category
- PLCs & I/O
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 5069-L330ERS2K is a Compact GuardLogix 5380 SIL 2 safety controller with 3 MB of user memory and 1.5 MB of safety memory, two Ethernet ports for Dual-IP or Linear/DLR operation and a USB programming port. It handles up to 31 local Compact 5000 I/O modules and 60 EtherNet/IP nodes and runs 31 standard tasks plus one safety task. This version has no Integrated Motion; Rockwell reserves that for catalog numbers with M. It is certified for SIL 2 to EN 62061/IEC 61508 and Cat. 3/PL d to EN ISO 13849-1. The controller mounts on a DIN rail, operates at 0…60 °C, ships with a 1784-SD2 2 GB SD card and is programmed in Studio 5000 Logix Designer. The K suffix marks the conformal-coated version.
Technical reference
| Product name | Allen-Bradley 5069L330ERS2K Compact GuardLogix 5380 Safety Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 5069L330ERS2K |
| Category | PLCs & I/O |
