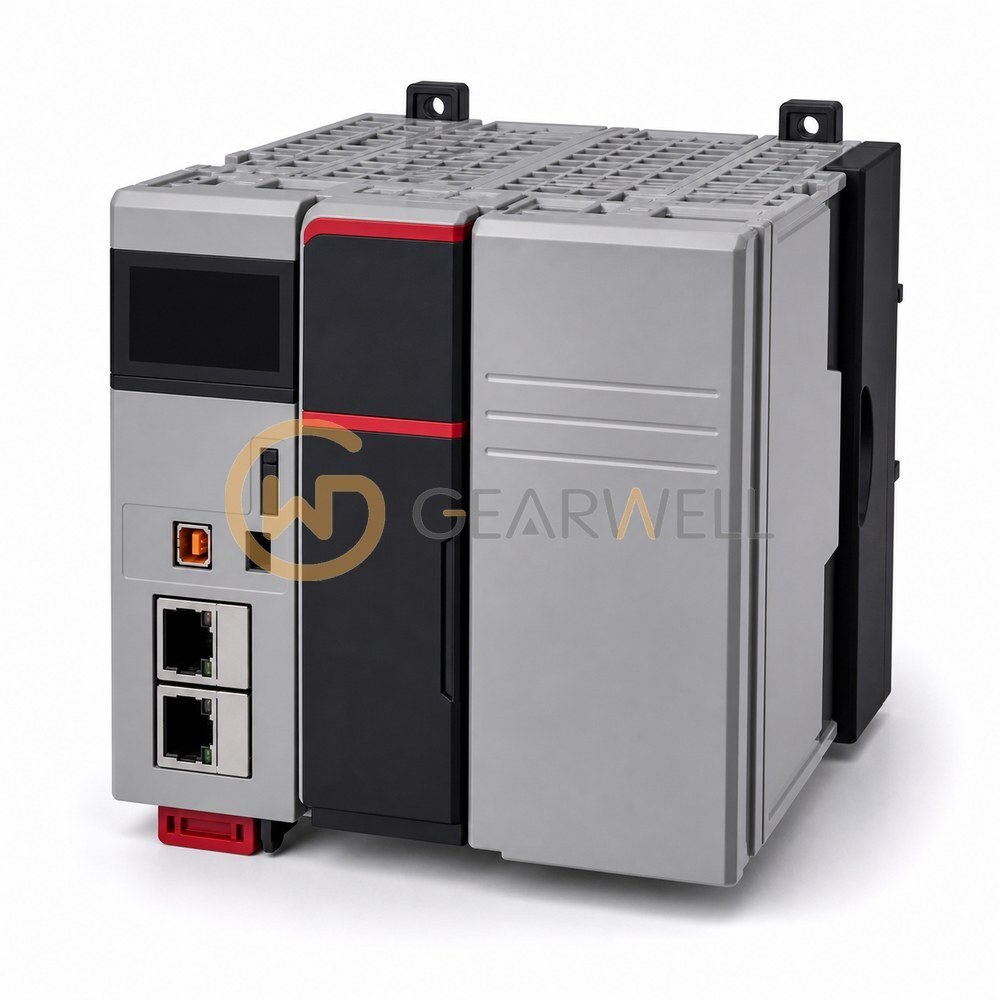

Allen-Bradley 5069-L330ERMS2 Compact GuardLogix 5380 3 MB SIL 2 Motion Safety Controller
- Brand
- Allen-Bradley
- Model
- 5069L330ERMS2
- GEARWELL SKU
- GWP-000001311
- Category
- PLCs & I/O
Key specifications
- USB port
- 1 x USB 2.0 Type B, 12 Mbps; temporary programming/configuration/firmware/online edits
- MOD power consumption
- 475 mA maximum at 18-32 V DC SELV/PELV
- Integrated Motion position-loop drive axes
- 16 maximum
- Maximum local I/O modules
- 31
- Product type
- Compact GuardLogix 5380 SIL 2 safety controller
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 5069-L330ERMS2 is a Compact GuardLogix 5380 SIL 2 safety controller with 3 MB of user memory and 1.5 MB of safety memory, two Ethernet ports for Dual-IP or Linear/DLR operation and a USB programming port. It handles up to 31 local Compact 5000 I/O modules and 60 EtherNet/IP nodes and runs 31 standard tasks plus one safety task. It supports Integrated Motion on EtherNet/IP with up to 16 position-loop drive axes within a total of 256 motion axes. It is certified for SIL 2 to EN 62061/IEC 61508 and Cat. 3/PL d to EN ISO 13849-1. The controller mounts on a DIN rail, operates at 0…60 °C, ships with a 1784-SD2 2 GB SD card and is programmed in Studio 5000 Logix Designer.
Technical reference
| Product name | Allen-Bradley 5069-L330ERMS2 Compact GuardLogix 5380 3 MB SIL 2 Motion Safety Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 5069L330ERMS2 |
| Category | PLCs & I/O |
| USB port | 1 x USB 2.0 Type B, 12 Mbps; temporary programming/configuration/firmware/online edits |
| MOD power consumption | 475 mA maximum at 18-32 V DC SELV/PELV |
| Integrated Motion position-loop drive axes | 16 maximum |
| Maximum local I/O modules | 31 |
| Product type | Compact GuardLogix 5380 SIL 2 safety controller |
| Safety memory | 1.5 MB |
| Safety capability | Up to SIL 2 / PLd (Category 3), using the specified safety task and safety I/O |
| Maximum EtherNet/IP nodes | 60 |
| Built-in Ethernet ports | 2 |
| Ethernet speed | 10/100/1000 Mbps, full duplex |
| Standard user memory | 3 MB |
| Maximum power dissipation | 9 W |
