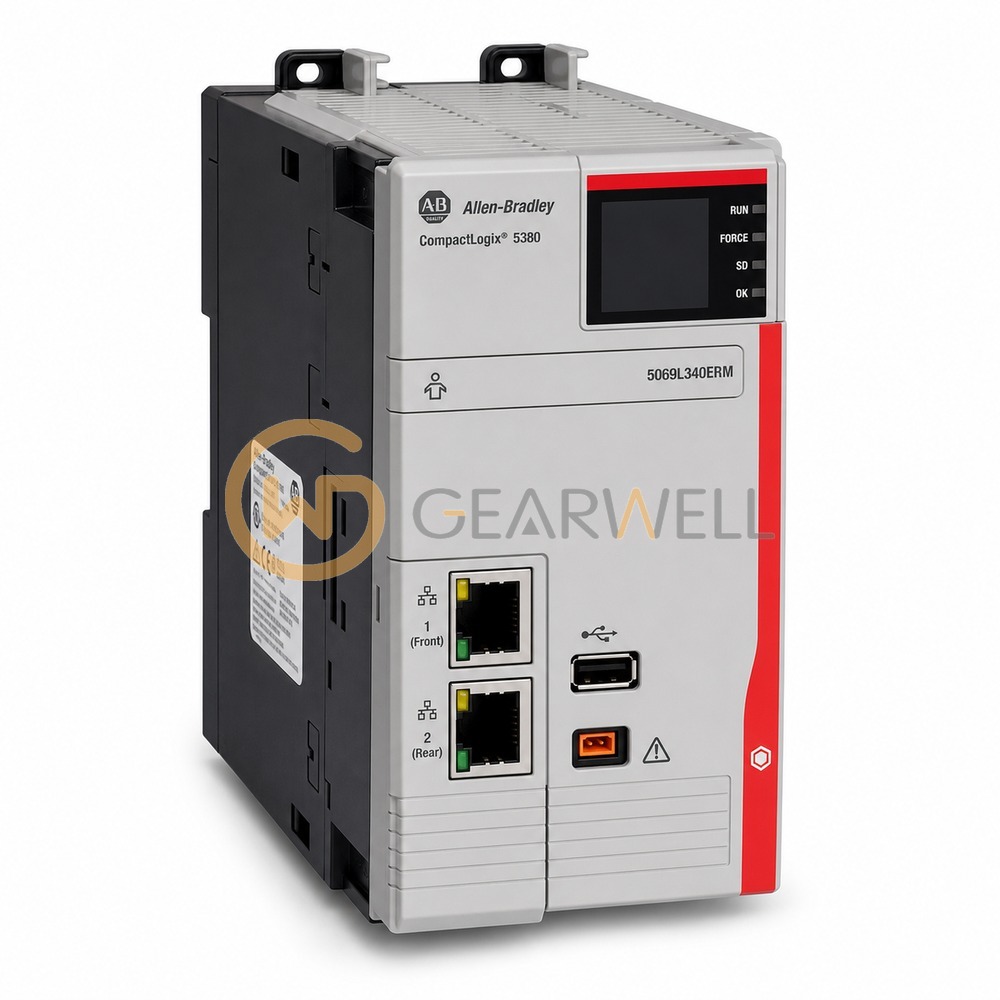

Allen-Bradley 5069L340ERM CompactLogix 5380 Controller
- Brand
- Allen-Bradley
- Model
- 5069L340ERM
- GEARWELL SKU
- GWP-000003450
- Category
- PLCs & I/O
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 5069-L340ERM is a CompactLogix 5380 controller with 4 MB of user memory, two Ethernet ports for Dual-IP or Linear/DLR operation and a USB programming port. It handles up to 31 local Compact 5000 I/O modules and 90 EtherNet/IP nodes and runs 32 tasks with up to 1000 programs per task. It supports Integrated Motion on EtherNet/IP with up to 20 position-loop drive axes within a total of 256 motion axes. The controller mounts on a DIN rail, operates at 0…60 °C, ships with a 1784-SD2 2 GB SD card and is programmed in Studio 5000 Logix Designer.
Technical reference
| Product name | Allen-Bradley 5069L340ERM CompactLogix 5380 Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 5069L340ERM |
| Category | PLCs & I/O |
