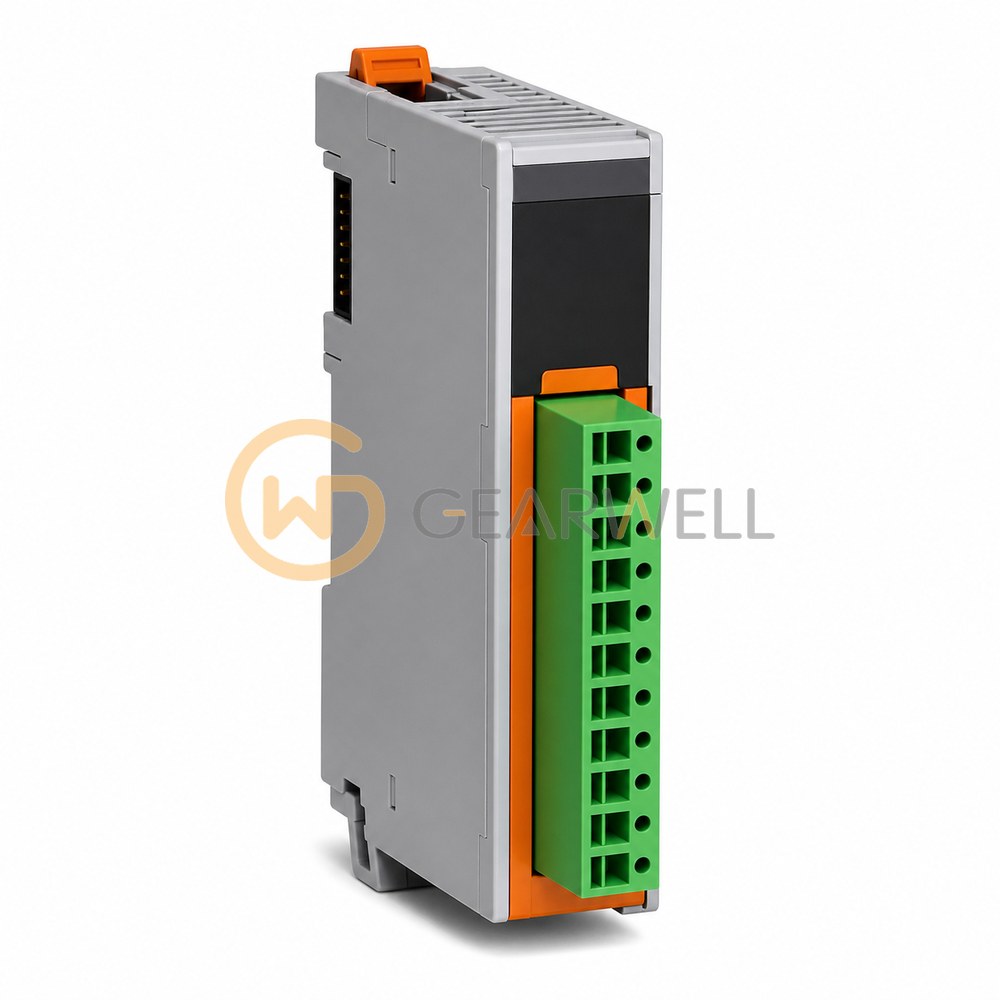

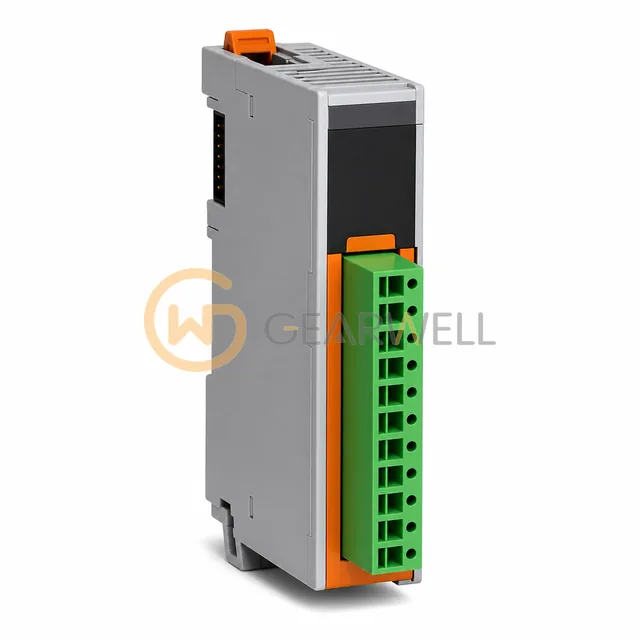

Allen-Bradley 5069-OF4 Compact 5000 4-Channel Analog Output Module
- Brand
- Allen-Bradley
- Model
- 5069-OF4
- GEARWELL SKU
- GWP-000002907
- Category
- PLCs & I/O
Key specifications
- Overall depth, approx.
- 105.4 mm
- Width
- 22 mm
- Overall height, approx.
- 144.6 mm
- Approximate weight
- 175 g
- MOD power consumption
- 75 mA at 18-32 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 5069-OF4 is a Compact 5000 4-channel current/voltage output module. Compact 5000 I/O modules work as local I/O in CompactLogix 5380 and Compact GuardLogix 5380 systems and as remote I/O behind a 5069 EtherNet/IP adapter, and Producer/Consumer technology lets several Logix 5000 controllers share their data. Configure it in Studio 5000 Logix Designer and order the field wiring terminal block separately as a 5069-RTB18-SCREW or 5069-RTB18-SPRING.
Technical reference
| Product name | Allen-Bradley 5069-OF4 Compact 5000 4-Channel Analog Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 5069-OF4 |
| Category | PLCs & I/O |
| Overall depth, approx. | 105.4 mm |
| Width | 22 mm |
| Overall height, approx. | 144.6 mm |
| Approximate weight | 175 g |
| MOD power consumption | 75 mA at 18-32 V DC |
| Output signal | Analog voltage or current |
| Enclosure type | Open-style |
| Load impedance | Voltage mode: 1000 ohms minimum; current mode: 500 ohms maximum |
| Output resolution | 16 bits |
| Analog output channels | 4 |
| Current output ranges | 0-20 mA; 4-20 mA |
| Voltage output ranges | +/-10 V; 0-10 V; 0-5 V |
