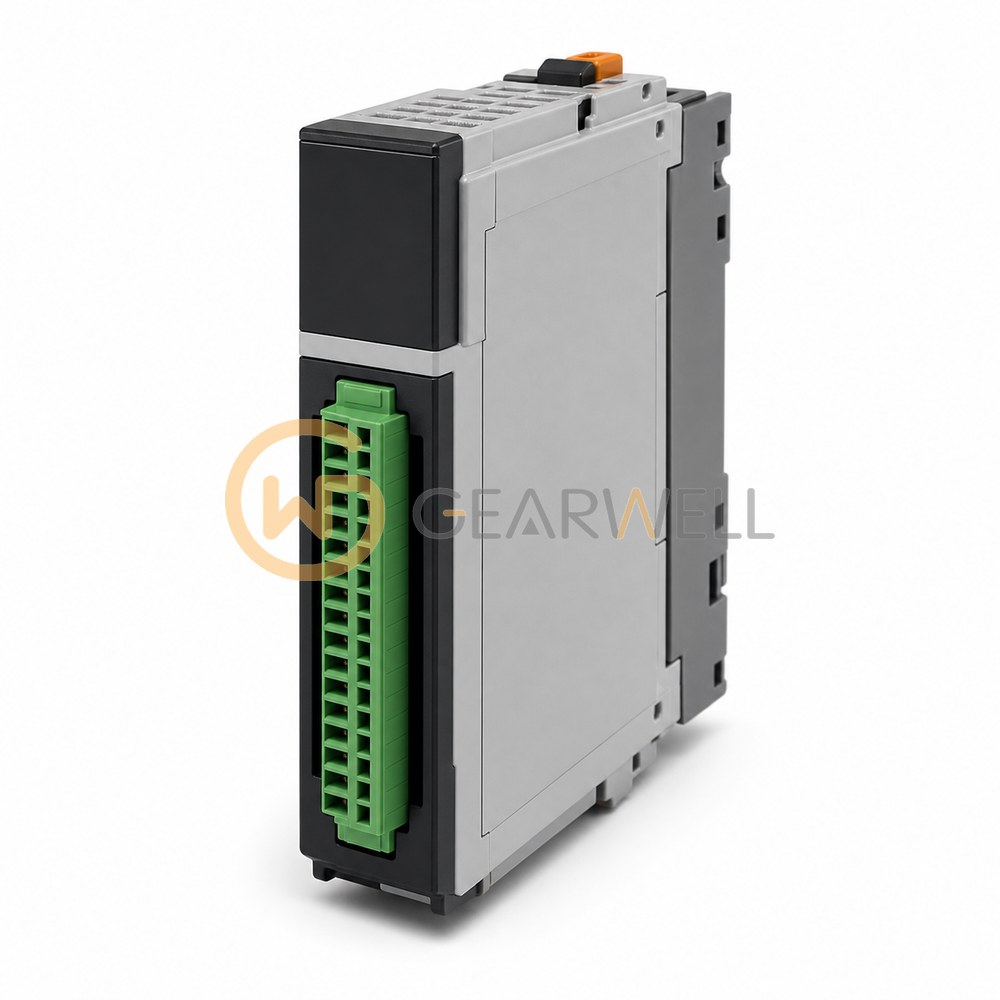

Allen-Bradley 5069-OB16K Compact 5000 16-Point DC Sourcing Output Module, Conformal Coated
- Brand
- Allen-Bradley
- Model
- 5069-OB16K
- GEARWELL SKU
- GWP-000001195
- Category
- PLCs & I/O
Key specifications
- MOD power consumption
- 75 mA at 18-32 V DC
- Output delay, off-to-on and on-to-off
- 100 microseconds or less, +/-10 microseconds, at 25 C and 0.5 A
- Product type
- Conformal-coated 16-point DC sourcing output module
- Surge current per output
- 1 A maximum for 10 ms; repeatable every 2 s
- Output channels
- 16 sourcing outputs, one group
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 5069-OB16K is a Compact 5000 16-point conformal-coated sourcing output module. Compact 5000 I/O modules work as local I/O in CompactLogix 5380 and Compact GuardLogix 5380 systems and as remote I/O behind a 5069 EtherNet/IP adapter, and Producer/Consumer technology lets several Logix 5000 controllers share their data. Configure it in Studio 5000 Logix Designer and order the field wiring terminal block separately as a 5069-RTB18-SCREW or 5069-RTB18-SPRING.
Technical reference
| Product name | Allen-Bradley 5069-OB16K Compact 5000 16-Point DC Sourcing Output Module, Conformal Coated |
|---|---|
| Brand | Allen-Bradley |
| Model | 5069-OB16K |
| Category | PLCs & I/O |
| MOD power consumption | 75 mA at 18-32 V DC |
| Output delay, off-to-on and on-to-off | 100 microseconds or less, +/-10 microseconds, at 25 C and 0.5 A |
| Product type | Conformal-coated 16-point DC sourcing output module |
| Surge current per output | 1 A maximum for 10 ms; repeatable every 2 s |
| Output channels | 16 sourcing outputs, one group |
| Voltage category | 12/24 V DC |
| Maximum power dissipation | 3.25 W with 16 channels at 0.5 A |
| Output operating voltage | 10-32 V DC |
| Output current per module | 8 A maximum, resistive, at 10-32 V DC |
| Output current per channel | 0.5 A resistive at 10-32 V DC |
