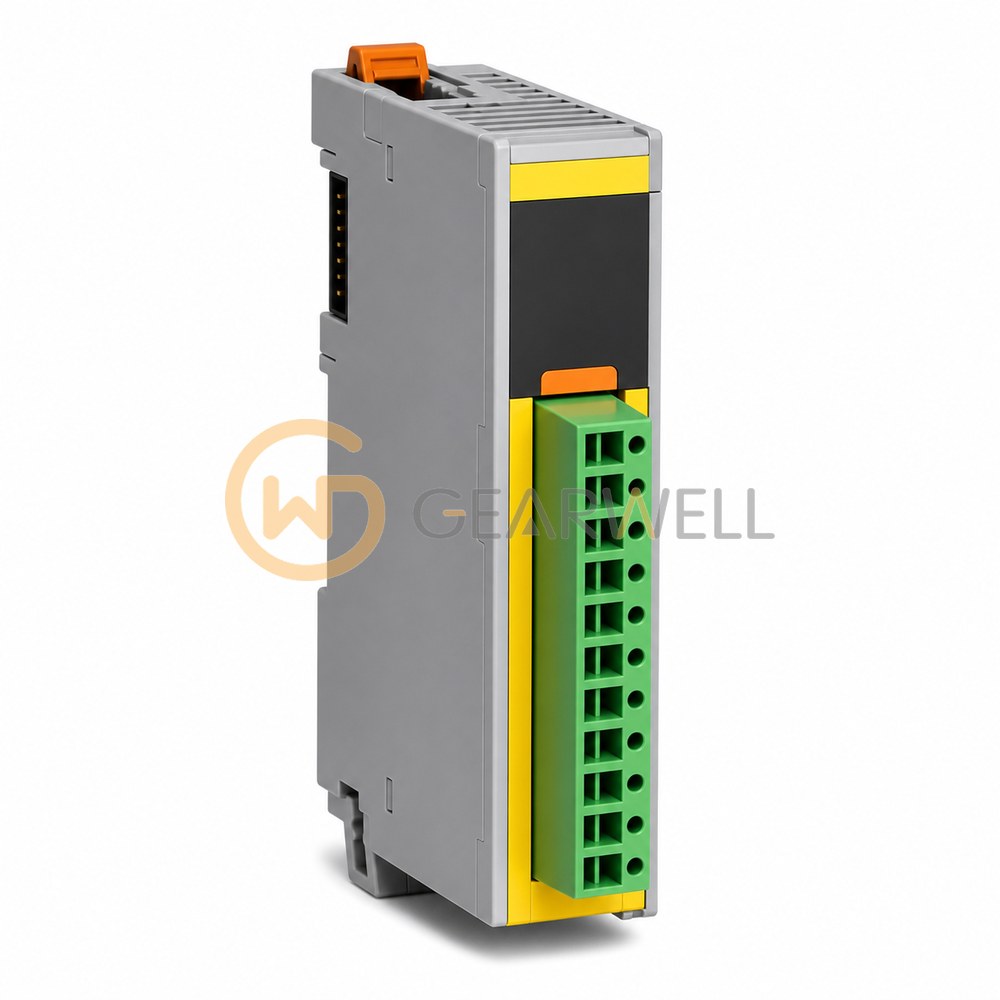

Allen-Bradley 5069-OBV8S Compact 5000 8-Channel Safety Output Module
- Brand
- Allen-Bradley
- Model
- 5069-OBV8S
- GEARWELL SKU
- GWP-000003035
- Category
- PLCs & I/O
Key specifications
- Overall depth, approx.
- 105.4 mm
- Overall height, approx.
- 144.6 mm
- Isolation voltage
- 250 V continuous, basic insulation; no isolation between individual outputs or between LA power and outputs
- Output modes
- Bipolar or sourcing
- Product type
- Compact 5000 safety output module
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 5069-OBV8S is a Compact 5000 18…32V DC 8-point safety output module, bipolar or sourcing. Compact 5000 I/O modules work as local I/O in CompactLogix 5380 and Compact GuardLogix 5380 systems and as remote I/O behind a 5069 EtherNet/IP adapter, and Producer/Consumer technology lets several Logix 5000 controllers share their data. Configure it in Studio 5000 Logix Designer and order the field wiring terminal block separately as a 5069-RTB18-SCREW or 5069-RTB18-SPRING.
Technical reference
| Product name | Allen-Bradley 5069-OBV8S Compact 5000 8-Channel Safety Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 5069-OBV8S |
| Category | PLCs & I/O |
| Overall depth, approx. | 105.4 mm |
| Overall height, approx. | 144.6 mm |
| Isolation voltage | 250 V continuous, basic insulation; no isolation between individual outputs or between LA power and outputs |
| Output modes | Bipolar or sourcing |
| Product type | Compact 5000 safety output module |
| Output on-state voltage | 17.5-32 V DC; 24 V DC nominal |
| LA field-power voltage | 18-32 V DC |
| Safety output channels | 8 |
| Safety reaction time | 4.5 ms |
| Output current per channel | 1 A horizontal; 0.7 A in other supported mounting orientations |
