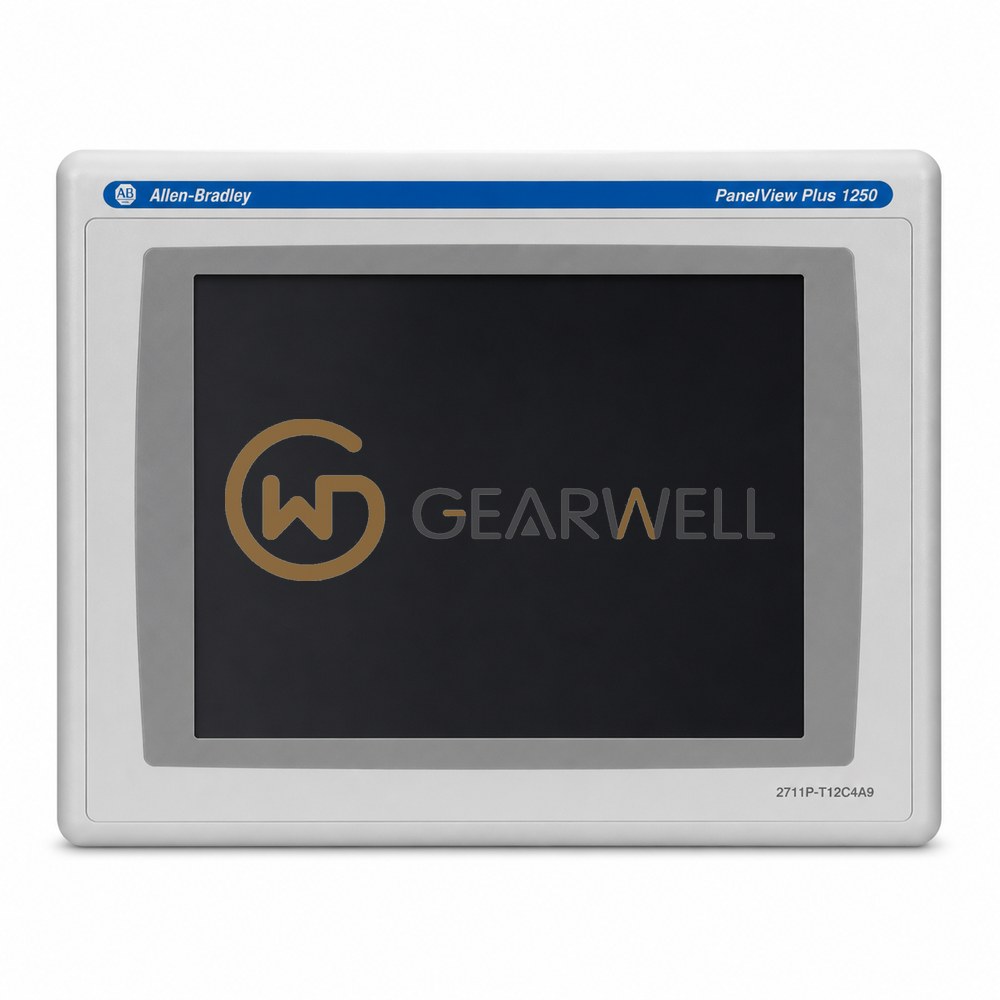

Allen-Bradley 2711P-T12C4A9 PanelView Plus 6 1250 12.1-inch Touchscreen HMI

Key specifications

Memory: 512 MB RAM; 512 MB nonvolatile memory (approximately 79 MB free user memory)
Display resolution: 800 x 600 pixels
Display size: 12.1 in
Display type: Color active-matrix TFT
Input voltage: 100...240 V AC, 50...60 Hz

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Allen-Bradley 2711P-T12C4A9 PanelView Plus 6 1250 12.1-inch Touchscreen HMI
Brand	Allen-Bradley
Model	2711P-T12C4A9
Category	HMIs & Industrial PCs
Memory	512 MB RAM; 512 MB nonvolatile memory (approximately 79 MB free user memory)
Display resolution	800 x 600 pixels
Display size	12.1 in
Display type	Color active-matrix TFT
Input voltage	100...240 V AC, 50...60 Hz
Depth for this power configuration	55 mm without optional communication module
Operator input	Analog resistive touchscreen
Catalog operating system	Windows CE 6.0 with extended features and file viewers
Panel cutout (H x W)	257 x 338 mm (H x W)
Power consumption	160 VA maximum; 65 VA typical
Communication interfaces	10/100 Mbps Ethernet, RS-232 and two USB host ports; network interface for an optional communication module
Installed front protection	IP65 at the front when properly installed
Installed enclosure rating	NEMA/UL Type 4X (indoor use only), when properly installed
