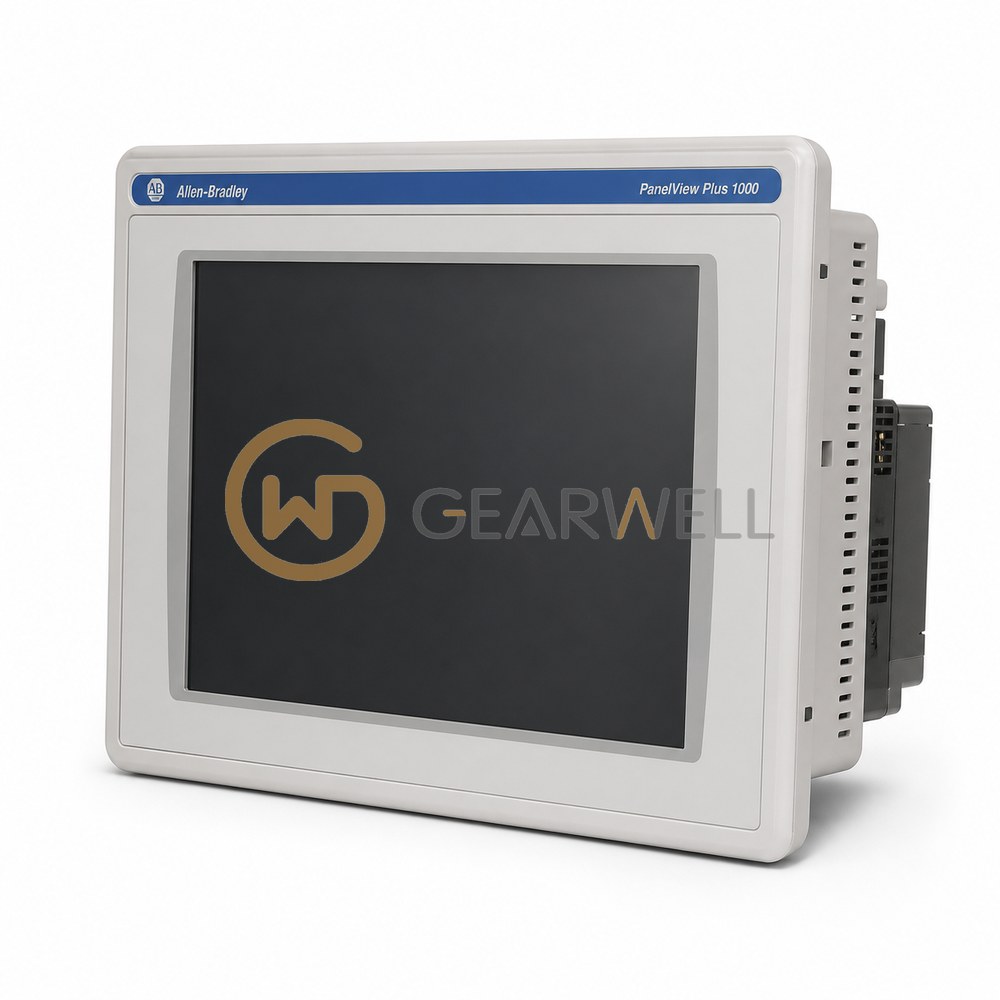

Allen-Bradley 2711P-T10C4D6 PanelView Plus CE 1000 10.4-inch Touchscreen HMI

Key specifications

Typical display luminance: 300 cd/m²
Base-unit dimensions (H x W x D): 248 x 329 x 55 mm (H x W x D), without communication module
Display resolution: 640 x 480 pixels
Display area (W x H): 211 x 158 mm
Display size: 10.4 in

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Allen-Bradley 2711P-T10C4D6 PanelView Plus CE 1000 10.4-inch Touchscreen HMI
Brand	Allen-Bradley
Model	2711P-T10C4D6
Category	HMIs & Industrial PCs
Typical display luminance	300 cd/m²
Base-unit dimensions (H x W x D)	248 x 329 x 55 mm (H x W x D), without communication module
Display resolution	640 x 480 pixels
Display area (W x H)	211 x 158 mm
Display size	10.4 in
Display type	Color active-matrix TFT LCD
Logic module	CE logic module: 128 MB flash and 128 MB RAM
Product type	PanelView Plus CE 1000 terminal
Communication	Ethernet and RS-232
Input voltage	24 V DC nominal (18...32 V DC)
Built-in ports	10/100 Mbps Ethernet, RS-232 and two USB-A host ports
Operator input	Touchscreen
Operating temperature	0...55 °C
