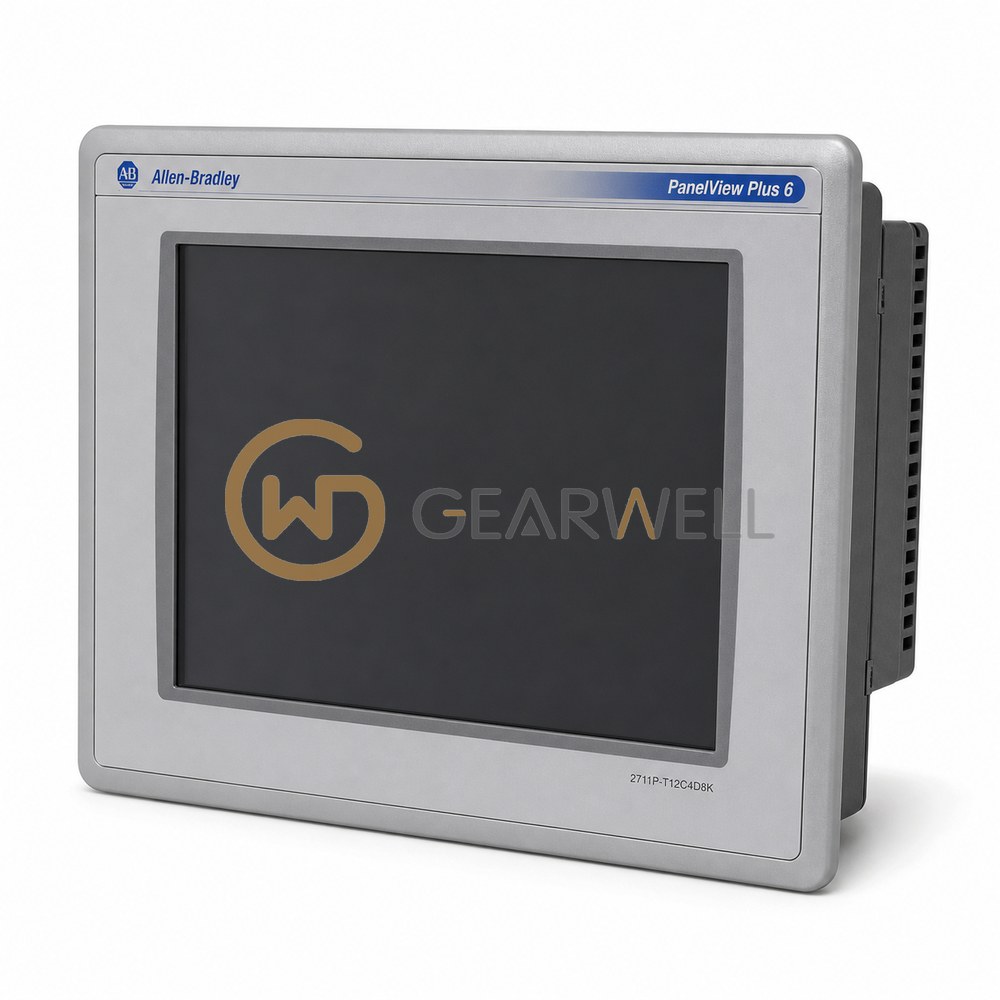

Allen-Bradley 2711P-T12C4D8K PanelView Plus 6 1250 12.1-inch Touchscreen HMI

Key specifications

Memory: 512 MB RAM; 512 MB nonvolatile memory (approximately 79 MB free user memory)
Display resolution: 800 x 600 pixels
Display size: 12.1 in
Display type: Color active-matrix TFT
Input voltage: 24 V DC nominal (18...32 V DC)

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Allen-Bradley 2711P-T12C4D8K PanelView Plus 6 1250 12.1-inch Touchscreen HMI
Brand	Allen-Bradley
Model	2711P-T12C4D8K
Category	HMIs & Industrial PCs
Memory	512 MB RAM; 512 MB nonvolatile memory (approximately 79 MB free user memory)
Display resolution	800 x 600 pixels
Display size	12.1 in
Display type	Color active-matrix TFT
Input voltage	24 V DC nominal (18...32 V DC)
Depth for this power configuration	55 mm without optional communication module
Operator input	Analog resistive touchscreen
Catalog operating system	Windows CE 6.0 without extended features
Catalog coating option	Conformal-coated PCBA variant
Panel cutout (H x W)	257 x 338 mm (H x W)
Communication interfaces	10/100 Mbps Ethernet, RS-232 and two USB host ports; network interface for an optional communication module
Installed front protection	IP65 at the front when properly installed
Installed enclosure rating	NEMA/UL Type 4X (indoor use only), when properly installed
