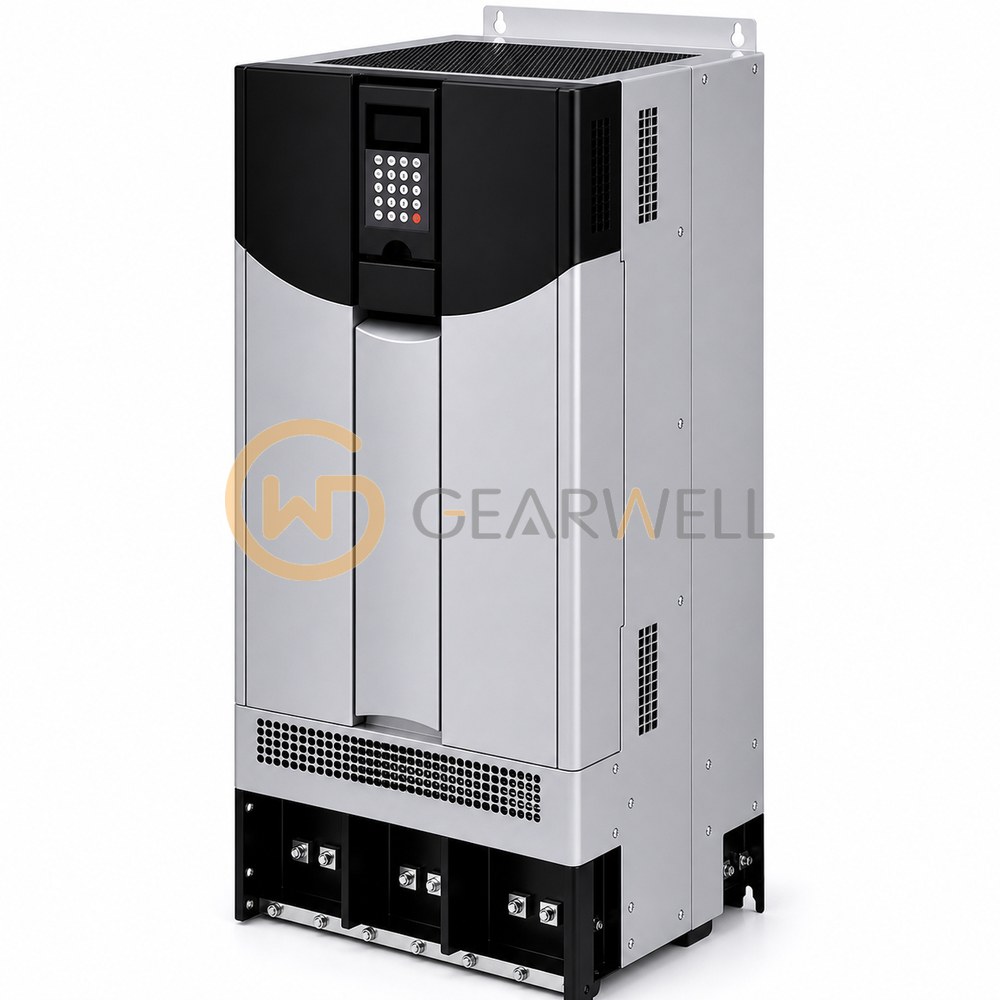

Allen-Bradley 20G24NC302JA0NNNNN PowerFlex 755TS 540 V DC 160 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20G24NC302JA0NNNNN
- GEARWELL SKU
- GWP-000002435
- Category
- Variable Frequency Drives
Key specifications
- Operator interface
- No factory-fitted HIM
- Drive frame
- 7
- Nominal input voltage
- 540 V DC nominal
- Protection and cooling
- Standard corrosive-gas protection; forced-air cooling
- Rated motor output
- 302 A continuous, 160 kW normal duty; 132 kW heavy duty
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 20G24NC302JA0NNNNN PowerFlex 755TS 540 V DC 160 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G24NC302JA0NNNNN |
| Category | Variable Frequency Drives |
| Operator interface | No factory-fitted HIM |
| Drive frame | 7 |
| Nominal input voltage | 540 V DC nominal |
| Protection and cooling | Standard corrosive-gas protection; forced-air cooling |
| Rated motor output | 302 A continuous, 160 kW normal duty; 132 kW heavy duty |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| Built-in communication | Dual embedded EtherNet/IP ports |
| Configured enclosure | IP00, NEMA/UL Open Type |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper installed |
