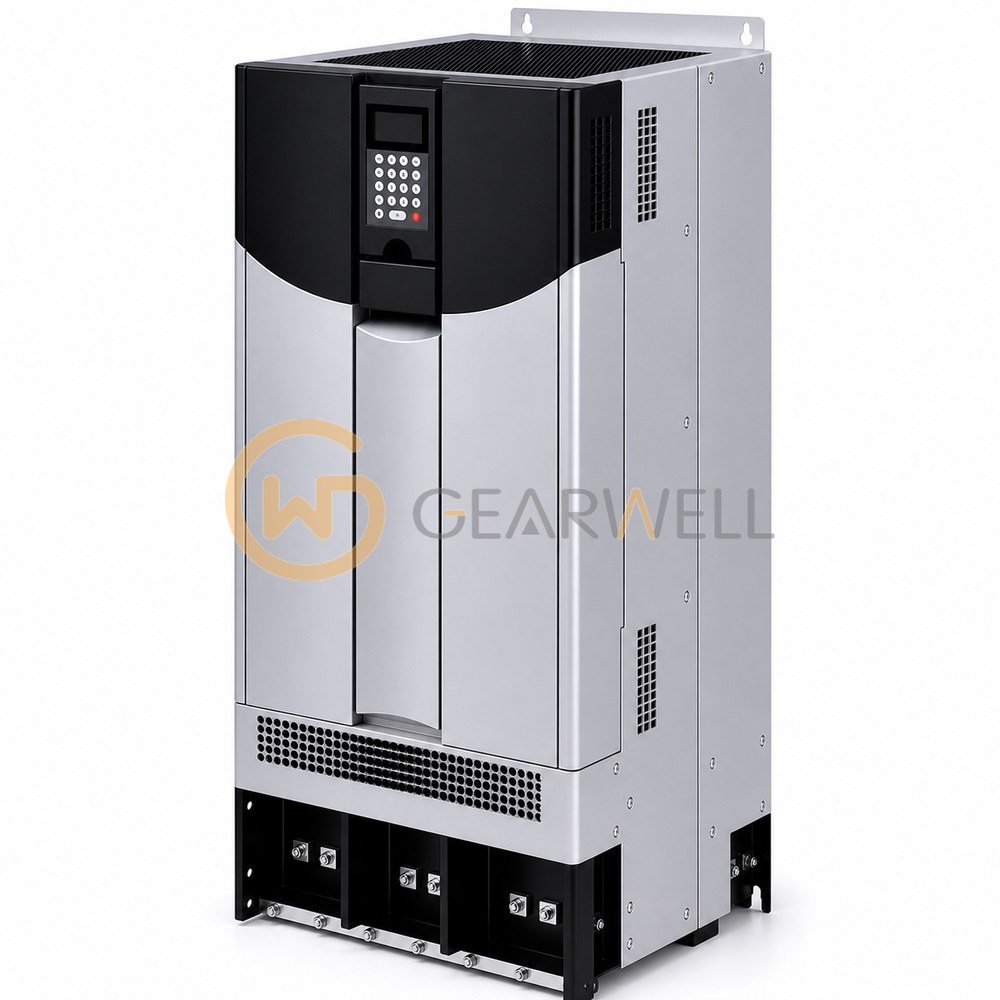

Allen-Bradley 20G2ANC140JN0NNNNN PowerFlex 755TS 400 V AC 75 kW AC Drive

Key specifications

Operator interface: No factory-fitted HIM
Drive frame: 6
Nominal input voltage: 400 V AC, three-phase
Protection and cooling: Standard corrosive-gas protection; forced-air cooling
Rated motor output: 140 A continuous, 75 kW normal duty; 55 kW heavy duty

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Allen-Bradley 20G2ANC140JN0NNNNN PowerFlex 755TS 400 V AC 75 kW AC Drive
Brand	Allen-Bradley
Model	20G2ANC140JN0NNNNN
Category	Variable Frequency Drives
Operator interface	No factory-fitted HIM
Drive frame	6
Nominal input voltage	400 V AC, three-phase
Protection and cooling	Standard corrosive-gas protection; forced-air cooling
Rated motor output	140 A continuous, 75 kW normal duty; 55 kW heavy duty
Braking hardware	No internal braking transistor; braking resistor not included
Built-in communication	Dual embedded EtherNet/IP ports
Configured enclosure	IP00, NEMA/UL Open Type
EMC filtering and CM jumper	EMC filter fitted; CM jumper installed
