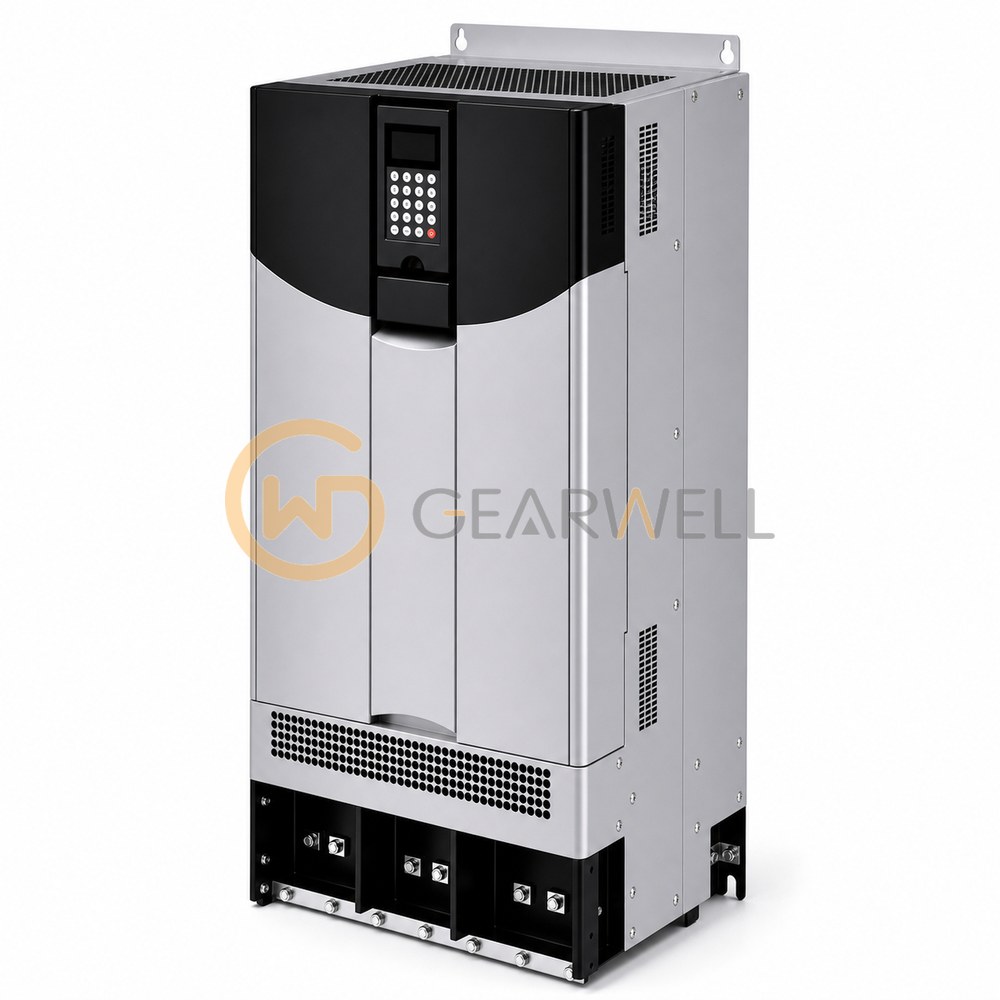

Allen-Bradley 20G24NC085JA0NNNNN PowerFlex 755TS 540 V DC 45 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20G24NC085JA0NNNNN
- GEARWELL SKU
- GWP-000002166
- Category
- Variable Frequency Drives
Key specifications
- Input configuration
- Common DC bus input with precharge
- Drive frame
- 5
- Nominal input voltage
- 540 V DC nominal
- Rated motor output
- 85 A continuous, 45 kW normal duty; 37 kW heavy duty
- Operator interface
- No factory-fitted HIM
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 20G24NC085JA0NNNNN PowerFlex 755TS 540 V DC 45 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G24NC085JA0NNNNN |
| Category | Variable Frequency Drives |
| Input configuration | Common DC bus input with precharge |
| Drive frame | 5 |
| Nominal input voltage | 540 V DC nominal |
| Rated motor output | 85 A continuous, 45 kW normal duty; 37 kW heavy duty |
| Operator interface | No factory-fitted HIM |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| Built-in communication | Dual embedded EtherNet/IP ports |
| Configured enclosure | IP20, NEMA/UL Open Type |
| Protection and cooling | Standard corrosive-gas protection; forced-air cooling |
