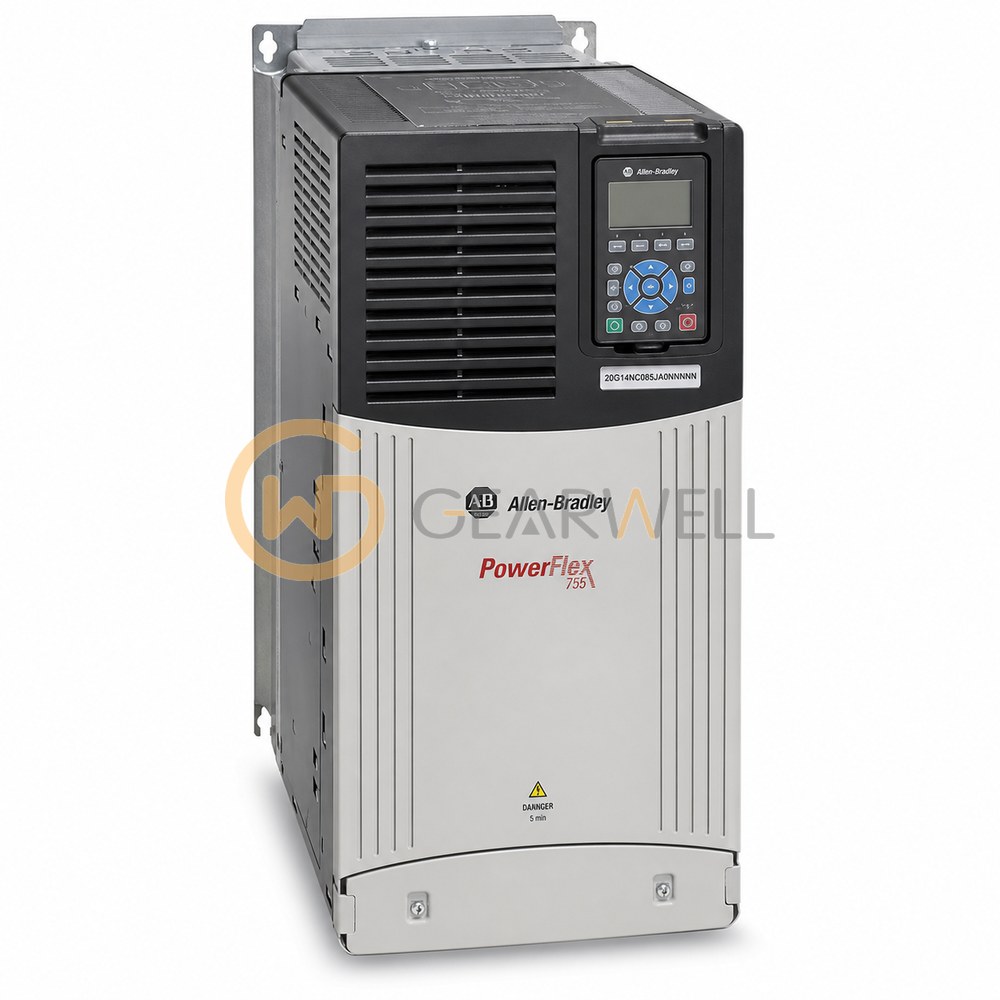

Allen-Bradley 20G14NC085JA0NNNNN PowerFlex 755 540 V DC 45 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20G14NC085JA0NNNNN
- GEARWELL SKU
- GWP-000003093
- Category
- Variable Frequency Drives
Key specifications
- Input configuration
- Common DC bus input with precharge
- Drive frame
- 5
- Product type
- Variable-frequency AC motor drive
- Manufacturer lifecycle status
- active mature
- Rated motor output
- 85 A continuous, 45 kW normal duty; 37 kW heavy duty
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20G14NC085JA0NNNNN is a PowerFlex 755 AC drive for the 400 V AC / 540 V DC class in frame 5, built as an IP20, NEMA/UL Type Open wall-mount chassis with DC input with precharge (common bus). Rockwell rates it at 85 A and 45 kW for normal duty and 72 A and 37 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
Technical reference
| Product name | Allen-Bradley 20G14NC085JA0NNNNN PowerFlex 755 540 V DC 45 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G14NC085JA0NNNNN |
| Category | Variable Frequency Drives |
| Input configuration | Common DC bus input with precharge |
| Drive frame | 5 |
| Product type | Variable-frequency AC motor drive |
| Manufacturer lifecycle status | active mature |
| Rated motor output | 85 A continuous, 45 kW normal duty; 37 kW heavy duty |
| Nominal input voltage | 540 V DC nominal |
| Configuration summary | PowerFlex 755; 540 V DC nominal; 85 A continuous, 45 kW normal duty; 37 kW heavy duty; frame 5; IP20, NEMA/UL Open Type; Internal braking transistor fitted; braking resistor not included; No factory-fitted HIM. |
| Built-in communication | Embedded EtherNet/IP port |
| Configured enclosure | IP20, NEMA/UL Open Type |
