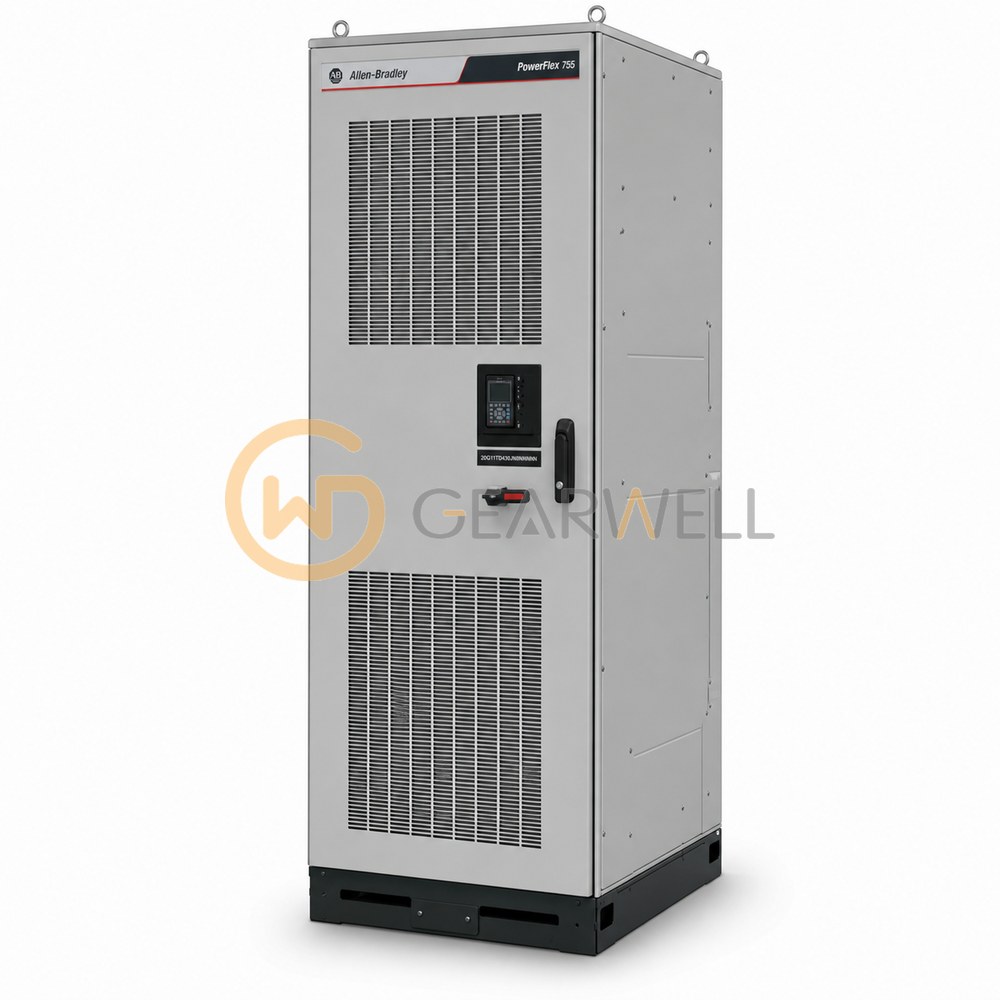

Allen-Bradley 20G11TD430JN0NNNNN PowerFlex 755 480 V AC 350 hp Drive Power Structure
- Brand
- Allen-Bradley
- Model
- 20G11TD430JN0NNNNN
- GEARWELL SKU
- GWP-000004276
- Category
- Variable Frequency Drives
Key specifications
- Input configuration
- AC input with precharge and DC terminals
- Drive frame
- 8
- Nominal input voltage
- 480 V AC, three-phase
- Rated motor output
- 430 A continuous, 350 hp normal duty; 300 hp heavy duty
- Operator interface
- No factory-fitted HIM
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20G11TD430JN0NNNNN is a PowerFlex 755 floor-mount base drive for open frame designs (IP00, UL Open Type without control POD) for the 480 V AC / 650 V DC class, with AC input with precharge and DC terminals. One base drive is rated 485 A and 400 Hp for light duty, 430 A and 350 Hp for normal duty and 370 A and 300 Hp for heavy duty, the equivalent of a frame 8 drive; ordered in a quantity of 2 or 3, the same base drive builds the frame 9 or frame 10 equivalent ratings. This version has filtering with the common mode capacitor jumper installed and no internal dynamic braking transistor. Open frame drives use the same drive units as the standard IP20 and IP54 products, cover applications from 215 kW to 1500 kW (250…2000 Hp) and are installed in an enclosure of your choosing; Rockwell requires a roll-out cart to install frame 8…10 drives. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
Technical reference
| Product name | Allen-Bradley 20G11TD430JN0NNNNN PowerFlex 755 480 V AC 350 hp Drive Power Structure |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G11TD430JN0NNNNN |
| Category | Variable Frequency Drives |
| Input configuration | AC input with precharge and DC terminals |
| Drive frame | 8 |
| Nominal input voltage | 480 V AC, three-phase |
| Rated motor output | 430 A continuous, 350 hp normal duty; 300 hp heavy duty |
| Operator interface | No factory-fitted HIM |
| Braking hardware | No internal braking transistor; braking resistor not included |
| Configured enclosure | IP00, UL Open Type, without control POD |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper installed |
| Protection and cooling | Standard corrosive-gas protection; forced-air cooling |
