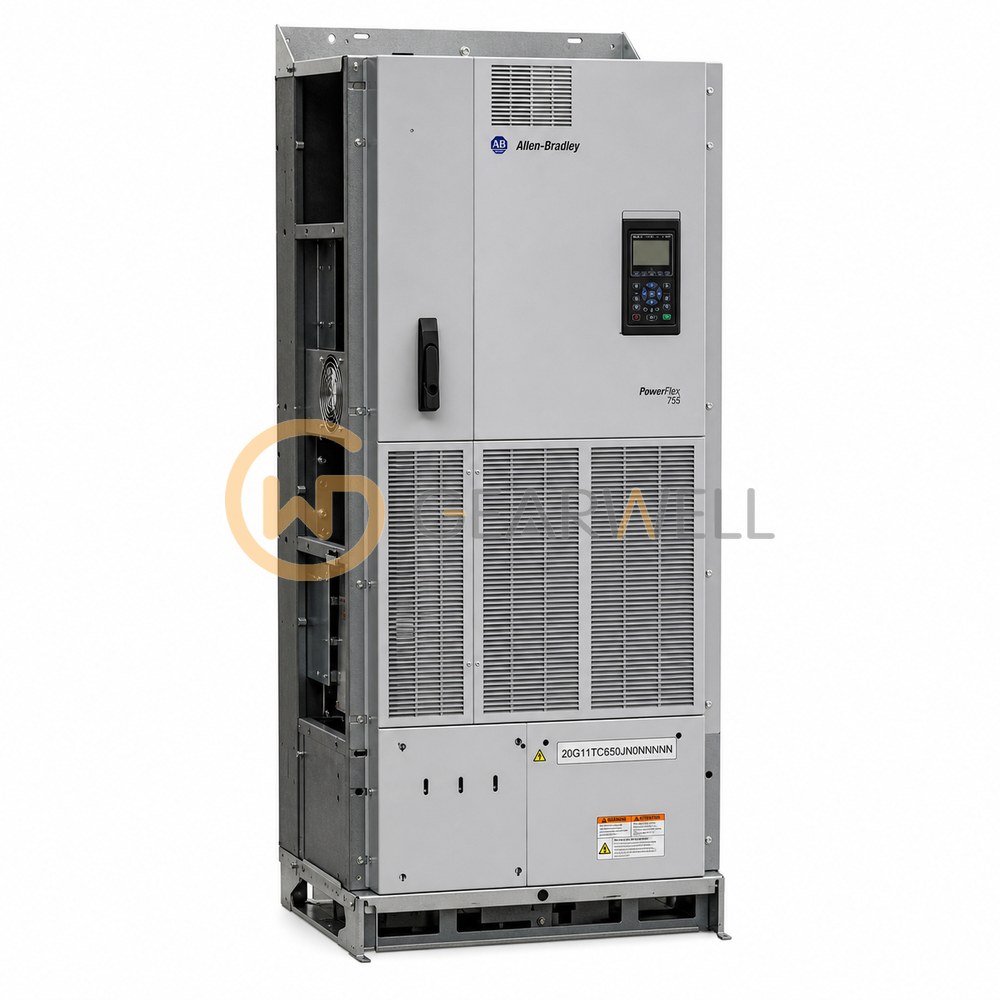

Allen-Bradley 20G11TC650JN0NNNNN PowerFlex 755 400 V AC 355 kW Drive Power Structure

Product overview

The Allen-Bradley 20G11TC650JN0NNNNN is a PowerFlex 755 floor-mount base drive for open frame designs (IP00, UL Open Type without control POD) for the 400 V AC / 540 V DC class, with AC input with precharge and DC terminals. One base drive is rated 750 A and 400 kW for light duty, 650 A and 355 kW for normal duty and 540 A and 315 kW for heavy duty, the equivalent of a frame 8 drive; ordered in a quantity of 2 or 3, the same base drive builds the frame 9 or frame 10 equivalent ratings. This version has filtering with the common mode capacitor jumper installed and no internal dynamic braking transistor. Open frame drives use the same drive units as the standard IP20 and IP54 products, cover applications from 215 kW to 1500 kW (250…2000 Hp) and are installed in an enclosure of your choosing; Rockwell requires a roll-out cart to install frame 8…10 drives. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
