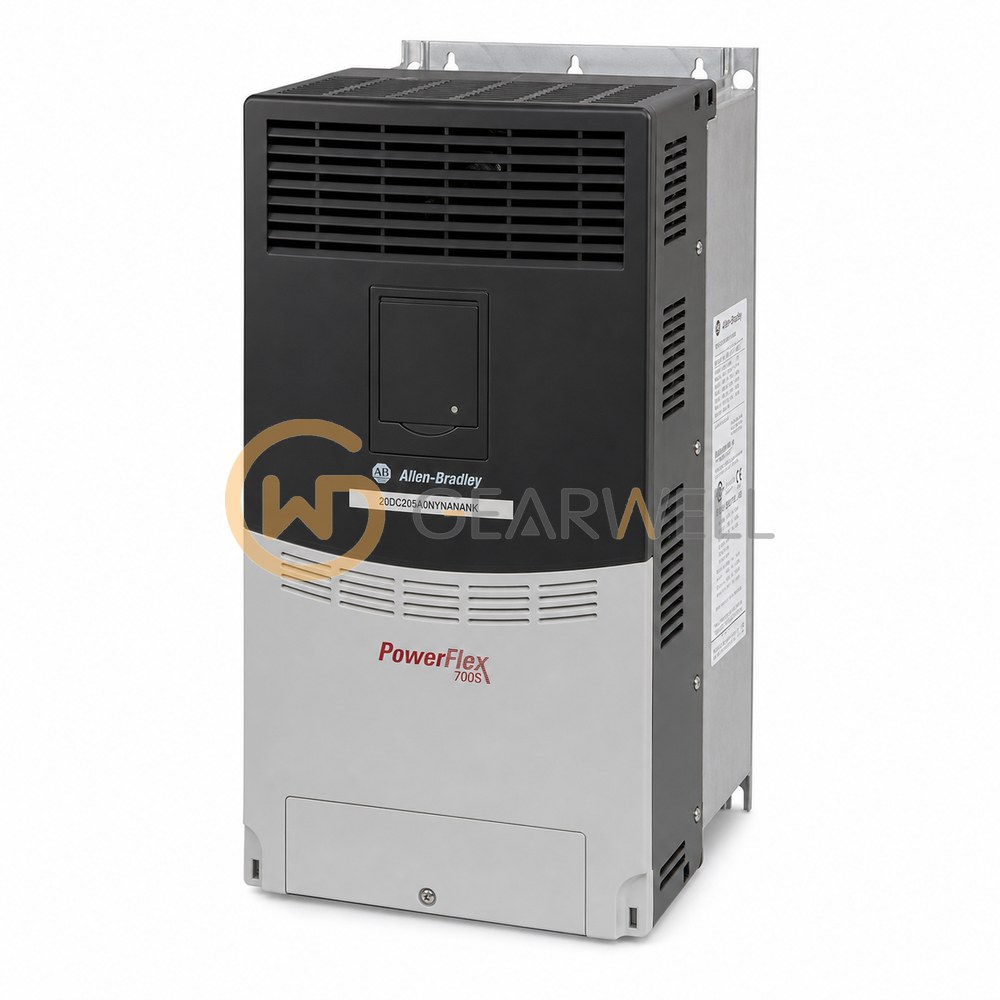

Allen-Bradley 20DC205A0NYNANANK PowerFlex 700S 400 V AC 110 kW Drive

Product overview

The Allen-Bradley 20DC205A0NYNANANK is a PowerFlex 700S AC drive from Rockwell's PowerFlex family. At 380…400 V AC 3-phase input it is rated 110 kW normal duty and 90 kW heavy duty, with 205 A continuous output current, 220 A for 1 minute and 289 A for 3 seconds; in heavy duty it delivers 170 A continuous, 255 A for 1 minute and 313 A for 3 seconds. It is an IP20, NEMA/UL Type 1 drive with conformal coating in frame 6, rated for 0…50 °C surrounding air as IP20 or 0…40 °C as NEMA/UL Type 1 without derating. The 205 A rating at 380…400 V is limited to 40 °C surrounding air. It is supplied with a blank cover instead of a HIM. It has an internal brake IGBT but no brake resistor. It has an integral CE EMC filter and common mode choke. No communication adapter is fitted in the comm slot. It has the expanded control cassette without Logix expansion or SynchLink, the standard incremental encoder interface, and Phase II control with DriveLogix 5730. DriveLogix adds embedded Logix control with ladder diagram, function block diagram, sequential function chart and structured text, 1.5 Mb of standard user memory and local connections for up to 16 Compact I/O modules. Motor control is field-oriented control with or without a feedback device and permanent magnet motor control, with 0…400 Hz output frequency, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection. It is supplied without documentation.
