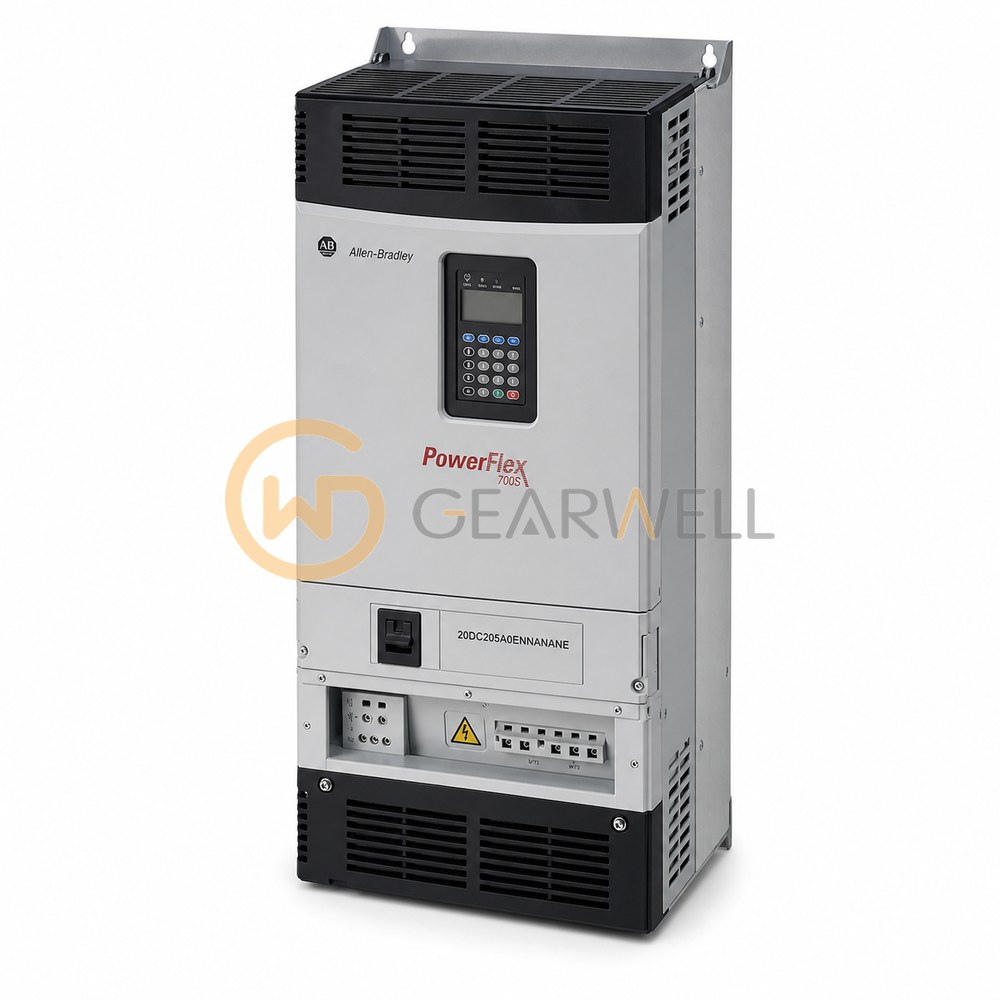

Allen-Bradley 20DC205A0ENNANANE PowerFlex 700S 400 V AC 110 kW Drive

Product overview

The Allen-Bradley 20DC205A0ENNANANE is a PowerFlex 700S AC drive from Rockwell's PowerFlex family. At 380…400 V AC 3-phase input it is rated 110 kW normal duty and 90 kW heavy duty, with 205 A continuous output current, 220 A for 1 minute and 289 A for 3 seconds; in heavy duty it delivers 170 A continuous, 255 A for 1 minute and 313 A for 3 seconds. It is an IP20, NEMA/UL Type 1 drive with conformal coating in frame 6, rated for 0…50 °C surrounding air as IP20 or 0…40 °C as NEMA/UL Type 1 without derating. The 205 A rating at 380…400 V is limited to 40 °C surrounding air. It is supplied with a blank cover instead of a HIM. It is supplied without the brake IGBT, which is optional on frames 4…9. It has an integral CE EMC filter and common mode choke. No communication adapter is fitted in the comm slot. It has the expanded control cassette without Logix expansion or SynchLink, the standard incremental encoder interface, and Phase II control. Motor control is field-oriented control with or without a feedback device and permanent magnet motor control, with 0…400 Hz output frequency, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
