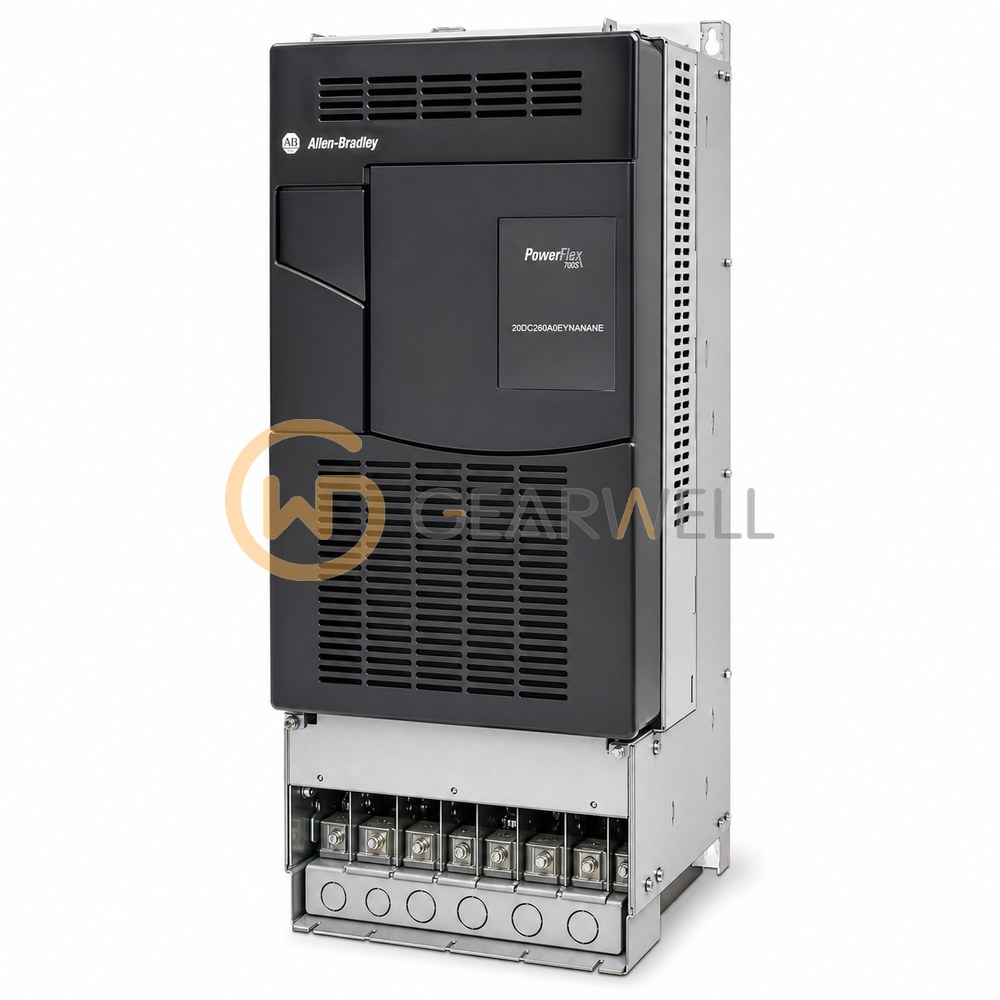

Allen-Bradley 20DC260A0EYNANANE PowerFlex 700S 400 V AC 132 kW Drive

Product overview

The Allen-Bradley 20DC260A0EYNANANE is a PowerFlex 700S AC drive from Rockwell's PowerFlex family. At 380…400 V AC 3-phase input it is rated 132 kW normal duty and 110 kW heavy duty, with 260 A continuous output current, 286 A for 1 minute and 390 A for 3 seconds; in heavy duty it delivers 205 A continuous, 308 A for 1 minute and 410 A for 3 seconds. It is an IP20, NEMA/UL Type 1 drive with conformal coating in frame 6, rated for 0…50 °C surrounding air as IP20 or 0…40 °C as NEMA/UL Type 1 without derating. It is supplied with a blank cover instead of a HIM. It has an internal brake IGBT but no brake resistor. It has an integral CE EMC filter and common mode choke. No communication adapter is fitted in the comm slot. It has the expanded control cassette without Logix expansion or SynchLink, the standard incremental encoder interface, and Phase II control. Motor control is field-oriented control with or without a feedback device and permanent magnet motor control, with 0…400 Hz output frequency, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
