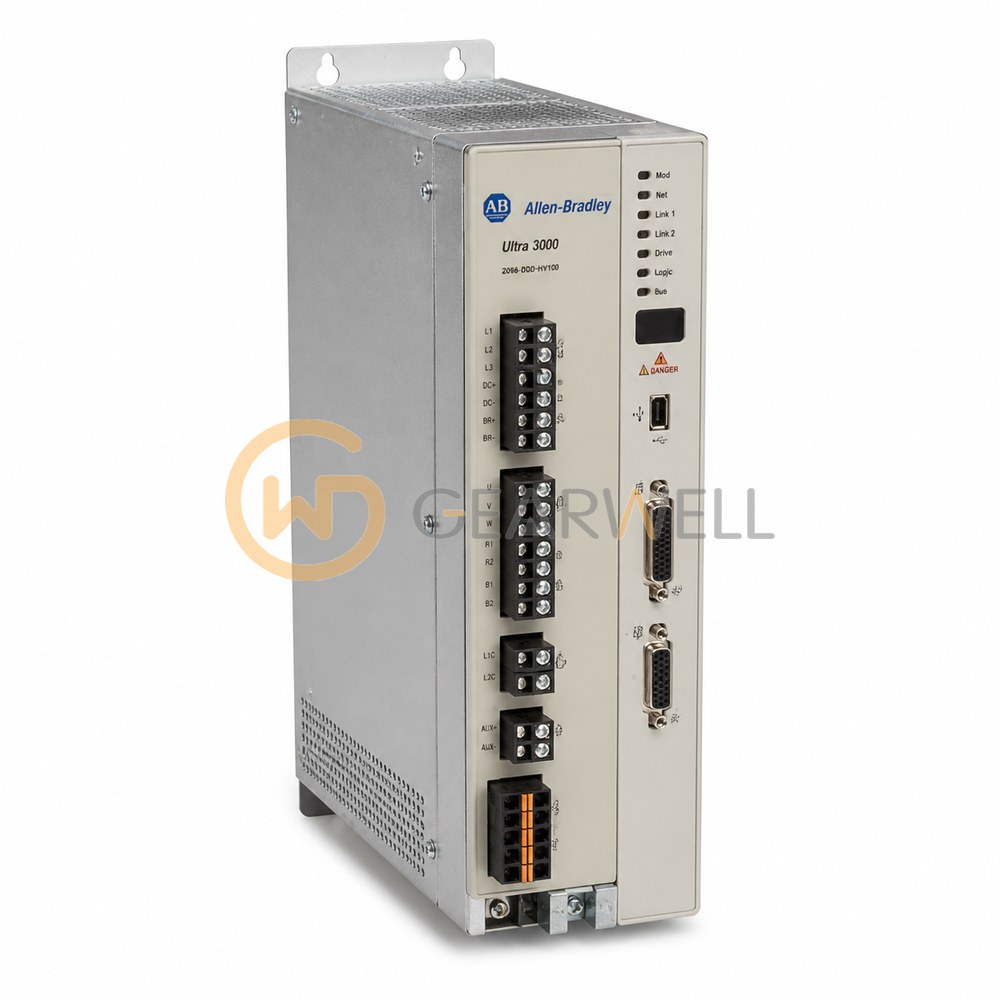

Allen-Bradley 2098-DSD-HV100 Ultra3000 10 kW Analog Servo Drive
- Brand
- Allen-Bradley
- Model
- 2098DSDHV100
- GEARWELL SKU
- GWP-000002634
- Category
- Servo Systems
Key specifications
- Drive weight
- 10.44 kg
- Product type
- Ultra3000 digital servo drive
- Voltage class
- 400 V class
- AC input voltage
- 230...480 V rms, three-phase
- Command interface
- Analog command interface
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2098-DSD-HV100 is an Ultra3000 servo drive from Rockwell's Ultra3000 digital servo drive family. It accepts 230…480V rms three-phase input and delivers 23 A continuous and 46 A intermittent output current (0-pk), with 10 kW continuous power output at 460V AC input. It is configured with Ultraware software. Operating ambient temperature is 0…55 °C and it weighs 10.44 kg.
Technical reference
| Product name | Allen-Bradley 2098-DSD-HV100 Ultra3000 10 kW Analog Servo Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 2098DSDHV100 |
| Category | Servo Systems |
| Drive weight | 10.44 kg |
| Product type | Ultra3000 digital servo drive |
| Voltage class | 400 V class |
| AC input voltage | 230...480 V rms, three-phase |
| Command interface | Analog command interface |
| AC input frequency | 47...63 Hz |
| DC bus capacitance | 705 µF |
| Operating altitude | 1500 m; derate 3% per 300 m above 1500 m |
| Peak output current | 46 A (0-pk) |
| Operating ambient temperature | 0...55 °C |
| Continuous power output | 5.0 kW at 230 V AC; 10 kW at 480 V AC |
| Nominal main AC input current | 14 A rms at 460 V AC |
| Continuous output current | 23 A (0-pk) |
