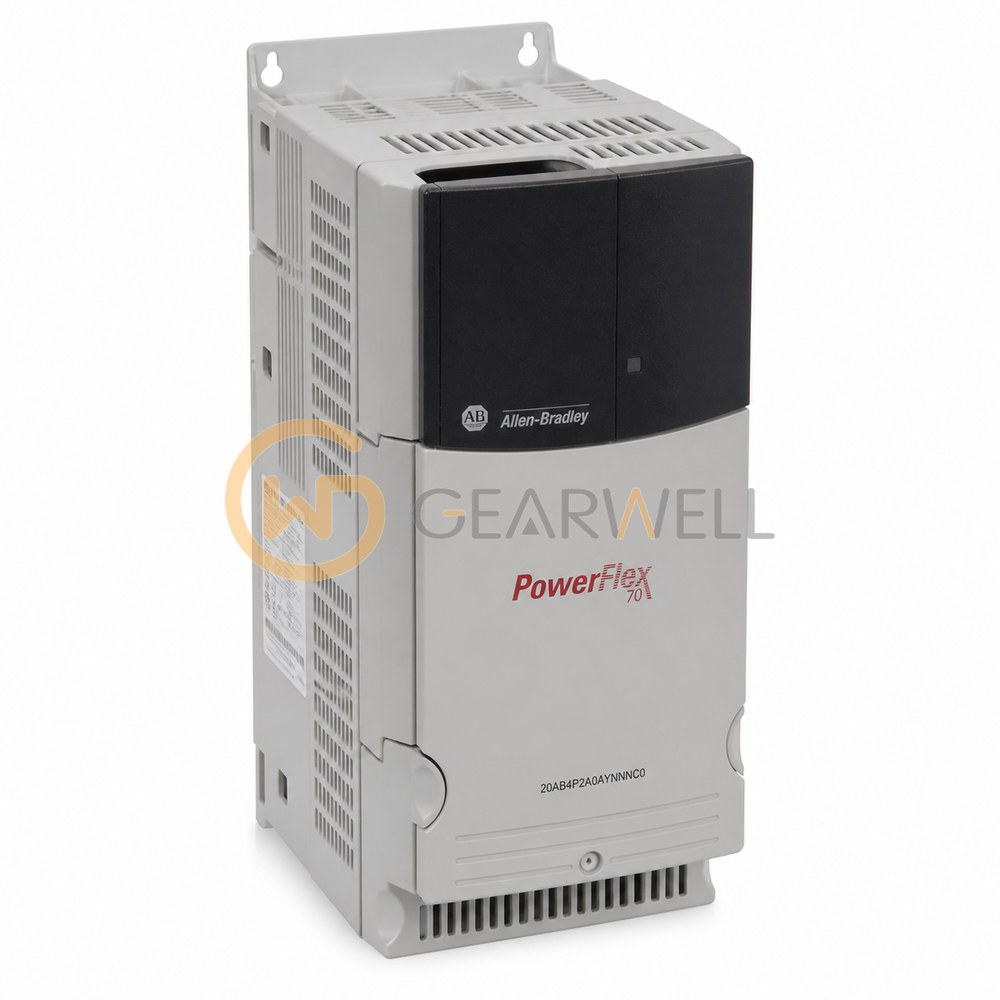

Allen-Bradley 20AB4P2A0AYNNNC0 PowerFlex 70 240 V 1 hp AC Drive

Product overview

The Allen-Bradley 20AB4P2A0AYNNNC0 is a PowerFlex 70 AC drive from Rockwell's PowerFlex family. At 240 V AC 3-phase input it is rated 1 HP normal duty and 0.75 HP heavy duty, with 4.2 A continuous output current, 4.8 A for 60 s and 6.4 A for 3 s. Programmed for 208 V input it delivers 4.8 A continuous, rated 0.75 kW normal duty. It is a panel-mount IP20, NEMA/UL Type 1 drive in frame A, rated for 0…50 °C surrounding air without derating. Conformal coating is standard. It is supplied with a blank cover instead of a HIM. It has an internal brake IGBT but no internal brake resistor, and is supplied without the integral EMC filter. No internal communication adapter is fitted. It has the enhanced control option. Motor control is volts per hertz, sensorless vector or vector control with FORCE Technology, with a 0…500 Hz output frequency range, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
