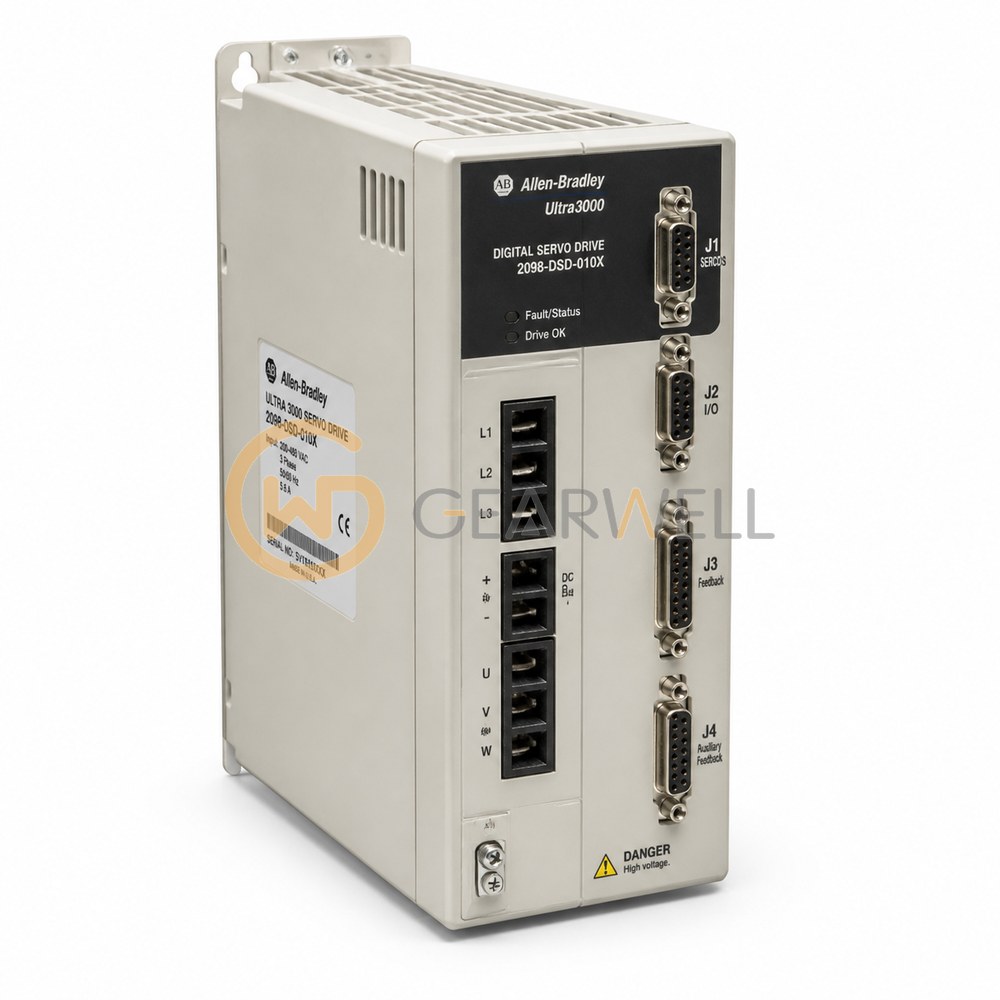

Allen-Bradley 2098-DSD-010X Ultra3000 1 kW Indexing Servo Drive
- Brand
- Allen-Bradley
- Model
- 2098-DSD-010X
- GEARWELL SKU
- GWP-000000773
- Category
- Servo Systems
Key specifications
- Drive weight
- 2.1 kg
- Product type
- Ultra3000 digital servo drive
- Voltage class
- 200 V class
- AC input voltage
- 100...240 V rms, single-phase
- Command interface
- Standalone indexing control
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2098-DSD-010X is an Ultra3000 servo drive with indexing from Rockwell's Ultra3000 digital servo drive family. It accepts 100…240V rms single-phase input and delivers 5 A continuous and 15 A intermittent output current (0-pk), with 1.0 kW continuous power output at 230V AC input. It adds indexing and is configured with Ultraware software. Operating ambient temperature is 0…55 °C and it weighs 2.1 kg.
Technical reference
| Product name | Allen-Bradley 2098-DSD-010X Ultra3000 1 kW Indexing Servo Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 2098-DSD-010X |
| Category | Servo Systems |
| Drive weight | 2.1 kg |
| Product type | Ultra3000 digital servo drive |
| Voltage class | 200 V class |
| AC input voltage | 100...240 V rms, single-phase |
| Command interface | Standalone indexing control |
| AC input frequency | 47...63 Hz |
| DC bus capacitance | 1880 µF |
| Operating altitude | 1500 m; derate 3% per 300 m above 1500 m |
| Peak output current | 10.6 A rms |
| Operating ambient temperature | 0...55 °C |
| Continuous power output | 0.5 kW at 115 V AC; 1.0 kW at 230 V AC |
| Nominal AC input current | 9 A rms |
| Continuous output current | 3.5 A rms |
