Allen-Bradley 2098-DSD-030-SE/B Ultra3000 SERCOS Servo Drive
- Brand
- Allen-Bradley
- Model
- 2098-DSD-030-SE/B
- GEARWELL SKU
- GWP-000014720
- Category
- Servo Systems
Key specifications
- Series
- B (as collected)
- Description
- Ultra 3000 3kW with SERCOS Servo Drive
- Catalog number
- 2098-DSD-030-SE
- Lifecycle status (Rockwell Automation)
- Discontinued
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

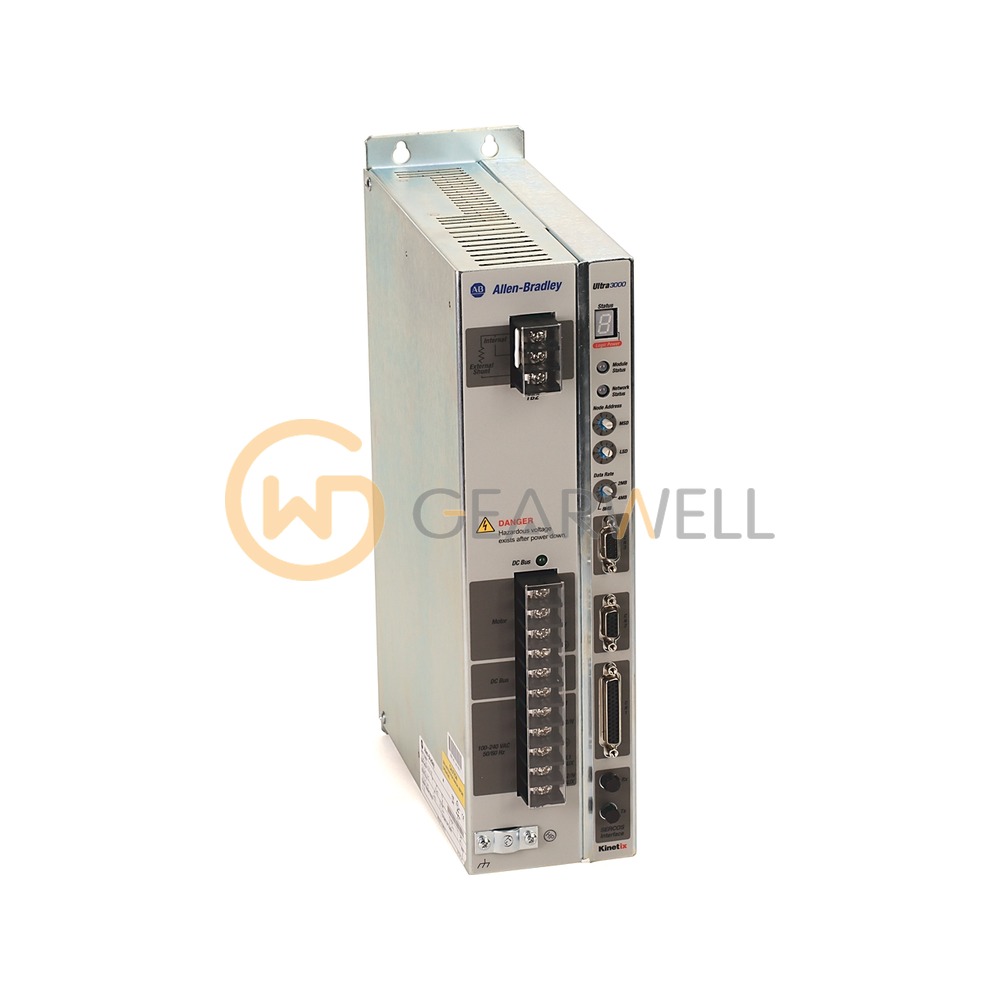

The Allen-Bradley 2098-DSD-030-SE is the Ultra3000 digital servo drive with SERCOS interface for 230V, 3 kW. It takes 100…240V rms single-phase AC at 47…63 Hz (28 A nominal input current) and gives 15 A continuous and 30 A intermittent output current (0-pk) and 3 kW continuous output power at 230V ac input. The internal shunt is 35 Ω, 50 W continuous, and the bus capacitance is 2820 μF as corrected in errata 2098-DU003B. It weighs 6.2 kg and operates from 0° C to 55° C. This product page adds the suffix /B to the catalog number; confirm the series letter on the drive label.
Technical reference
| Product name | Allen-Bradley 2098-DSD-030-SE/B Ultra3000 SERCOS Servo Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 2098-DSD-030-SE/B |
| Category | Servo Systems |
| Series | B (as collected) |
| Description | Ultra 3000 3kW with SERCOS Servo Drive |
| Catalog number | 2098-DSD-030-SE |
| Lifecycle status (Rockwell Automation) | Discontinued |
