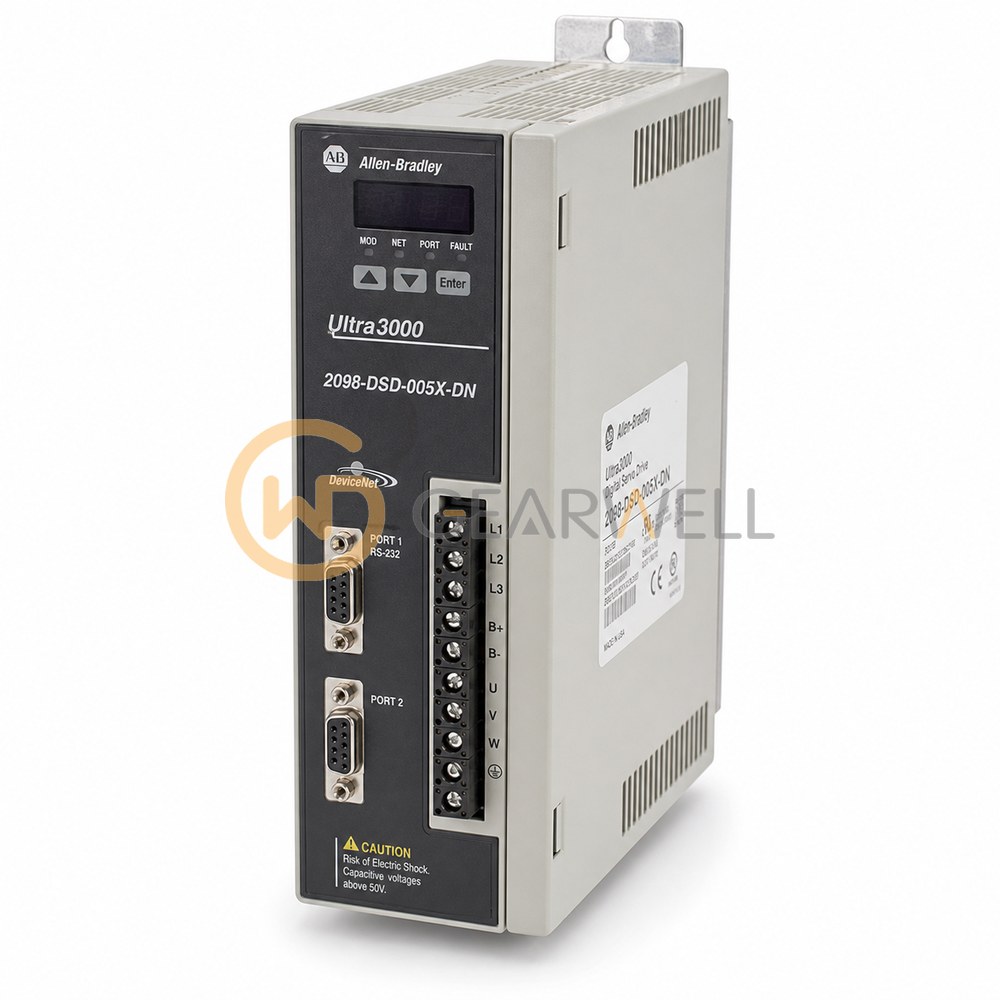

Allen-Bradley 2098-DSD-005X-DN Ultra3000 0.5 kW DeviceNet Indexing Servo Drive
- Brand
- Allen-Bradley
- Model
- 2098-DSD-005X-DN
- GEARWELL SKU
- GWP-000002242
- Category
- Servo Systems
Key specifications
- Drive weight
- 1.8 kg
- Product type
- Ultra3000 digital servo drive
- Voltage class
- 200 V class
- AC input voltage
- 100...240 V rms, single-phase
- Command interface
- Standalone indexing with DeviceNet
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2098-DSD-005X-DN is an Ultra3000-DN servo drive with indexing and DeviceNet from Rockwell's Ultra3000 digital servo drive family. It accepts 100…240V rms single-phase input and delivers 2.5 A continuous and 7.5 A intermittent output current (0-pk), with 0.5 kW continuous power output at 230V AC input. It adds indexing on a DeviceNet network and is configured with Ultraware software. Operating ambient temperature is 0…55 °C and it weighs 1.8 kg.
Technical reference
| Product name | Allen-Bradley 2098-DSD-005X-DN Ultra3000 0.5 kW DeviceNet Indexing Servo Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 2098-DSD-005X-DN |
| Category | Servo Systems |
| Drive weight | 1.8 kg |
| Product type | Ultra3000 digital servo drive |
| Voltage class | 200 V class |
| AC input voltage | 100...240 V rms, single-phase |
| Command interface | Standalone indexing with DeviceNet |
| AC input frequency | 47...63 Hz |
| DC bus capacitance | 1410 µF |
| Operating altitude | 1500 m; derate 3% per 300 m above 1500 m |
| Peak output current | 5.3 A rms |
| Operating ambient temperature | 0...55 °C |
| Continuous power output | 0.25 kW at 115 V AC; 0.5 kW at 230 V AC |
| Nominal AC input current | 5 A rms |
| Continuous output current | 1.8 A rms |
