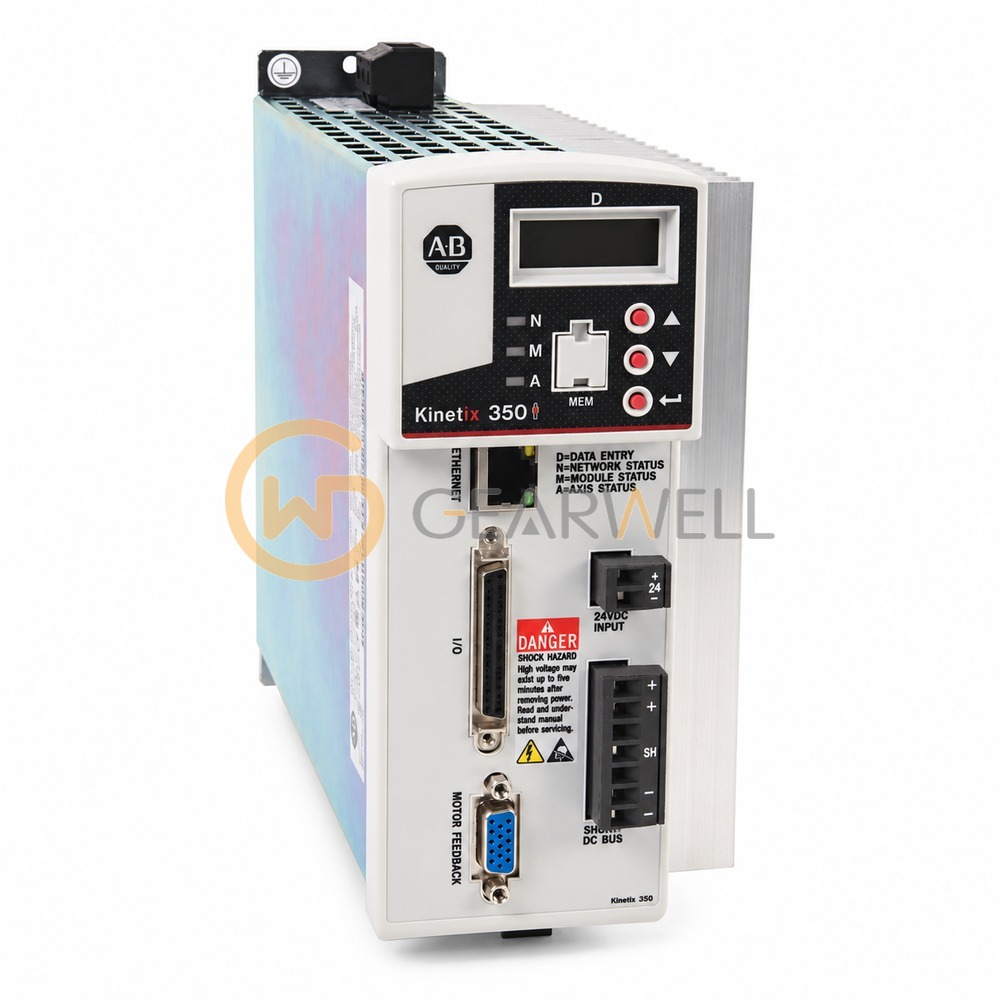

Allen-Bradley 2097-V32PR4-LM Kinetix 350 Servo Drive
- Brand
- Allen-Bradley
- Model
- 2097-V32PR4-LM
- GEARWELL SKU
- GWP-000002090
- Category
- Servo Systems
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2097-V32PR4-LM is a Kinetix 350 servo drive from Rockwell's Kinetix servo drive family. It is a single-axis EtherNet/IP servo drive for ControlLogix controllers with Integrated Motion on EtherNet/IP, for 240V single-phase, integrated AC line filter input, rated 8.0 A rms continuous and 24.0 A rms peak output current (peak allowed for up to 2 seconds at 50% duty cycle) with 1.70 kW continuous power output at 240V nom. It has Safe Torque Off, 20…26V DC control power back-up input and a 0…40 °C operating ambient temperature.
Technical reference
| Product name | Allen-Bradley 2097-V32PR4-LM Kinetix 350 Servo Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 2097-V32PR4-LM |
| Category | Servo Systems |
