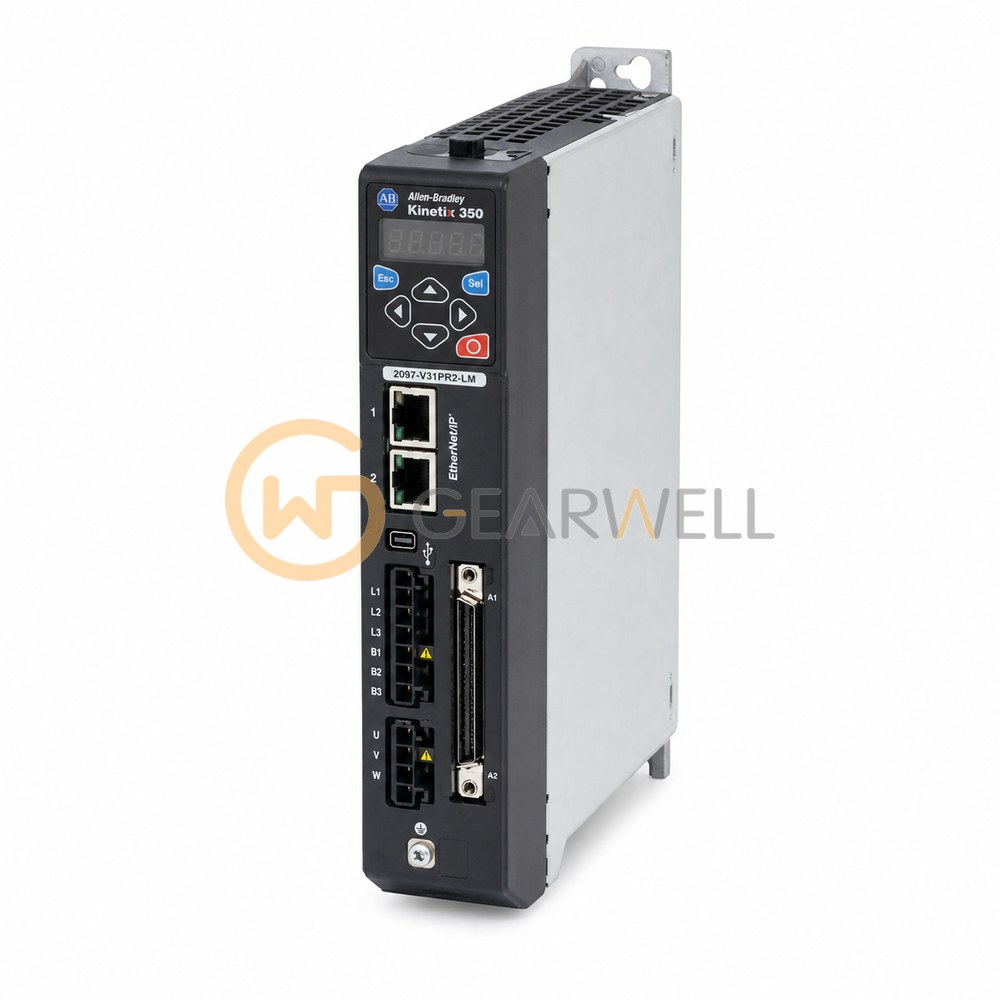

Allen-Bradley 2097-V31PR2-LM Kinetix 350 0.80 kW EtherNet/IP Servo Drive
- Brand
- Allen-Bradley
- Model
- 2097-V31PR2-LM
- GEARWELL SKU
- GWP-000000519
- Category
- Industrial Automation Parts
Key specifications
- Continuous power output
- 0.80 kW at 240 V AC or 120 V voltage-doubler mode
- Motion control
- Integrated Motion on EtherNet/IP
- Product type
- Kinetix 350 single-axis EtherNet/IP servo drive
- AC input voltage
- 70-132 V AC single-phase (120 V voltage-doubler mode); 80-264 V AC single-phase (120/240 V nominal)
- Lifecycle status
- Discontinued
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2097-V31PR2-LM is a Kinetix 350 servo drive from Rockwell's Kinetix servo drive family. It is a single-axis EtherNet/IP servo drive for ControlLogix controllers with Integrated Motion on EtherNet/IP, for 120/240V single-phase (120V voltage-doubler) input, rated 4.0 A rms continuous and 12.0 A rms peak output current (peak allowed for up to 2 seconds at 50% duty cycle) with 0.80 kW continuous power output at 240V nom. It has Safe Torque Off, 20…26V DC control power back-up input and a 0…40 °C operating ambient temperature.
Technical reference
| Product name | Allen-Bradley 2097-V31PR2-LM Kinetix 350 0.80 kW EtherNet/IP Servo Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 2097-V31PR2-LM |
| Category | Industrial Automation Parts |
| Continuous power output | 0.80 kW at 240 V AC or 120 V voltage-doubler mode |
| Motion control | Integrated Motion on EtherNet/IP |
| Product type | Kinetix 350 single-axis EtherNet/IP servo drive |
| AC input voltage | 70-132 V AC single-phase (120 V voltage-doubler mode); 80-264 V AC single-phase (120/240 V nominal) |
| Lifecycle status | Discontinued |
| Peak output current | 12 A rms; up to 2 s at 50% duty cycle |
| Drive configuration | Kinetix 350 single-axis servo drive for Integrated Motion on EtherNet/IP |
| Integrated AC line filter | Not included |
| Continuous output current | 4 A rms |
