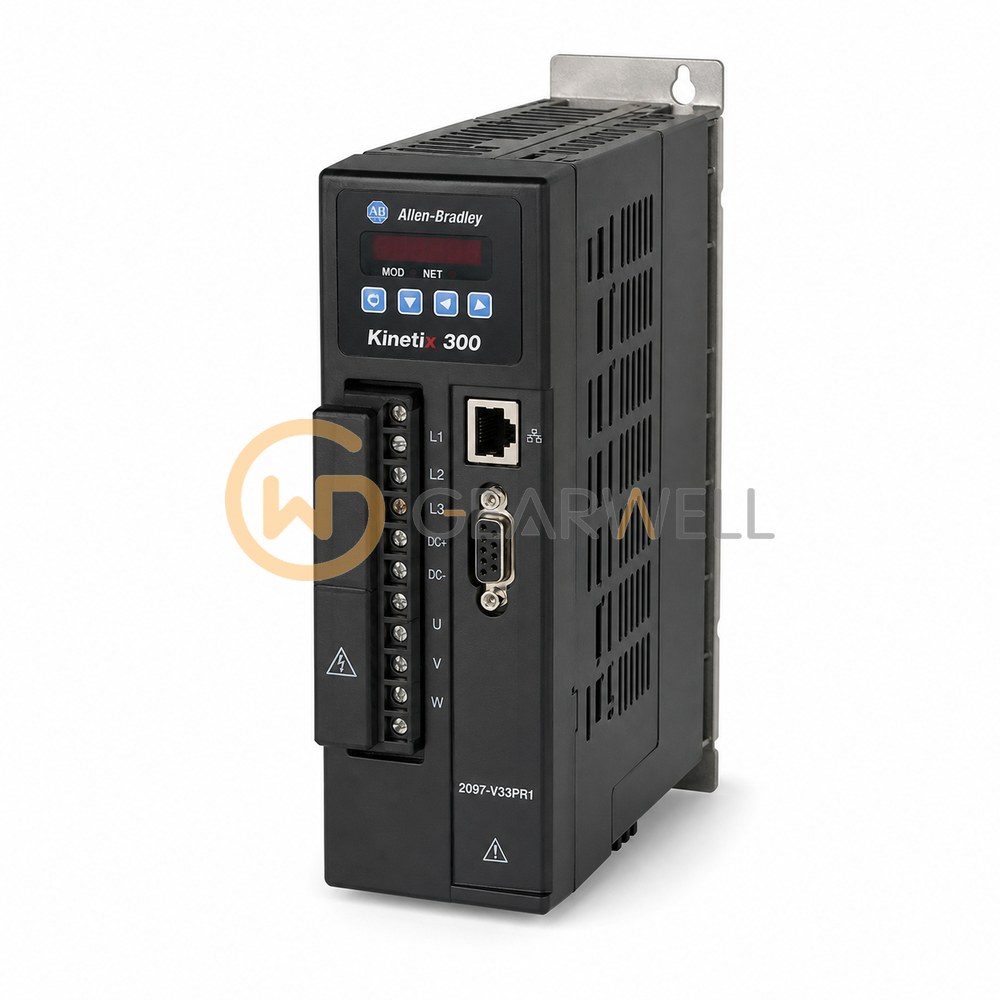

Allen-Bradley 2097-V33PR1 Servo Drive
- Brand
- Allen-Bradley
- Model
- 2097-V33PR1
- GEARWELL SKU
- GWP-000003738
- Category
- Servo Systems
Key specifications
- Product type
- Kinetix 300 EtherNet/IP indexing servo drive
- AC input voltage
- 80...264 V AC single- or three-phase (120/240 V nominal)
- Network interface
- EtherNet/IP
- AC input frequency
- 48...62 Hz
- Peak output current
- 6.0 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2097-V33PR1 is a Kinetix 300 servo drive from Rockwell's Kinetix servo drive family. It is a EtherNet/IP indexing servo drive for low axis-count motion, for 120/240V single-phase or 240V three-phase input, rated 2.0 A rms continuous and 6.0 A rms peak output current (peak allowed for up to 2 seconds at 50% duty cycle) with 0.50 kW continuous power output at 240V nom. It has Safe Torque Off, 20…26V DC control power back-up input and a 0…40 °C operating ambient temperature.
Technical reference
| Product name | Allen-Bradley 2097-V33PR1 Servo Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 2097-V33PR1 |
| Category | Servo Systems |
| Product type | Kinetix 300 EtherNet/IP indexing servo drive |
| AC input voltage | 80...264 V AC single- or three-phase (120/240 V nominal) |
| Network interface | EtherNet/IP |
| AC input frequency | 48...62 Hz |
| Peak output current | 6.0 A |
| Backup control power | 20...26 V DC |
| Continuous power output | 0.50 kW |
| Continuous output current | 2.0 A |
