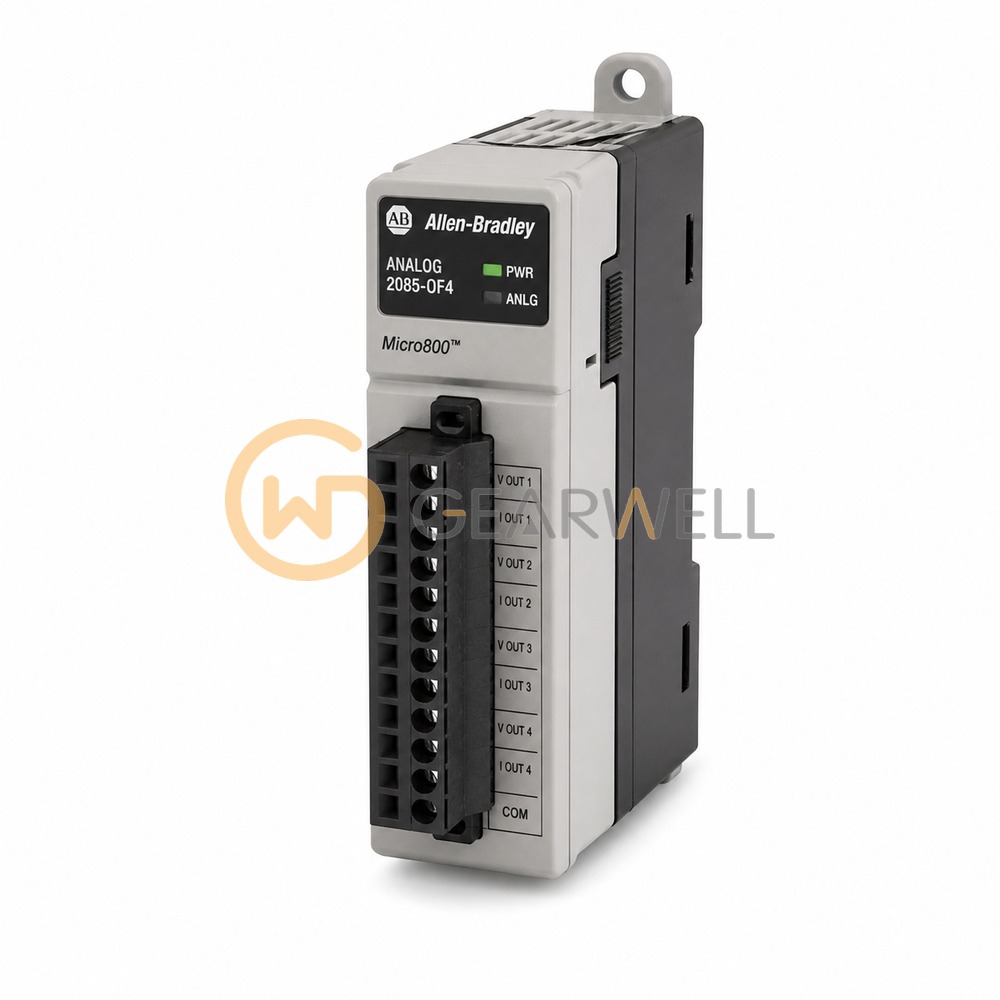

Allen-Bradley 2085-OF4 Micro800 Analog Output Module

Product overview

The Allen-Bradley 2085-OF4 is a 4-channel analog output module with 12-bit resolution, isolated from the field wiring. Each channel can be set for ±10V, 0…10V, 4…20 mA or 0…20 mA, and current outputs drive 15…500 Ω loads. Bus current draw is 160 mA at 5V DC and 120 mA at 24V DC, and total power dissipation is 3.7 W. It extends Micro850 and Micro870 controllers, is an open-style module rated for -20…+65 °C operating, and the last module in the system takes a 2085-ECR bus terminator.
