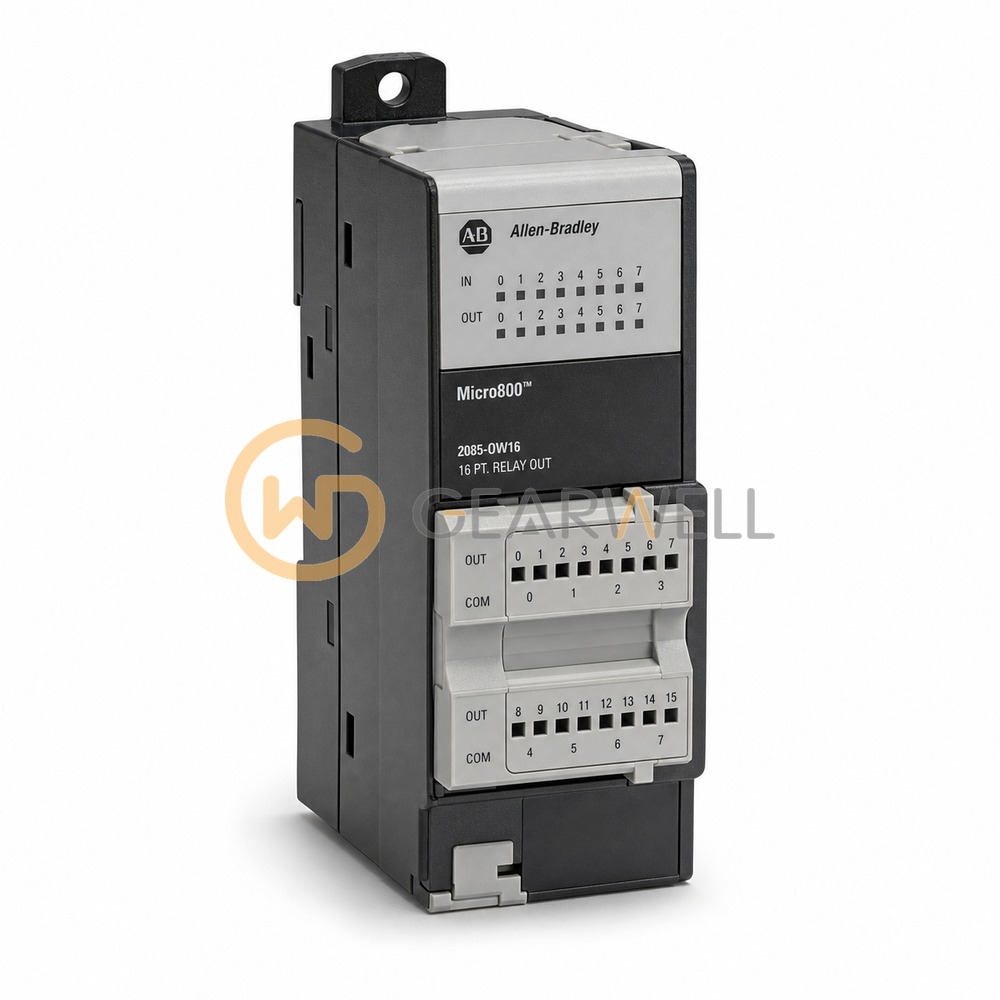

Allen-Bradley 2085-OW16 Micro800 Relay Output Module
- Brand
- Allen-Bradley
- Model
- 2085-OW16
- GEARWELL SKU
- GWP-000002229
- Category
- PLCs & I/O
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2085-OW16 is a 16-point AC/DC relay output module with 2 A maximum load current per output; contacts are rated 15 A make and 1.5 A break at 120V AC, and 1.0 A at 24V DC. Bus current draw is 160 mA at 5V DC and 100 mA at 24V DC, and total power dissipation is 5.14 W. It extends Micro850 and Micro870 controllers, is an open-style module rated for -20…+65 °C operating, and the last module in the system takes a 2085-ECR bus terminator.
Technical reference
| Product name | Allen-Bradley 2085-OW16 Micro800 Relay Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 2085-OW16 |
| Category | PLCs & I/O |
