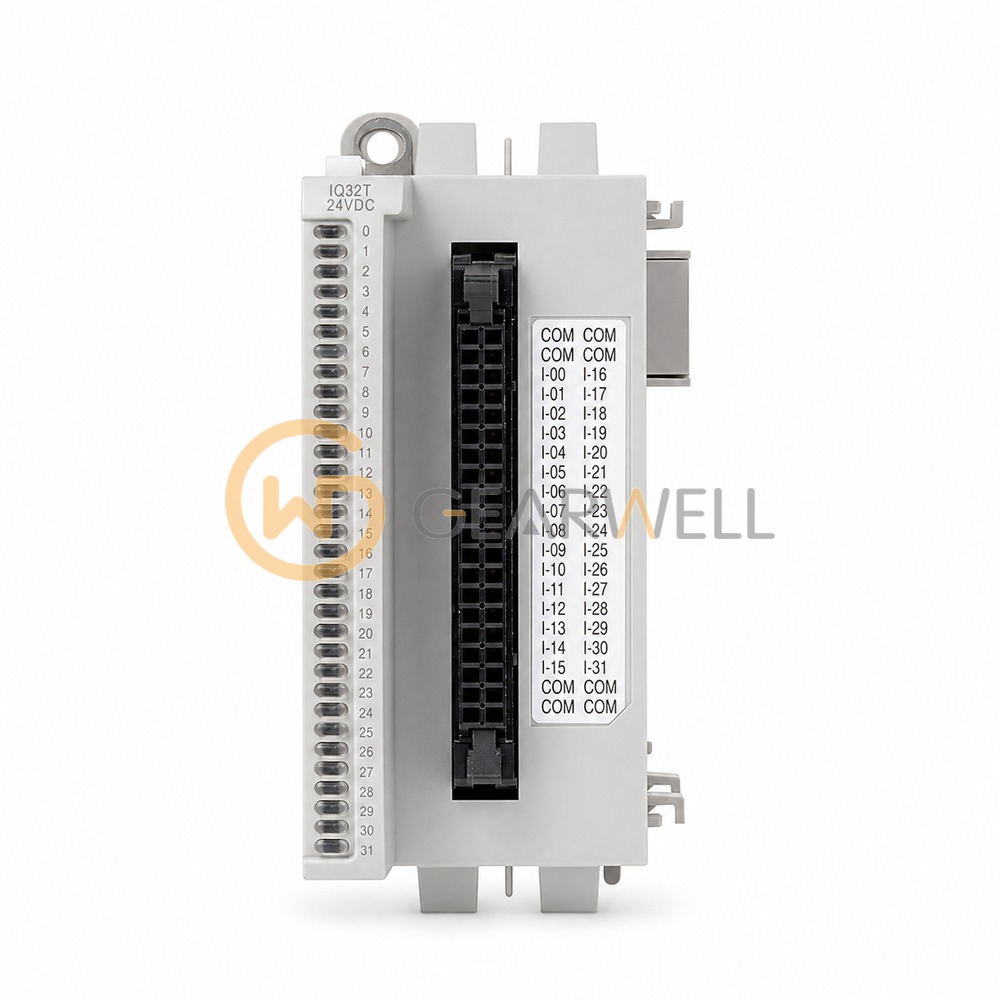

Allen-Bradley 2085-IQ32T Micro800 32-Point Digital Input Module
- Brand
- Allen-Bradley
- Model
- 2085-IQ32T
- GEARWELL SKU
- GWP-000000125
- Category
- PLCs & I/O
Key specifications
- Input voltage
- 12/24 VDC
- Digital inputs
- 32
- Temperature rating
- -20 to 65 °C
- Input configuration
- Sink/source
- I/O status indication
- LED
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2085-IQ32T is a 32-point 12/24V DC sink/source input module. Inputs work on 10…30V DC or 21.6…26.4V AC (Class 2), draw 5.2 mA at 24V DC and meet IEC Type 1. Bus current draw is 190 mA at 5V DC and total power dissipation is 7 W; above 30 °C the number of inputs that can be on at once is derated. It extends Micro850 and Micro870 controllers, is an open-style module rated for -20…+65 °C operating, and the last module in the system takes a 2085-ECR bus terminator.
Technical reference
| Product name | Allen-Bradley 2085-IQ32T Micro800 32-Point Digital Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 2085-IQ32T |
| Category | PLCs & I/O |
| Input voltage | 12/24 VDC |
| Digital inputs | 32 |
| Temperature rating | -20 to 65 °C |
| Input configuration | Sink/source |
| I/O status indication | LED |
