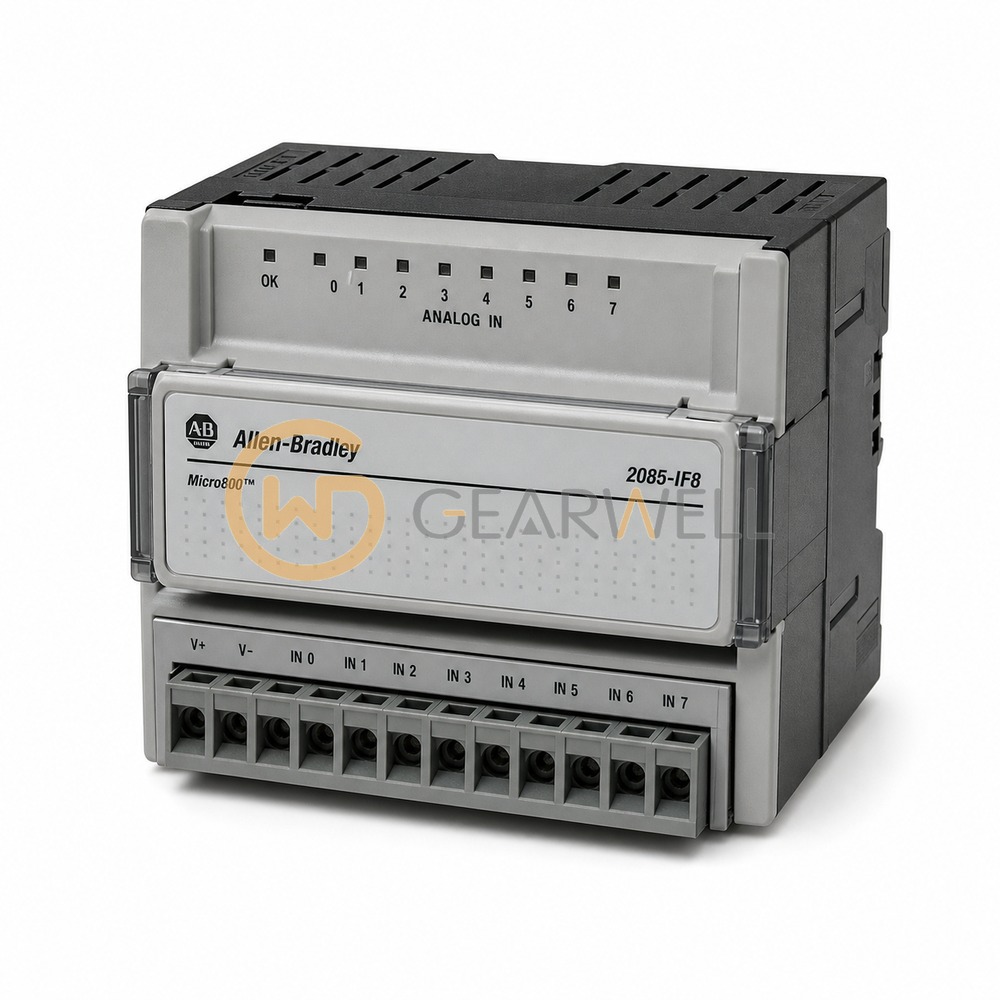

Allen-Bradley 2085-IF8 Micro800 Analog Input Module
- Brand
- Allen-Bradley
- Model
- 2085-IF8
- GEARWELL SKU
- GWP-000003029
- Category
- PLCs & I/O
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2085-IF8 is an 8-channel analog input module with 14-bit resolution, isolated from the field wiring. Each channel can be set for ±10V, 0…10V, 4…20 mA or 0…20 mA, and absolute accuracy is ±0.10% of full scale at 25 °C. Bus current draw is 110 mA at 5V DC and 50 mA at 24V DC. It extends Micro850 and Micro870 controllers, is an open-style module rated for -20…+65 °C operating, and the last module in the system takes a 2085-ECR bus terminator.
Technical reference
| Product name | Allen-Bradley 2085-IF8 Micro800 Analog Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 2085-IF8 |
| Category | PLCs & I/O |
