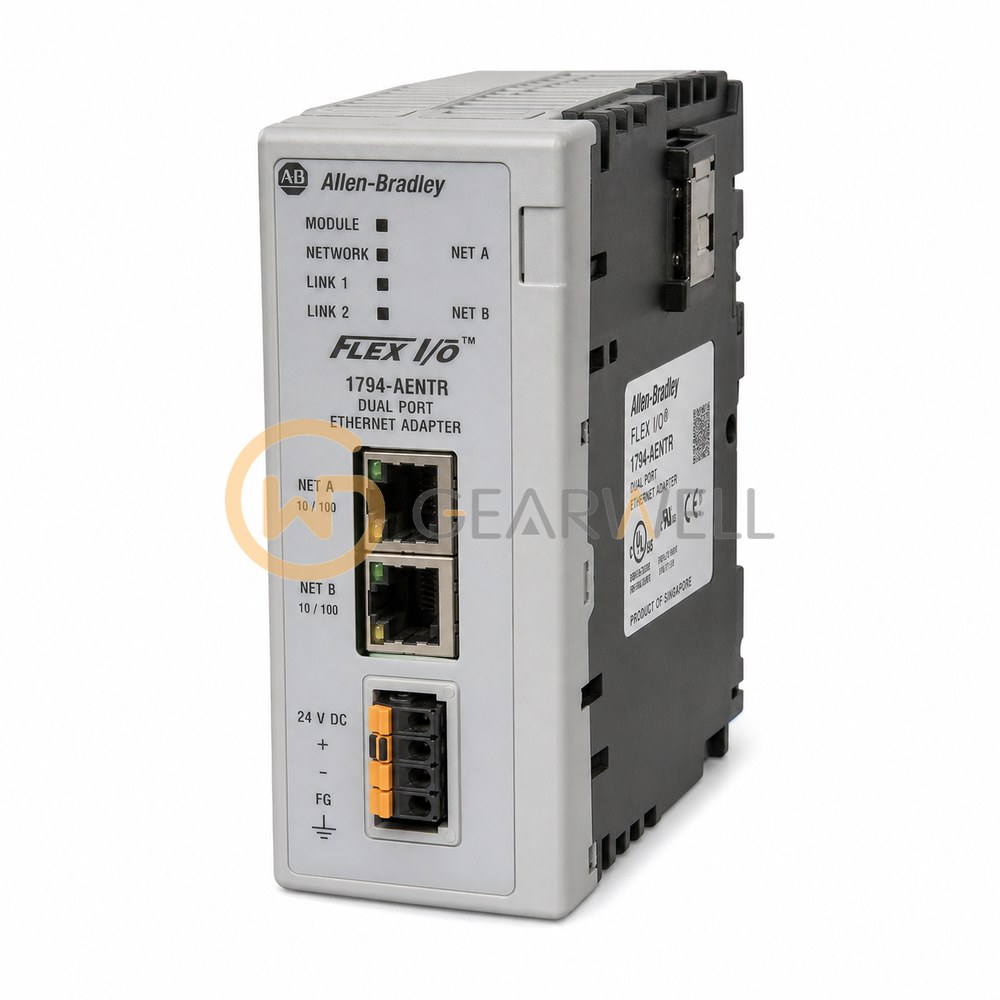

Allen-Bradley 1794-AENTR FLEX I/O Dual-Port EtherNet/IP Adapter
- Brand
- Allen-Bradley
- Model
- 1794AENTR
- GEARWELL SKU
- GWP-000001352
- Category
- PLCs & I/O
Key specifications
- I/O module capacity (Series A)
- Up to 8 FLEX I/O modules.
- Product type
- FLEX I/O dual-port EtherNet/IP adapter
- Input voltage (Series A)
- 24 V DC nominal; 19.2…31.2 V DC, including 5% AC ripple.
- Ethernet ports (Series A)
- 2 RJ45 Category 5 ports.
- Maximum Flexbus output (Series A)
- 640 mA at 5 V DC.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-AENTR is a FLEX I/O EtherNet/IP adapter with 2 RJ45 ports and a built-in switch, so it can sit in a linear or Device Level Ring (DLR) network. It connects up to 8 FLEX I/O modules at 10/100 Mbps, runs on 24V DC (19.2…31.2V DC) and is rated for 0…55 °C (32…131 °F).
Technical reference
| Product name | Allen-Bradley 1794-AENTR FLEX I/O Dual-Port EtherNet/IP Adapter |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794AENTR |
| Category | PLCs & I/O |
| I/O module capacity (Series A) | Up to 8 FLEX I/O modules. |
| Product type | FLEX I/O dual-port EtherNet/IP adapter |
| Input voltage (Series A) | 24 V DC nominal; 19.2…31.2 V DC, including 5% AC ripple. |
| Ethernet ports (Series A) | 2 RJ45 Category 5 ports. |
| Maximum Flexbus output (Series A) | 640 mA at 5 V DC. |
| Inrush current (Series A) | 18 A for 2 ms. |
| Maximum power dissipation (Series A) | 7.1 W at 19.2 V DC. |
| Communication rate (Series A) | 10/100 Mbps |
| Operating temperature (Series A) | 0…55 °C |
