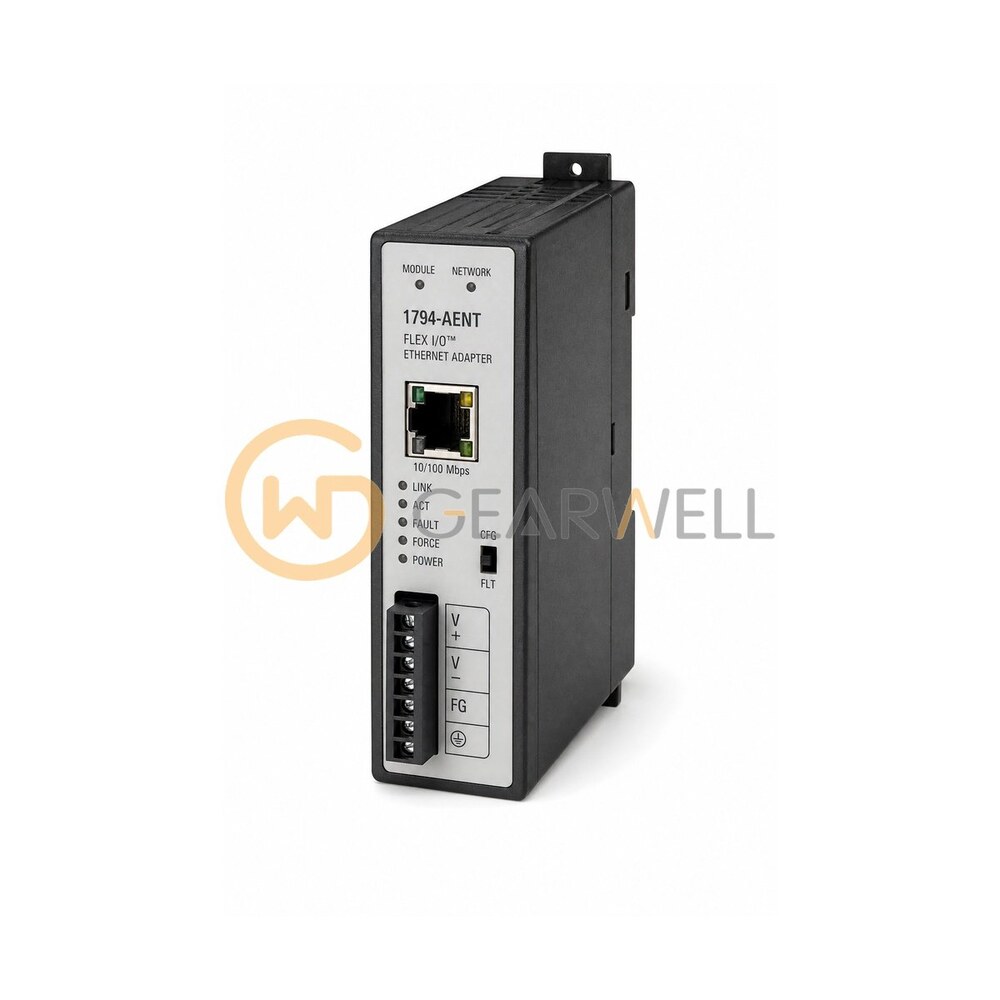

Allen-Bradley 1794-AENT FLEX I/O Single-Port EtherNet/IP Adapter
- Brand
- Allen-Bradley
- Model
- 1794AENT
- GEARWELL SKU
- GWP-000002050
- Category
- Industrial Automation Parts
Key specifications
- I/O module capacity (Series B)
- Up to 8 FLEX I/O modules.
- Nominal supply voltage (Series B)
- 24 V DC
- Product type
- FLEX I/O single-port EtherNet/IP adapter
- Input voltage range (Series B)
- 19.2…31.2 V DC, including 5% AC ripple.
- Ethernet ports (Series B)
- 1 RJ45 port.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-AENT is a FLEX I/O EtherNet/IP adapter that connects up to 8 FLEX I/O modules to EtherNet/IP controllers such as ControlLogix or CompactLogix. It has 1 RJ45 port at 10/100 Mbps, runs on 24V DC (19.2…31.2V DC) and is rated for 0…55 °C (32…131 °F).
Technical reference
| Product name | Allen-Bradley 1794-AENT FLEX I/O Single-Port EtherNet/IP Adapter |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794AENT |
| Category | Industrial Automation Parts |
| I/O module capacity (Series B) | Up to 8 FLEX I/O modules. |
| Nominal supply voltage (Series B) | 24 V DC |
| Product type | FLEX I/O single-port EtherNet/IP adapter |
| Input voltage range (Series B) | 19.2…31.2 V DC, including 5% AC ripple. |
| Ethernet ports (Series B) | 1 RJ45 port. |
| Maximum Flexbus output (Series B) | 640 mA. |
| Manufacturer lifecycle status | End of Life |
| Communication rate (Series B) | 10/100 Mbps |
| Operating temperature (Series B) | 0…55 °C |
| Product description | Single RJ45 EtherNet/IP connection for a FLEX I/O station. |
| Communication protocol | EtherNet/IP |
